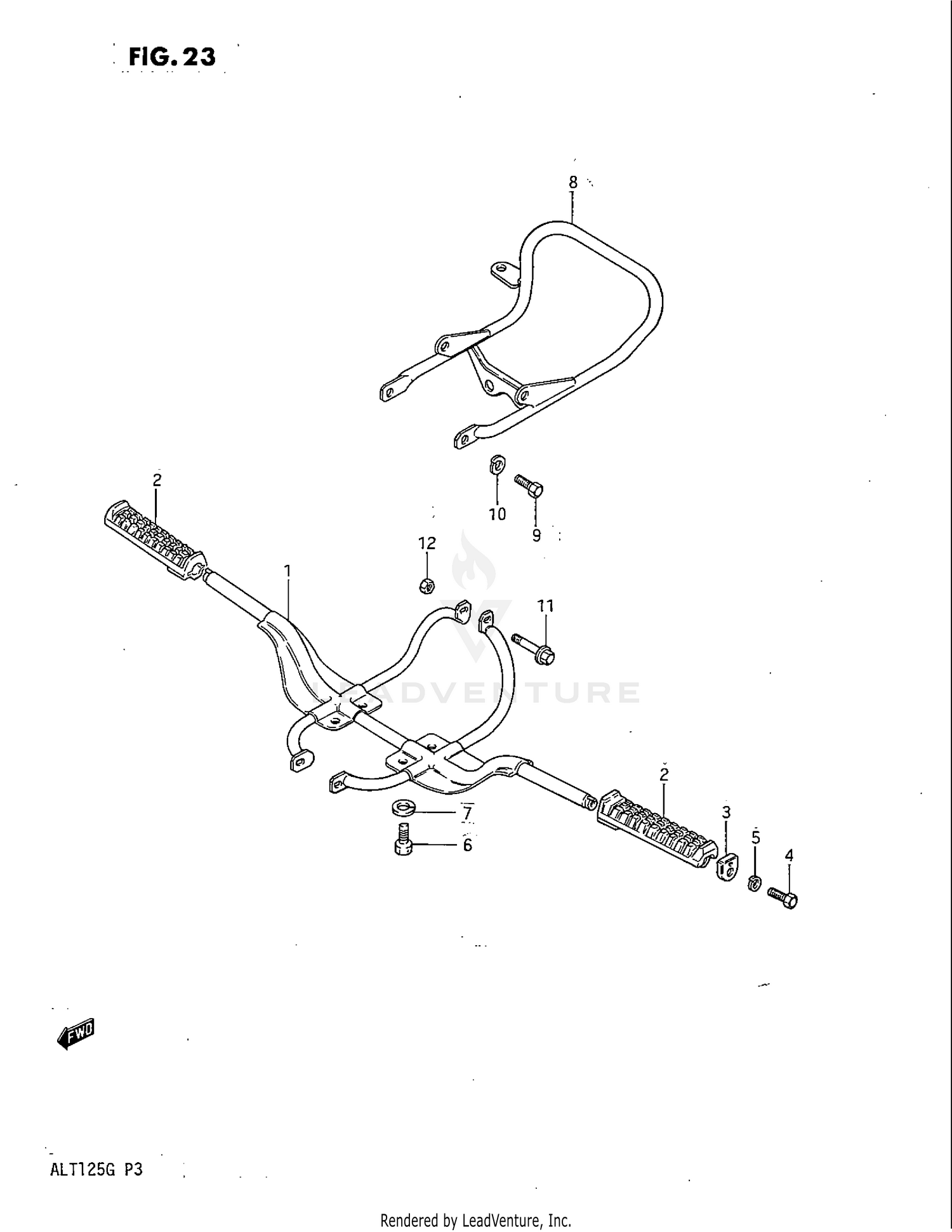

Footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BAR, FRONT FOOTREST
43510-24300
|
$68.65 | ||
|
Unavailable |
|||
|
#2
RUBBER
43551-24400
|
$16.91 | ||
|
Available to order. Add to View Price |
|||
|
#3
STOPPER
43553-18900
|
$3.09 | ||
|
Unavailable |
|||
|
#4
BOLT
01107-08125
Superseded by 01500-0812A
|
$2.87 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
WASHER,LOCK
08321-21084
Superseded by 08321-0108A
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLUG, DRAIN
01107-08166
Superseded by 01500-0816B
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER,LOCK
08321-31086
Superseded by 08321-0108A
|
$2.30 | ||
|
Unavailable |
|||
|
#8
GRIP, REAR
43980-24320
|
$74.01 | ||
|
Unavailable |
|||
|
#9
BOLT, REAR
01107-08208
Superseded by 01500-08207
|
$3.19 | ||
|
Available to order. Add to View Price |
|||
|
#10
.WASHER
08321-21088
Superseded by 08321-01087
|
$2.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
BOLT
01517-08655
Superseded by 01550-0865A
|
$4.48 | ||
|
Available to order. Add to View Price |
|||
|
#12
.NUT
08316-16085
Superseded by 08316-1008B
|
$3.31 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
