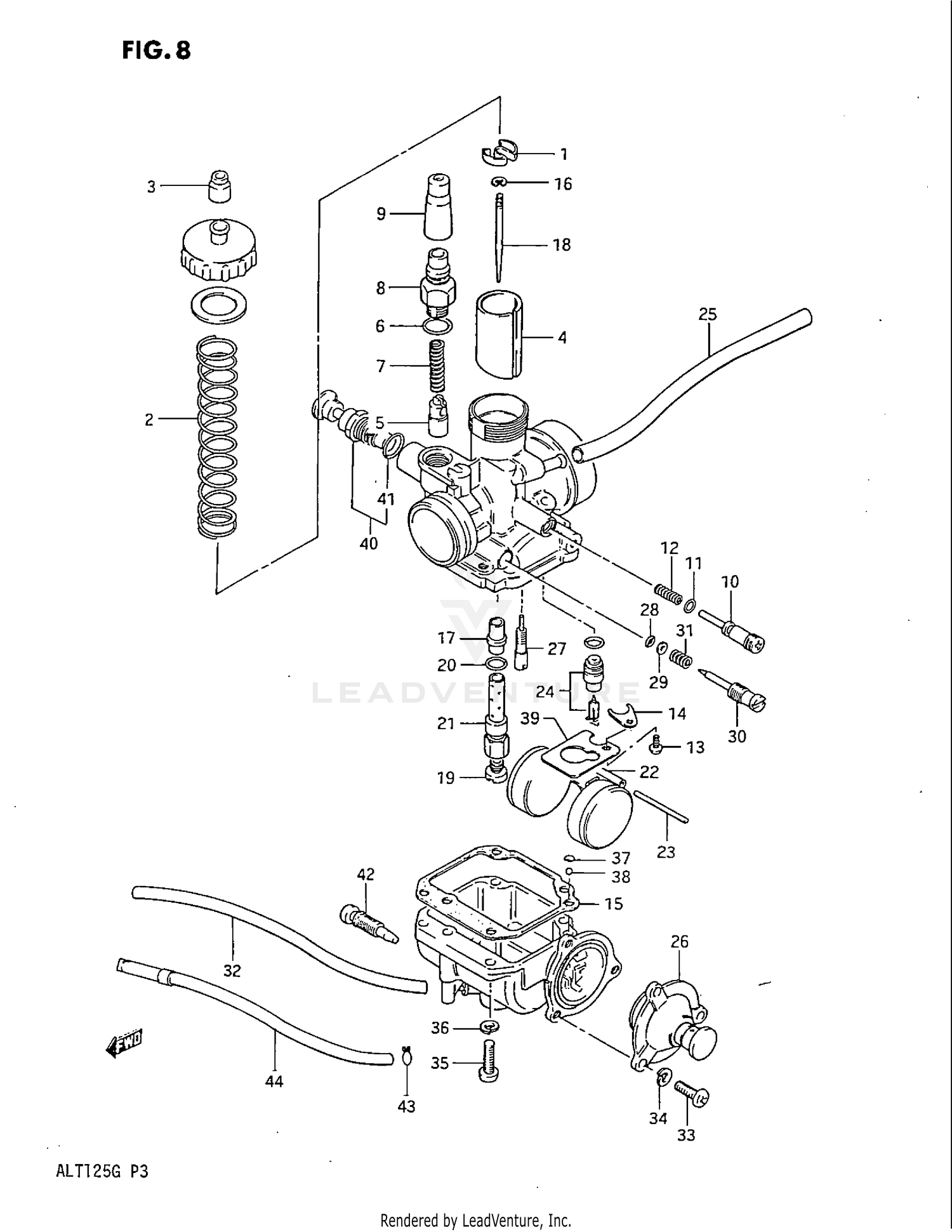

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#
CARBURETOR ASSY
13200-18912
|
$368.72 | ||
|
Available to order. Add to View Price |
|||
|
#1
SPRING, SEAT
13581-36212
|
$8.82 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPRING
13573-18900
Superseded by 13573-18901
|
$10.56 | ||
|
Available to order. Add to View Price |
|||
|
#3
.CAP
13681-04010
Superseded by 13681-04011
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#4
VALVE, THROTTLE
13551-18910
|
$42.07 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLUNGER
13411-18910
|
$26.64 | ||
|
Available to order. Add to View Price |
|||
|
#6
O RING
13278-02330
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPRING
13417-01010
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#8
CAP
13681-33010
|
$12.04 | ||
|
Available to order. Add to View Price |
|||
|
#9
CAP, PLUNGER
13418-02330
|
$12.87 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW
13267-18910
Superseded by 13267-24500
|
$11.92 | ||
|
Available to order. Add to View Price |
|||
|
#11
.O-RING
13295-33010
|
$5.78 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPRING
13268-95110
Superseded by 13268-35010
|
$5.78 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
SCREW
02112-03066
Superseded by 02112-0306B
|
$2.01 | ||
|
Available to order. Add to View Price |
|||
|
#14
.PLATE,NEEDLE VALVE FITTING
13373-46710
|
$6.77 | ||
|
Available to order. Add to View Price |
|||
|
#15
GASKET
13251-18900
|
$9.47 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLIP, NEEDLE
13415-47070
Superseded by 13394-10010
|
$6.17 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
JET, NEEDLE (0-2)
09494-00436
|
$33.03 | ||
|
Available to order. Add to View Price |
|||
|
#18
NEEDLE, JET (4JR45-4)
13383-18910
Superseded by 13383-18A01
|
$21.52 | ||
|
Available to order. Add to View Price |
|||
|
#19
JET, MAIN (100)
09491-20017
|
$12.39 | ||
|
Available to order. Add to View Price |
|||
|
#20
.O RING
13246-43010
Superseded by 13246-43011
|
$5.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
PIPE, BLEEDER
13385-18911
|
$36.38 | ||
|
Available to order. Add to View Price |
|||
|
#22
FLOAT
13252-18900
Superseded by 13250-05230
|
$34.74 | ||
|
Available to order. Add to View Price |
|||
|
#23
.PIN,FLOAT
13254-01010
|
$4.81 | ||
|
Available to order. Add to View Price |
|||
|
#24
VALVE ASSY, NEEDLE
13370-18900
Superseded by 13370-02C00
|
$83.31 | ||
|
Available to order. Add to View Price |
|||
|
#25
HOSE,5X10X600
13683-11420
Superseded by 44421-13ER0
|
$12.80 | ||
|
Available to order. Add to View Price |
|||
|
#26
PRIMING SET
13234-18910
|
$85.38 | ||
|
Available to order. Add to View Price |
|||
|
#27
JET, PILOT (20)
09492-20009
|
$16.15 | ||
|
Available to order. Add to View Price |
|||
|
#28
.O-RING
13278-44080
Superseded by 13295-29901
|
$5.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
.WASHER (14X17)
13277-44080
Superseded by 13291-29900
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#30
SCREW, PILOT (2 7/8)
13269-44200
Superseded by 13279-47070
|
$17.25 | ||
|
Available to order. Add to View Price |
|||
|
#31
.SPRING
13268-47070
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#32
.HOSE (3X7X600)
13684-18900
Superseded by 09355-30001-600
|
$10.94 | ||
|
Available to order. Add to View Price |
|||
|
#33
SCREW
02112-04106
Superseded by 02112-0410A
|
$1.64 | ||
|
Available to order. Add to View Price |
|||
|
#34
LOCK WASHER
08321-21046
Superseded by 08321-0104A
|
$2.32 | ||
|
Available to order. Add to View Price |
|||
|
#35
SCREW
02112-04168
Superseded by 02112-0416A
|
$1.56 | ||
|
Available to order. Add to View Price |
|||
|
#36
LOCK WASHER
08321-21046
Superseded by 08321-0104A
|
$2.32 | ||
|
Unavailable |
|||
|
#37
CLIP
13232-18900
|
$3.54 | ||
|
Available to order. Add to View Price |
|||
|
#38
BALL,VALVE
13596-18900
Superseded by 13322-84000
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#39
PLATE
13259-18900
|
$8.52 | ||
|
Available to order. Add to View Price |
|||
|
#40
PLUNGER ASSY, STARTER
13439-18911
|
$58.63 | ||
|
Available to order. Add to View Price |
|||
|
#41
ORING
13278-02330
|
$3.53 | ||
|
Unavailable |
|||
|
#42
SCREW
13247-18910
Superseded by 13247-24500
|
$14.20 | ||
|
Available to order. Add to View Price |
|||
|
#43
CLIP
13671-05A40
|
$4.93 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#44
HOSE (4.5X8X480) OF
13683-18A00
|
$13.94 | ||
|
Unavailable |
|||
