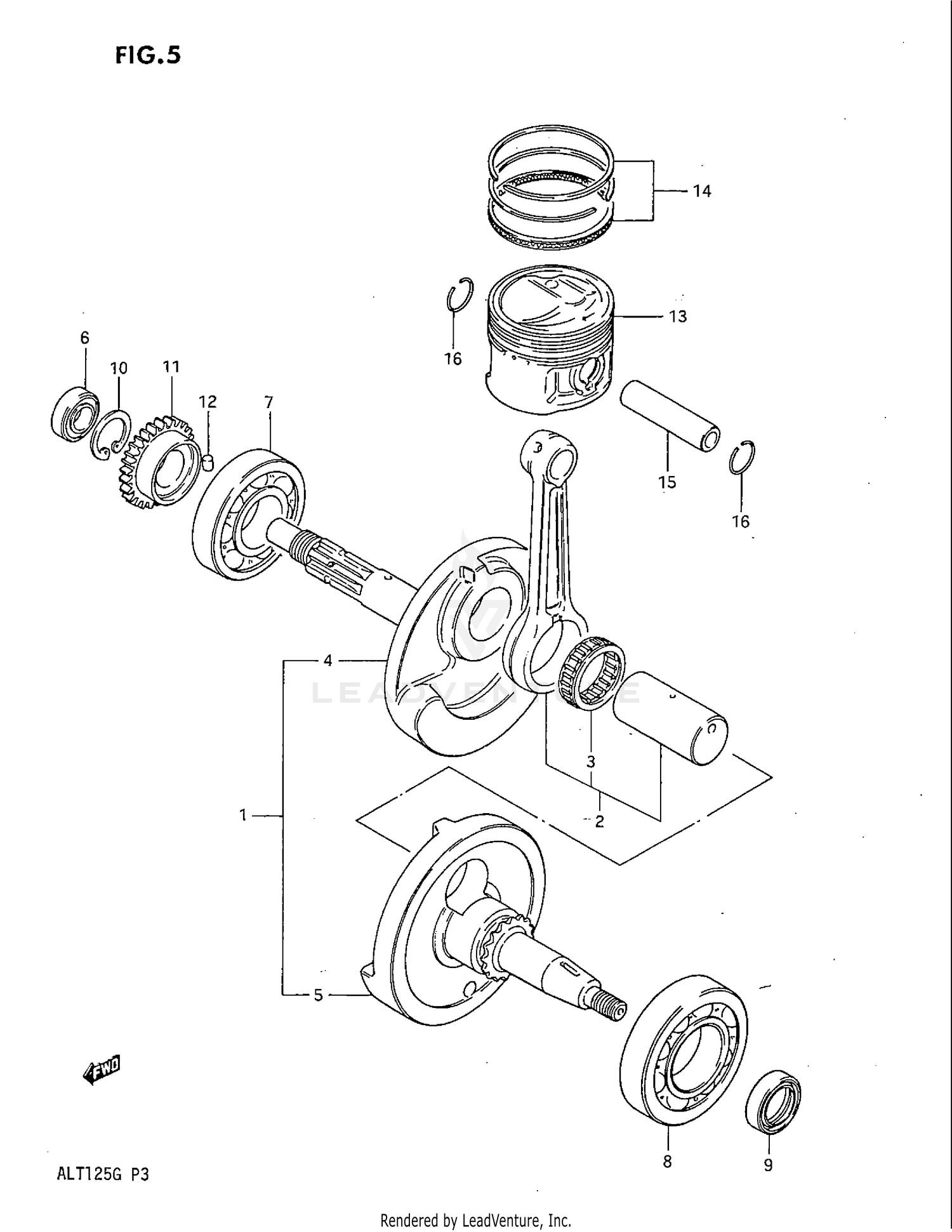

1986 Suzuki ALT125G CRANKSHAFT OEM Parts Diagram

Accessory
+
Body, Fairing & Fender
+
Brakes
+
Drive & Transmission
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
Item MSRP Qty
#1 CRANKSHAFT ASSY
12200-18905
$275.66
Unavailable
#2 ROD SET, CONNECTING
12200-05851
Superseded by 12105-05821
$148.95
Available: Ships in 7-12 days.
Add to View Price
#3 BEARING (28X36X15.8)
09263-28022-0B0
Superseded by 09263-28027-0B0
$36.87
Available: Ships in 7-12 days.
Add to View Price
#4 CRANKSHAFT, RH
12221-18903
$132.78
Unavailable
#5 CRANKSHAFT, LH
12261-18901
$127.14
Unavailable
#6 BEARING, RH
09262-12004
$28.25
Available: Ships in 7-12 days.
Add to View Price
#7 BEARING (28X68X18)
09262-28003
Superseded by 09262-28014
$55.60
Available: Ships in 7-12 days.
Add to View Price
#8 BEARING (35X72X17)
09262-35026
Superseded by 09262-35038
$44.44
Available: Ships in 7-12 days.
Add to View Price
#9 OIL SEAL, LH
09283-20037
$6.67
Available: Ships in 7-12 days.
Add to View Price
#10 CIRCLIP
08331-21289
Superseded by 08331-41289
$2.19
Available: Ships in 7-12 days.
Add to View Price
#11 GEAR, OIL PUMP DRIVE (NT:30)
16321-18901
Superseded by 16321-18902
$29.16
Unavailable
#12 PIN
06211-03052
Superseded by 04221-03059
$1.40
Available: Ships in 7-12 days.
Add to View Price
#13 PISTON
12111-01420
$58.51
Unavailable
#13 PISTON SET,OS 0
12111-01420-050
Superseded by 12103-01870-050
$106.91
Available: Ships in 7-12 days.
Add to View Price
#13 NO DESCRIPTION AVAILABLE
12111-01420-100
Superseded by 12103-01870-100
$74.81
Unavailable
#14 RING SET, PISTON
12140-05211
Superseded by 12140-01410
$36.10
Available: Ships in 7-12 days.
Add to View Price
#14 RING SET, PISTON (OS:0.5)
12140-05211-050
Superseded by 12140-01410-050
$37.32
Available: Ships in 7-12 days.
Add to View Price
#14 RING SET, PISTON (OS:1.0)
12140-05211-100
Superseded by 12140-01410-100
$31.46
Available: Ships in 7-12 days.
Add to View Price
#15 PIN
12151-18902
$11.56
Available: Ships in 7-12 days.
Add to View Price
#16 CIRCLIP
09381-14001
$1.35
In Stock: Ready to ship.
Add to View Price
