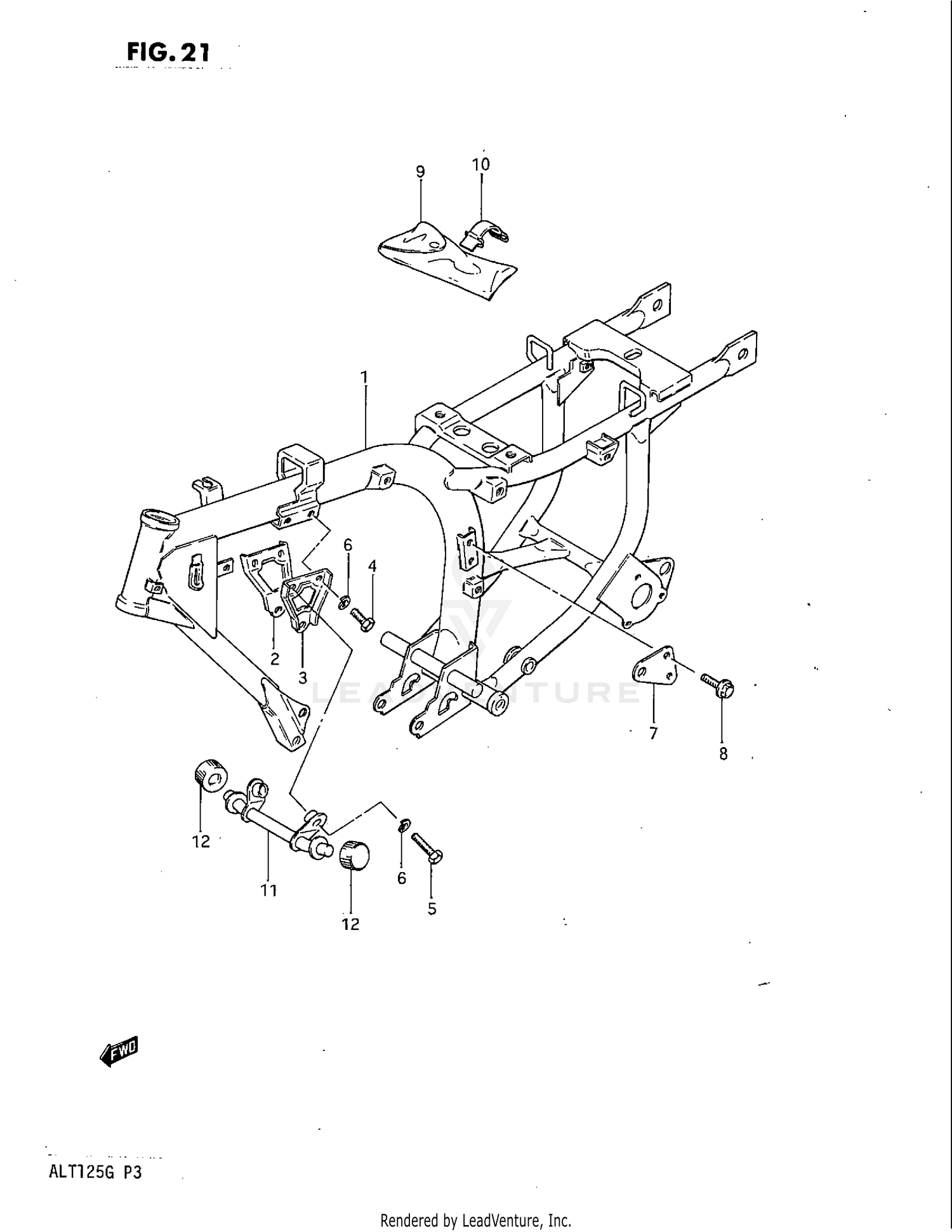

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME (BLACK)
41100-24350-019
|
$288.97 | ||
|
Unavailable |
|||
|
#2
PLATE, MOUNTING FRONT RH
41911-24300
|
$8.61 | ||
|
Unavailable |
|||
|
#3
PLATE, MOUNTING FRONT LH
41912-24300
|
$7.86 | ||
|
Unavailable |
|||
|
#4
BOLT
01107-08126
Superseded by 01500-0812A
|
$2.87 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
BOLT
01107-08206
Superseded by 01500-0820A
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER,LOCK
08321-21086
Superseded by 08321-0108A
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE, MOUNTING REAR
41921-24300
|
$5.93 | ||
|
Unavailable |
|||
|
#8
BOLT (8X12)
01517-08125
Superseded by 01550-0812A
|
$2.88 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
TOOL ASSY
09800-00236
Superseded by 09800-21075
|
$48.37 | ||
|
Available to order. Add to View Price |
|||
|
#10
BAND
09462-00072
Superseded by 09462-00094
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#11
SUPPORT, FRAME COVER
47150-24300
|
$13.06 | ||
|
Unavailable |
|||
|
#12
CUSHION
09329-10014
|
$4.94 | ||
|
Unavailable |
|||
