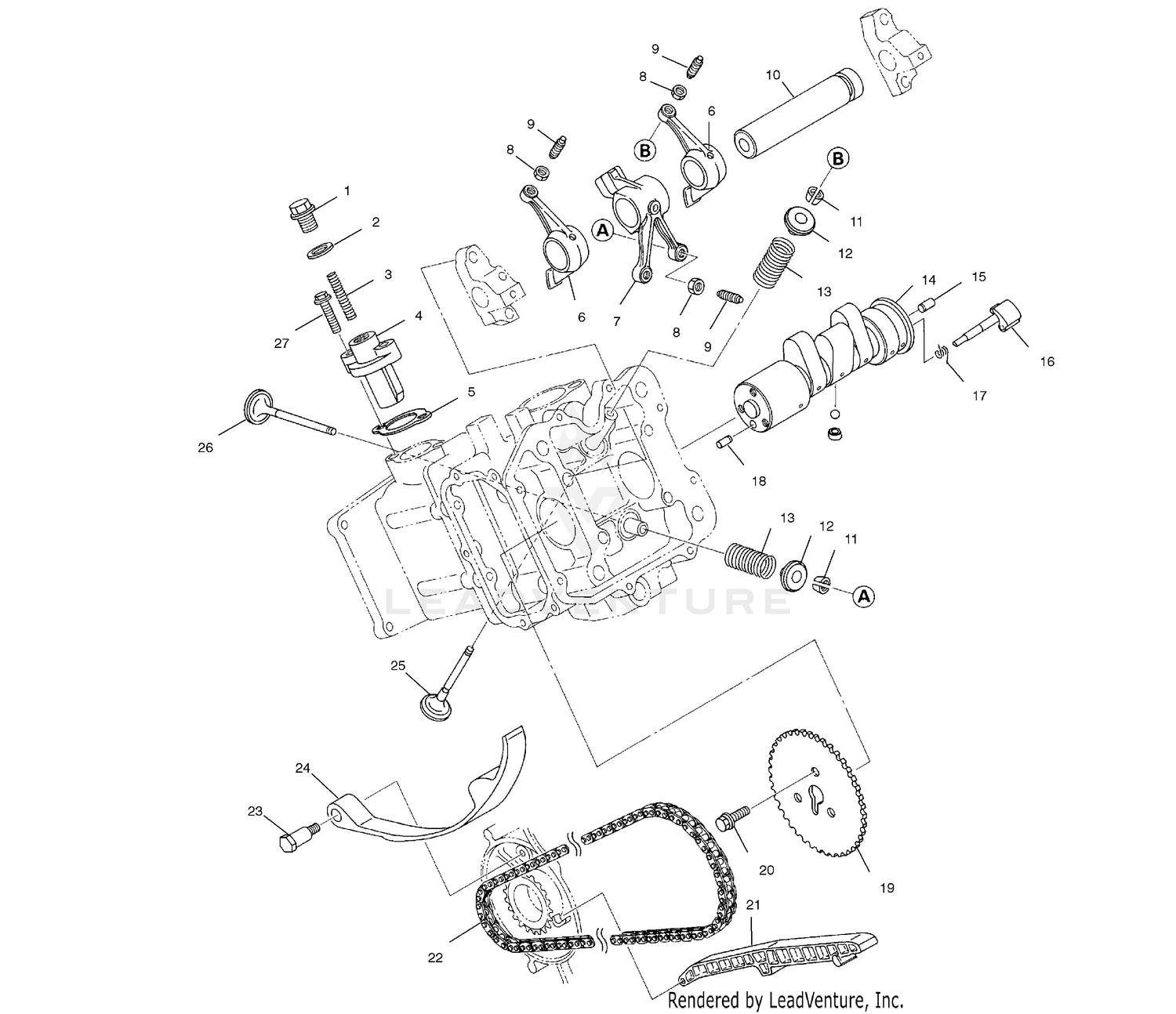

Intake And Exhaust - A01ch50eb (4964466446d006) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PLUG
3084845
|
|||
|
Unavailable |
|||
|
#2
GASKET, PLUG
3084920
|
|||
|
Unavailable |
|||
|
#3
SPRING-TENSIONER
3086814
|
|||
|
Unavailable |
|||
|
#4
TENSIONER,ASM
3086813
|
|||
|
Unavailable |
|||
|
#5
GASKET,TENSIONER
3084922
|
|||
|
Available to order. Add to View Price |
|||
|
#6
ROCKERARM ASM,INTAKE *
3084910
|
$154.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
ROCKERARM ASM,EXHAUST *
3084913
|
$174.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT(10)
3084912
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW, ADJ.
3084911
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHAFT,ROCKER
3084909
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLET,VALVE
3084908
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Retainer, Valve Spring
3087055
Superseded by 3087203
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
Spring, Valve
3084906
Superseded by 3086892
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
CAMSHAFT
3085855
|
$399.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
DOWEL-PIN
3086838
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
LEVER, RELEASE
3085348
|
$129.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPRING,RETURN
3085076
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
PIN,DOWEL
3084899
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPROCKET 2
3084914
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT&WASHER ASM.
3081657
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
GUIDE,CHAIN
3084916
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
CHAIN, TIMING *
3084915
|
$124.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
BOLT,PIVOT,LEVER
3084924
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
LEVER
3084917
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
VALVE,INTAKE
3085349
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
VALVE, EXHAUST
3085412
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, FLANGE
3084874
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
