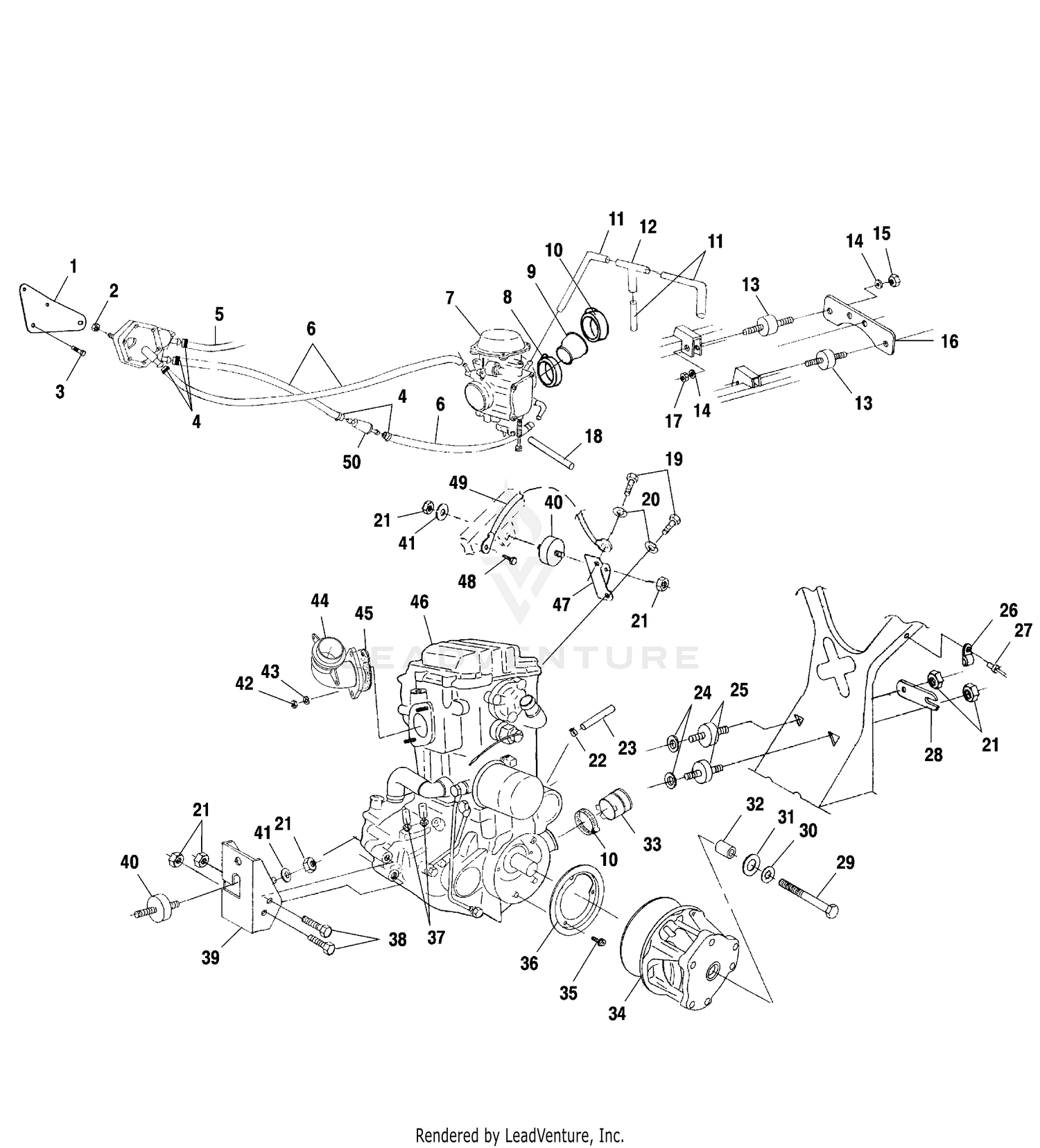

Engine Mounting - A01ch50aa (4964466446a013) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STRAP-FUEL PUMP,MTG,BLK
5243829-067
|
|||
|
Unavailable |
|||
|
#2
NUT-M5X.8,HX NYL-Y
7546601
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
SCREW,10-24X5/8
7517756
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
HOSE CLAMP, RED
7080003
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
HOSE,(.25 IDX1.75"LG.)
5811490
|
|||
|
Unavailable |
|||
|
#6
FUEL LINE,1/4 ID(600 CM.)
8450040-600
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Asm., Carburetor
-------
|
|||
|
Unavailable |
|||
|
#8
CLAMP,BAND,NARROW
7080413
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
BOOT,CARB
5410995
|
|||
|
Unavailable |
|||
|
#9
BOOT-CARB,40MM
5412004
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLAMP, NARROW BAND(10)
7080511
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
|
$89.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
FITTING, TEE
7052075
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
MOUNT, RUBBER
3110032
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER(10)
7552605
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT HEX(10)
7542105
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
STRAP-CARB MNT,BLK
5245055-067
|
|||
|
Unavailable |
|||
|
#17
NUTSERT,HEX(10)
7547069
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
FUEL LINE,1/8 ID,600 CM.
8360009-600
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT(10)
7512315
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
LOCK WASHER(10)
7552901
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
NUT
7547108
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLAMP,HOSE,SPRING
7080694
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
Hose, Breather
-------
|
|||
|
Unavailable |
|||
|
#24
WASHER, FLAT(10)
7555815
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
Isolator
3110046
Superseded by 3022072
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
CLAMP,NYLON,CABLE(10)
7080539
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
RIVET(50)
7621462
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
STRAP,FRAME SUPPORT,BLK
5224658-067
|
$154.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT(10)
7512566
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER-7/16-INT LK-(1222)-Z
7575202
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER-.440X1.25X.190 FL-Y
5210748
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
BUSHING-.437 X.770 X.50
5430261
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOOT,CLUTCH INTAKE
5410421
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
Asm., Drive Clutch, Braking
-------
|
|||
|
Unavailable |
|||
|
#35
Screw and Washer
-------
|
|||
|
Unavailable |
|||
|
#36
Bracket, Retainer, Seal
-------
|
|||
|
Unavailable |
|||
|
#37
CLAMP-HOSE,.875-SS
7080474
|
$8.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#38
BOLT(10)
7515417
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#39
MOUNT,FR.ENGINE,BLK.
5241150-067
|
|||
|
Unavailable |
|||
|
#40
ISOLATOR-3/8-24M/M,60DURO
3110044
Superseded by 3023593
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
WASHER(10)
7555801
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
Nut
-------
|
|||
|
Unavailable |
|||
|
#43
Washer
-------
|
|||
|
Unavailable |
|||
|
#44
Manifold, Black
1261043-029
Superseded by 1261688-489
|
$194.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
Gasket, Exhaust
-------
|
|||
|
Unavailable |
|||
|
#46
ENG.EH50PLE-04
3085822
|
|||
|
Unavailable |
|||
|
#47
Mount, Engine, Top
5241453-067
Superseded by 5241453
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#48
BOLT(10)
7512232
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#49
CABLE,GND-ENGINE
4010132
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
FILTER,SMALL,IN-LINE,(10)
2530009
|
$7.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
