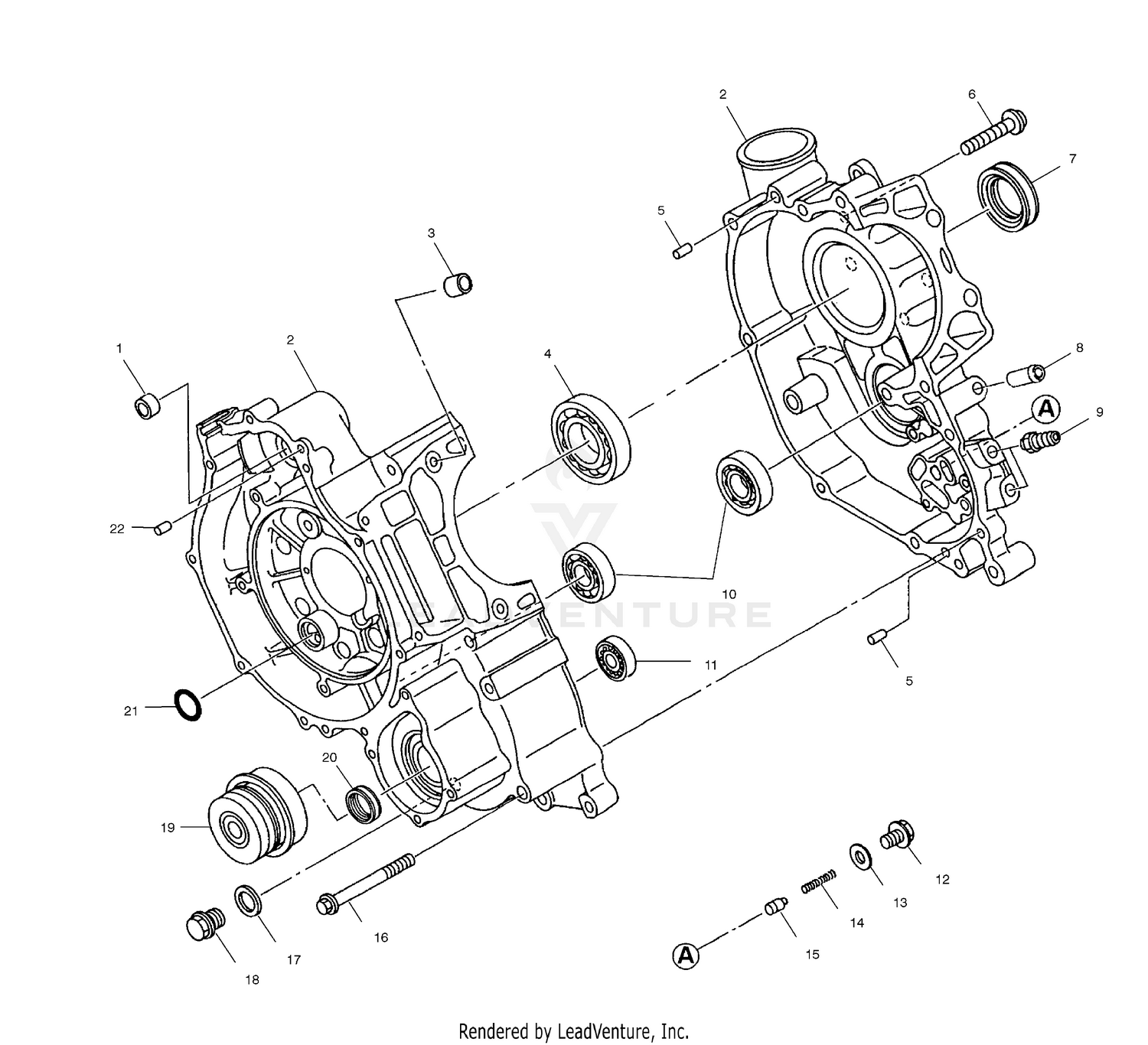

Crankcase - A01ch50eb (4964466446d002) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BUSHING, STARTER
3083669
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Asm., Crankcase
3085808
Superseded by 3089240
|
$1,154.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
Pipe, Knock
3084838
Superseded by 3087266
|
$7.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
BEARING, BALL
3080676
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIN, DOWEL
3084840
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW & WASHER(10)
3084205
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
SEAL, OIL
3084839
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIPE,AIR BREATHER
3085525
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
UNION
3084842
Superseded by 3090305
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BEARING,BALL
3084834
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BEARING,BALL
3084835
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLUG
3084845
|
|||
|
Unavailable |
|||
|
#13
GASKET,(ALUM.)(10)
3084846
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
SPRING
3084844
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
VALVE-ONEWAY
3086810
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT,FLANGE
3084841
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
GASKET
3082956
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
PLUG Substituted by 3086749
3083453
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SEAL,MECHANICAL
3084837
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SEAL, OIL
3084836
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
O-RING
3084847
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
Pin, Dowel
3080103
Superseded by 3086838
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
