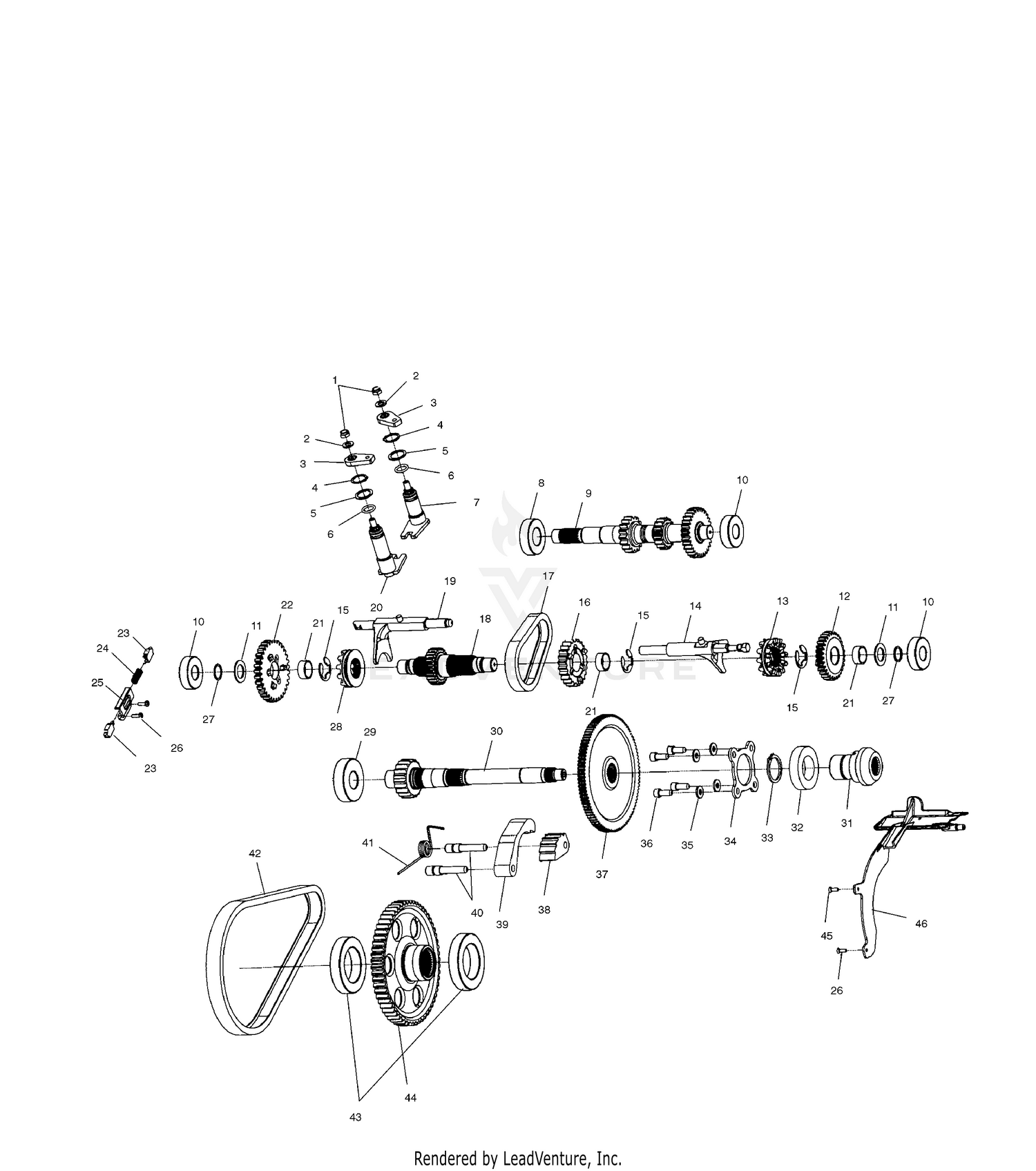

Gearcase (internal Components) - A01ch50aa (4964466446c013) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#
GEARCASE,ASM,SHAFT,PRD,500
1341360
|
|||
|
Unavailable |
|||
|
#1
Nut, Lock
3233055
Superseded by 3233961
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#2
WASHER
3233054
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BELLCRANK
3233153
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
RING,RETAINING BASIC,EXTERNAL 0.75
3233045
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
WASHER
3233040
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
O-RING
3233548
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SHAFT-SHIFT,12-POINT,SPRING
3233774
|
|||
|
Unavailable |
|||
|
#8
BEARING, BALL, 6205 C3 25X52X15
3233019
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SHAFT,INPUT 15T HCR,HLR(DSL)
3233571
|
|||
|
Unavailable |
|||
|
#10
BEARING-BALL,6307 C3,35X80X21
3233018
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER
3233176
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
GEAR,30T,12PT
3233744
|
$269.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
DOG,ENGAGE,HIGH/REV 12PT
3233743
|
|||
|
Unavailable |
|||
|
#14
FORK,SHIFT,H/R
3233664
|
|||
|
Unavailable |
|||
|
#15
RING,RET-RING,EXTERNAL
3233720
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPROCKET,24T
3233719
|
$134.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
CHAIN,SILENT,34P
3233036
|
$84.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
SHAFT,REVERSE,29T
3233742
|
|||
|
Unavailable |
|||
|
#19
SHIFT FORK,LOW,SUB-ASM
3233775
|
$234.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SHAFT-SHIFT
3233661
|
|||
|
Unavailable |
|||
|
#21
BEARING,NDL,SPLIT CAGE
3233718
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
GEAR,36T,12PT
3233745
|
|||
|
Unavailable |
|||
|
#23
PIN,INTERLOCK
3233308
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
SPRING
3233189
|
|||
|
Unavailable |
|||
|
#25
BRACKET,INTERLOCK
3233309
|
$25.79 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW-TAPPING,W/LOCK WASHER
3233747
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
RING,RETAINING
3233177
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
DOG,ENGAGEMENT,LOW
3233732
|
$219.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
BEARING
3233020
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
SHAFT-CENTER DRIVE
3233715
|
|||
|
Unavailable |
|||
|
#31
GEAR,16T,SPIRAL BEVEL,SNORKEL
3233365
|
|||
|
Unavailable |
|||
|
#32
BEARING-BALL 6007 C3 35 X 62 X 14
3233265
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
RING,RETAINING
3233364
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
COVER,CTR.DRIVE BRG.
3233263
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
LOCK WASHER(10)
7552901
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#36
SCREW
3233262
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#37
GEAR,O/P,100T,HCR
3233360
|
$279.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
CAM,CHAIN TENSIONER
3233434
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
SHOE,CHAIN TENSIONER
3233433
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
PIN,DOWEL
3233432
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
SPRING,TORSION
3233431
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
CHAIN,SILENT
3233430
|
$205.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
BEARING-BALL 6010 C3 50 X 80 X 10
3233268
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
SPOCKET-60T,36T SP
3233670
|
|||
|
Unavailable |
|||
|
#45
SCREW
3233282
|
|||
|
Unavailable |
|||
|
#46
DEFLECTOR-OIL
3233669
|
|||
|
Unavailable |
|||
