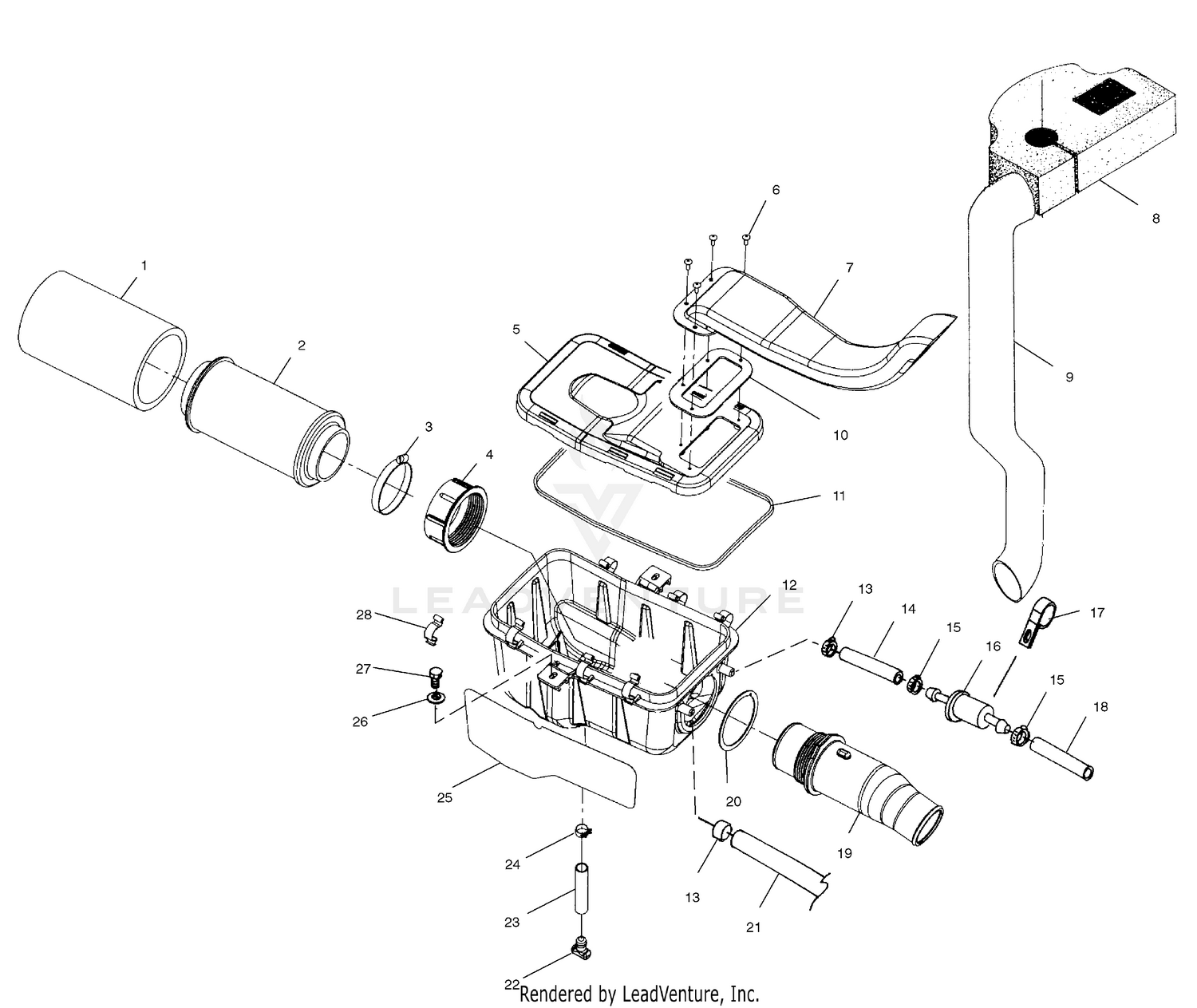

Air Box - A01ch50aa (4964466446b001) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FILTER,PRECLEAN.SLEEVE
5811633
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
FILTER, AIR INTAKE
7080595
Superseded by 7082101
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CLAMP,BAND,NARROW
7080413
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
COLLAR,CARB INLET
5432601
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER,AIRBOX
5432868
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW,SEMS(10)
7517541
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
DUCT, AIR INLET
5433293
Superseded by 5436937
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SEAL,FOAM
5811626
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
DUCT-AIR INLET, CLUTCH
5432086
|
|||
|
Unavailable |
|||
|
#10
GASKET,INTAKE
5411422
|
$8.29 | ||
|
Available to order. Add to View Price |
|||
|
#11
SEAL, COVER
5811482
Superseded by 5812829
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOX,AIR INTAKE,4-STROKE
5433387
|
$169.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLAMP,HOSE
7080699
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
LINE,BREATHER,3/8 ID.
8450073-600
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLAMP,HOSE(10)
7080544
|
|||
|
Unavailable |
|||
|
#16
FILTER,BREATHER,IN LINE
2530029
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
P-Clamp
7080913
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
HOSE,BRTHR,FORMED,500CC
5411858
|
|||
|
Unavailable |
|||
|
#19
DUCT,CARB.INLET
5432858
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
GASKET,CARB.IN.DUCT
5830128
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
LINE, BREATHER
5411668
Superseded by 5413003
|
$40.19 | ||
|
Available to order. Add to View Price |
|||
|
#22
PLUG, TRAP
5432377
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
FUEL LINE
8450059-150
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
CLAMP,HOSE,(10)
7080650
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
FOIL,AIRBOX
5811650
|
|||
|
Unavailable |
|||
|
#26
WASHER(10)
7558301
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
SCREW(10)
7515179
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
CLIP-AIR BOX
5242044
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
