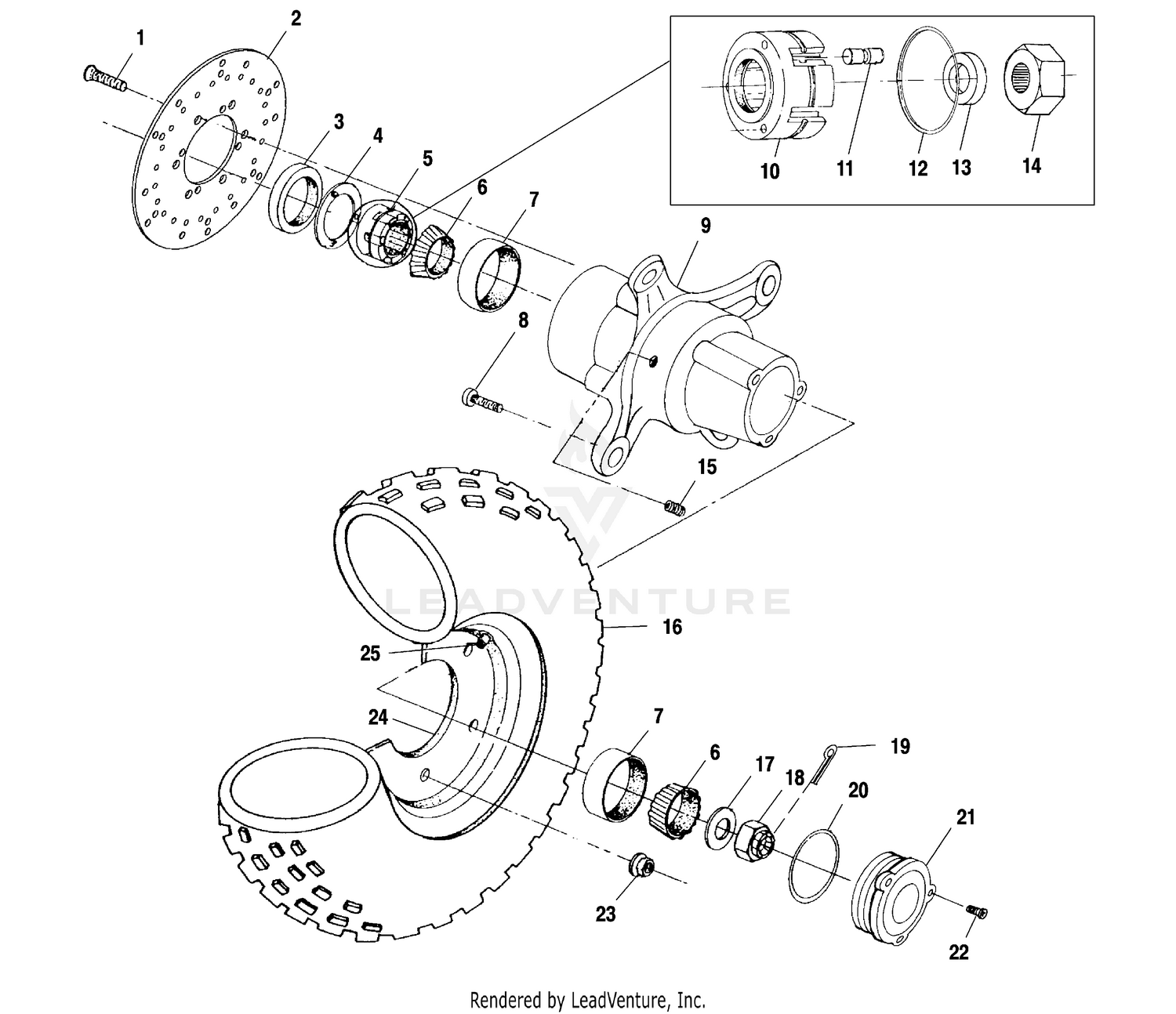

Front Wheel - A01ch50aa (4964466446b006) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BOLT(10)
7512325
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
DISC,BRAKE,8.95 OD,.158
5243676
|
|||
|
Available to order. Add to View Price |
|||
|
#3
SEAL, FR. HUB
3610019
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLATE, ARMATURE
5211148
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLUTCH,FR HUB E/M
1520281
|
$374.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRG,TAPER.ROLL.CONE
3554506
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRG,TAPER,ROLL CUP
3554507
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
STUD(10)
7515523
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
HUB ASM,SHRT(3-LOBE)W/BRG RACE
1520243
|
|||
|
Unavailable |
|||
|
#10
CAGE, ROLL
3250028
|
$284.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
ROLLS
3250010
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPRING,GARTER
3250032
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPACER
1321814
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
CAM
3250030
|
$214.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
PLUG,PIPE
7052045
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
TIRE-25X8-12 NHS,489
5410947
Superseded by 5413994
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER
7556004
|
$8.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
NUT, SLOTTED(10)
7542810
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
COTTER PIN(10)
7661401
|
$0.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
O RING
5410470
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
CAP,HUB,3-LOBE,AWD
5432611
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW(10)
7512027
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
NUT-HXFL-3/8-24 B ZTB P-A
7542459
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
RIM,FRONT,BLK
1520269-067
|
$108.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
Rim, Front, Silver
1520269-117
Superseded by 1520269-486
|
$108.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
VALVE-RIM
1525017
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
