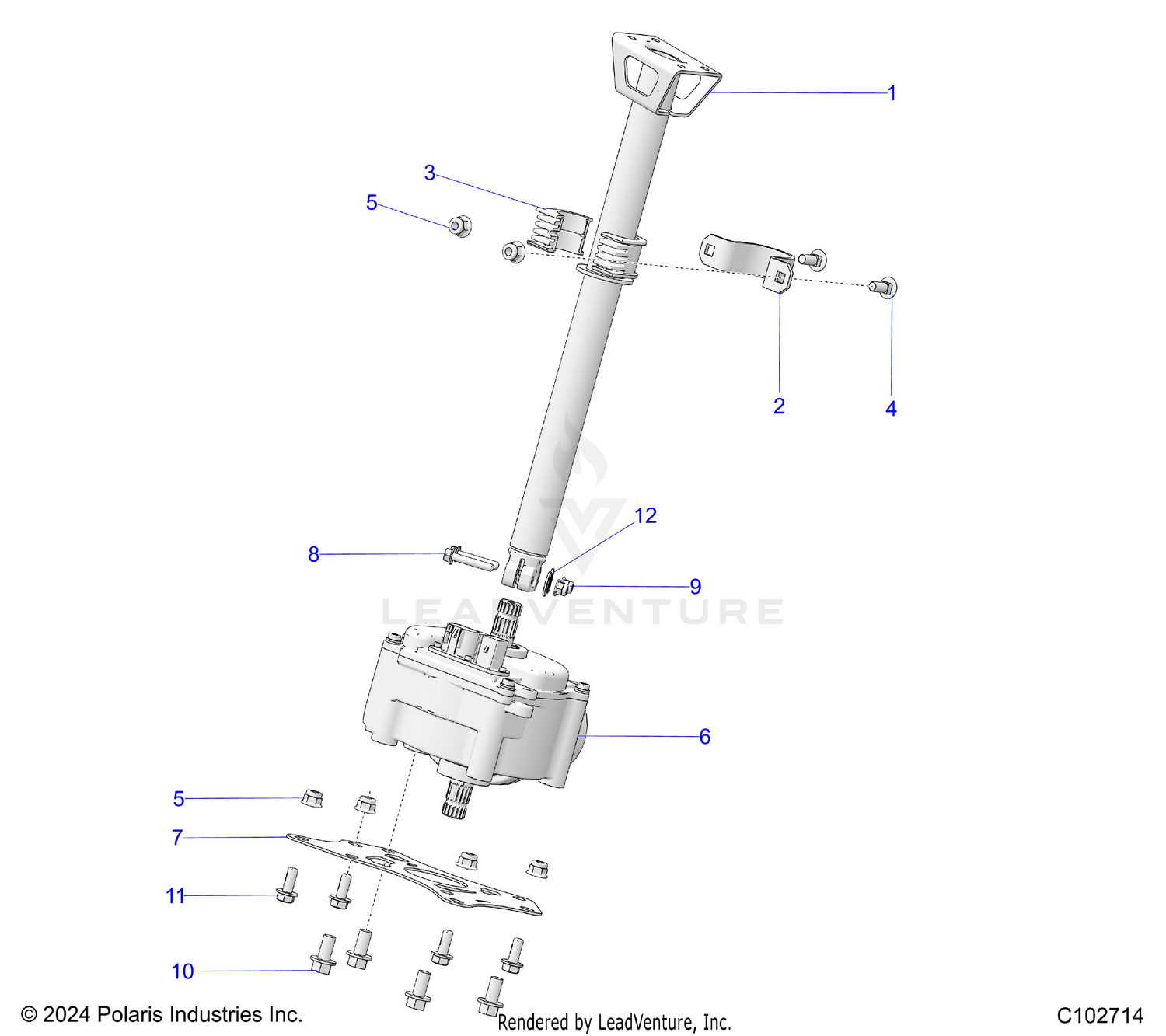

Steering, Steering Post Asm. - A25slz95af (c102714) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WELD-STEERING POST,UPPER,BLK
1824934-329
|
$144.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BRKT-BUSHING STRAP
5262582
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BUSHING, SWAY BAR, 1.25 IN.
5450101
Superseded by 5451257
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT-CARR M8X1.25X25-8.8-ZOD
7518920
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT-HXFL-M8X1.25 8 ZTB NYL
7548028
|
$2.99 | ||
|
Unavailable |
|||
|
#6
ASM-EPS-PGM,SPMN,GEN2.5.2
2418231
|
$2,469.99 | ||
|
Unavailable |
|||
|
#6
ASM-EPS,SPMN,GEN4,250K
2418333
|
$2,594.99 | ||
|
Unavailable |
|||
|
#7
MOUNT, EPS
5266011-329
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCR-M6X1.0X35,HX/FL-Y/D
7521304
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT-HXFL-M6X1.0 8 ZTB NYL
7548027
|
$1.99 | ||
|
Unavailable |
|||
|
#10
BOLT-M10X1.25X20,HXFLG-OLV D
7518558
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT-M8X1.25X20,HXHDFLG,W/PTCH
7518450
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER-.250X.563X.047 WRGHT-Y
7558203
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
