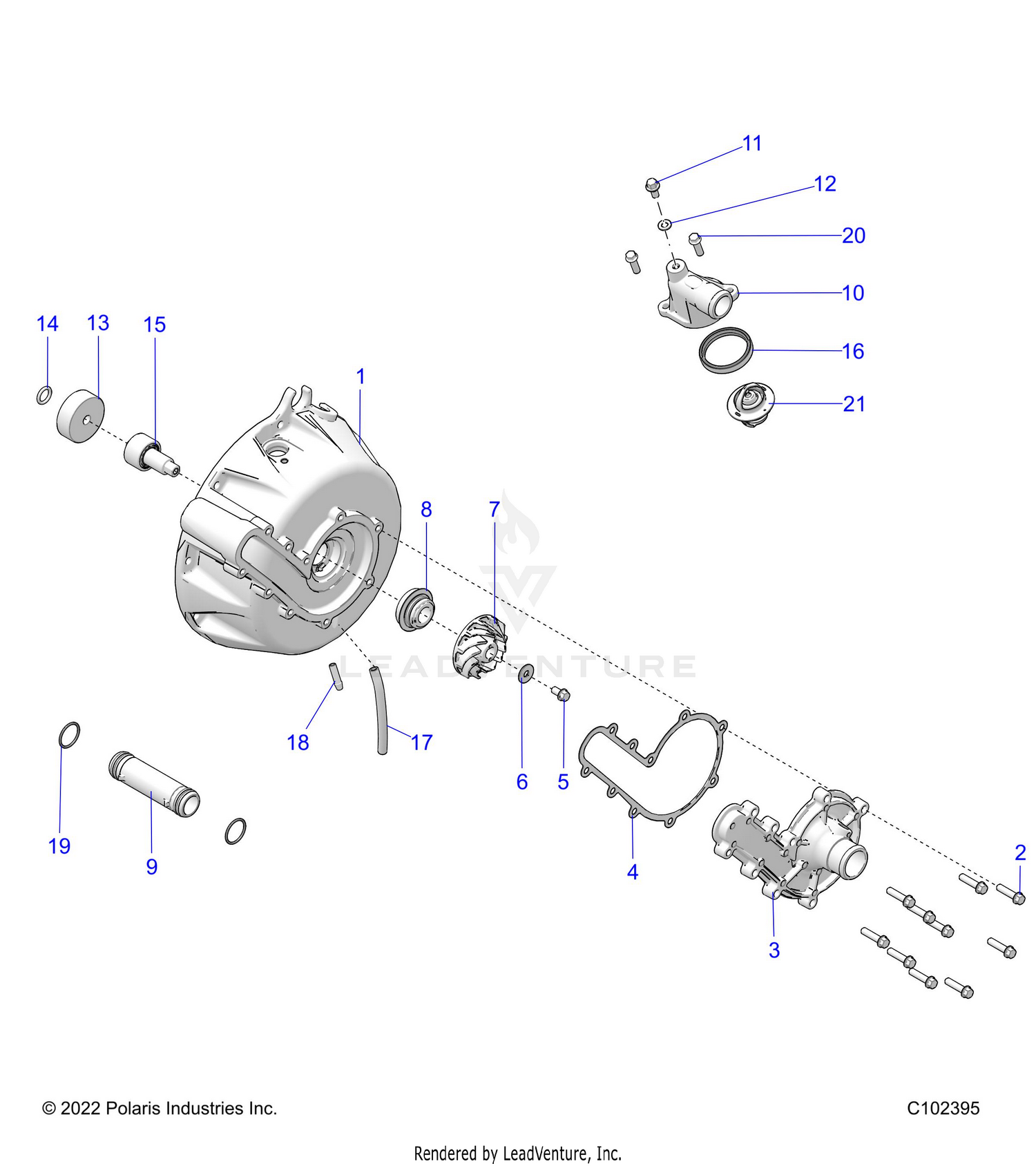

Engine, Cooling System And Water Pump - A25slz95af (c102395) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ASM-STATOR CVR W/WATERPUMP
1209135
|
$999.99 | ||
|
Unavailable |
|||
|
#1
COVER-STATOR W/WATERPMP
5144073
|
$89.99 | ||
|
Unavailable |
|||
|
#2
SCR-M6X1.0X25-HXHD CLR COAT
7527861
|
$2.99 | ||
|
Unavailable |
|||
|
#3
KIT-WATERPUMP COVER W/FTNG
2204955
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER-WATERPMP W/BP
5144074
|
$84.99 | ||
|
Unavailable |
|||
|
#4
GASKET, COVER
5412954
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCR-M6X1.0X12-HXHD
7527860
|
$2.99 | ||
|
Unavailable |
|||
|
#6
WASHER-FLAT M6
7558730
|
$4.99 | ||
|
Unavailable |
|||
|
#7
IMPELLER-WATERPMP,CAST,60MM
5639192
|
$59.99 | ||
|
Unavailable |
|||
|
#8
SEAL
3610136
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
FITTING-COOLANT 3/8
7055563
|
$11.99 | ||
|
Unavailable |
|||
|
#9
TUBE, WATER TRANSFER
5453707
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
ASM, THERMOSTAT COVER
1206006
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCR-M6X1.0X13,SL/HX/FL-Z,BLEED
7521072
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER-FLAT,6.15X12X1MM-AL
7557179
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
COUPLER, SPLINE INT, WP BEARING
5140079
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
O-RING-12.37X2.62,VITON
5417753
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BEARING-W/SHAFT,WATERPUMP OPC
3514921
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SEAL-THERMOSTAT
5413948
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
TUBING-NYLON 5MMX100MM BLK
8360209
|
$17.99 | ||
|
Unavailable |
|||
|
#18
FITTING-6 MM,BRASS
7055562
|
$16.99 | ||
|
Unavailable |
|||
|
#19
O-RING,.864X1.00X.07
5412955
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCR-M6X1.0X10,SHCS
7527859
|
$5.99 | ||
|
Unavailable |
|||
|
#21
THERMOSTAT
7052561
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
