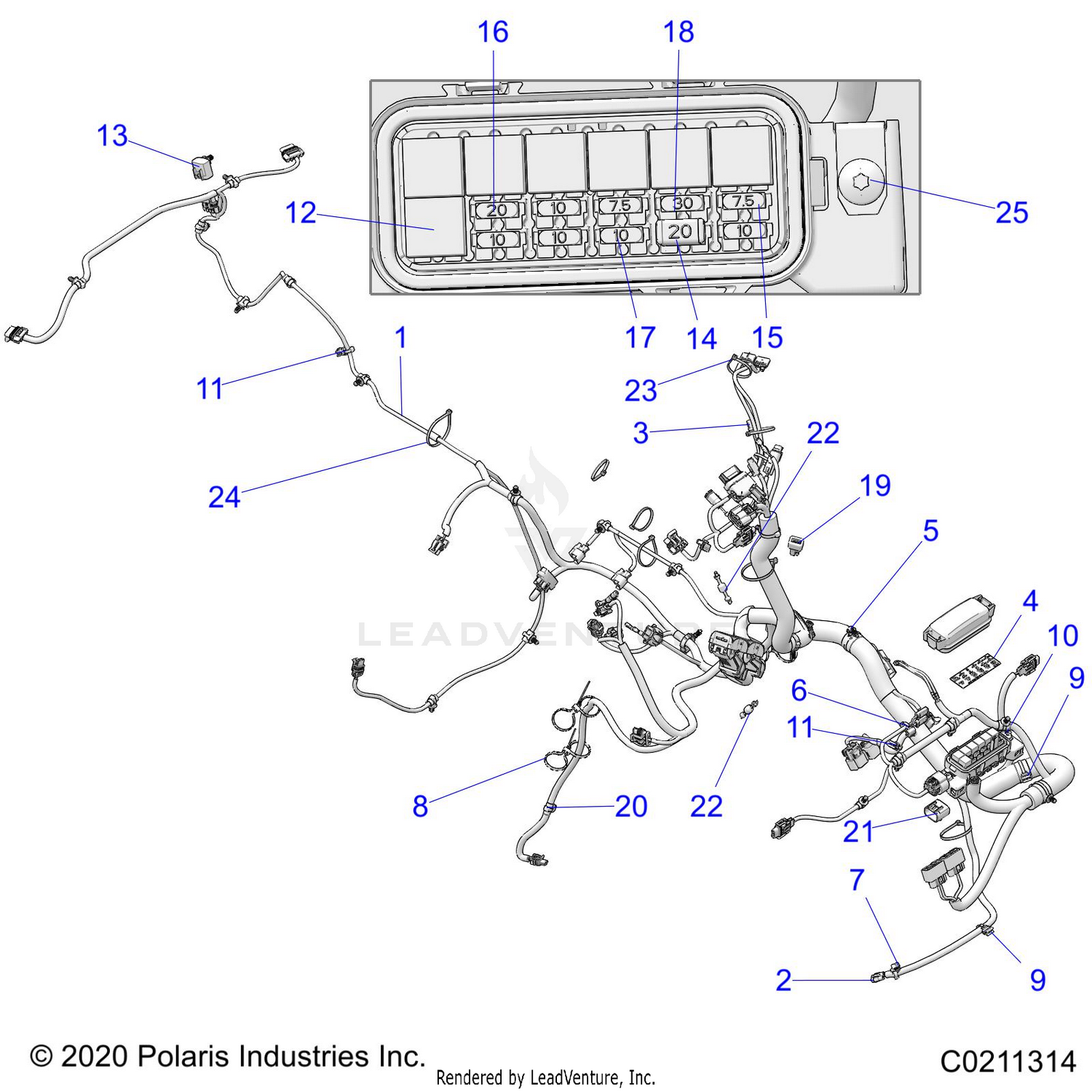

Electrical, Harness - A25slz95af (c0211314) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HARNESS-MAIN,SPM XP ETC,55
2416129
|
$1,264.99 | ||
|
Unavailable |
|||
|
#2
CONNECTOR-CAP, WINCH CONTACTOR
4014891
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CONNECTOR-CAP, WINCH SWITCH
4014890
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
LABEL, FUSE BOX
7300362
|
|||
|
Available to order. Add to View Price |
|||
|
#5
CLIP-FIR TREE,12.5MM OFF,90DEG
7082406
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
CLIP-EDGE, 1-3mm THICKNESS
7082403
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLIP-EDGE, 1-3mm THICKNESS
7082402
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
CABLE-TIE,DIA6-38MM,DUAL-LOOP
7081916
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLIP-EDGE,HARNESS
7081890
|
$12.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
CLIP-EDGE,DIA5-50MM,OUT-SER
7081824
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLIP-EDGE,1-3MM,6-45MM,SERT.
7081808
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLIP-EDGE,1-3MM THICKNESS
7082428
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
RELAY-SPST,12V,20A,EPXY,HFA
4016819
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
COVER, TAILLIGHT, LED W/CLIP
4016259
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BREAKER-CIRCUIT,20 AMP
4011372
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
FUSE - 7.5, MINI BLADE (BROWN)
4011068
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
FUSE, 20 MINI BLADE 58V
2434017
Superseded by 4012811
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
FUSE-IGNITION,10 AMP
2434016
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
FUSE-MAIN,30 AMP
2434015
|
$9.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
DIODE - 6 AMP, 1/4, 3/16 TERM
2410000
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLIP FIR-TREE,DIA6-33MM
7081496
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
COVER-DIAGNOSTIC,W/CLIP
4012170
|
$10.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
DIODE - 6 AMP, 1/4, 3/16 TERM
2411035
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
CABLE-TIE,10-102MM,WEATH.-RES.
7080761
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW-M6X1X14,PN/TX,TRI-LOB
7518914
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
