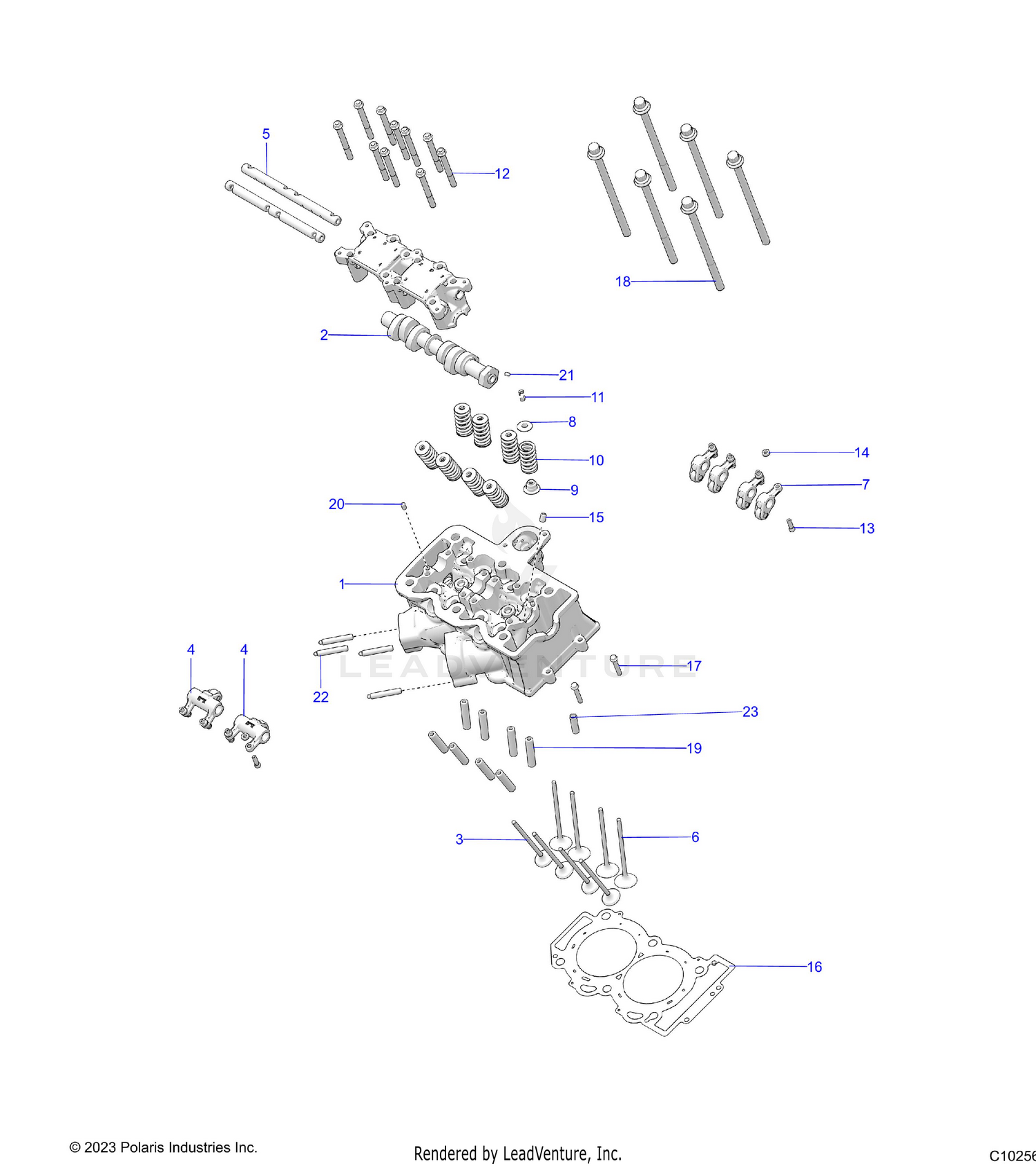

Engine, Cylinder Head, Cam And Valves - A25slz95af (c102560) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ASM., CYLINDER HEAD
3022549
|
$1,169.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
ASM., CYLINDER HEAD
3024638
|
$1,169.99 | ||
|
Unavailable |
|||
|
#1
PLUG
7052532
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAMSHAFT-850/1000XP
3024064
|
$489.99 | ||
|
Unavailable |
|||
|
#3
VALVE-EXHAUST,28MM SUH35
3022589
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
ASM-ROCKER ARM,EXH,IC
3024037
|
$169.99 | ||
|
Unavailable |
|||
|
#4
ASM-ROCKER ARM,EXH,IC
3024616
|
|||
|
Unavailable |
|||
|
#5
ASM-ROCKER SHAFT
3024201
|
$84.99 | ||
|
Unavailable |
|||
|
#6
VALVE-INTAKE,33MM
3022203
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
ASM-ROCKER ARM,INT,IC
3024036
|
$119.99 | ||
|
Unavailable |
|||
|
#7
ASM-ROCKER ARM,INT,IC
3024615
|
|||
|
Unavailable |
|||
|
#8
RETAINER, VALVE
3021865
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Seal, Valve
3610165
|
$9.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
SPRING, VALVE
7045875
|
$34.99 | ||
|
Unavailable |
|||
|
#11
KEEPER-VALVE
7081470
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW
7519293
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW, LASH ADJUSTER, SWIVEL
5142377
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, LOCK
-------
|
|||
|
Unavailable |
|||
|
#15
JET-OIL,OIL PUMP
2540080
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
GASKET-CYLINDER HEAD 1000XP
5813933
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCR-HXFL-M6X1.0X35 8.8 ZY3
7518578
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
Bolt, Head
7519219
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
GUIDE, VALVE
3022348
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
PIN-DOWEL,M6X10
5137624
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
PIN, DOWEL
-------
|
|||
|
Unavailable |
|||
|
#22
STUD-M8X1.25X45
7520724
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
FITTING, COOLANT
7052511
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
