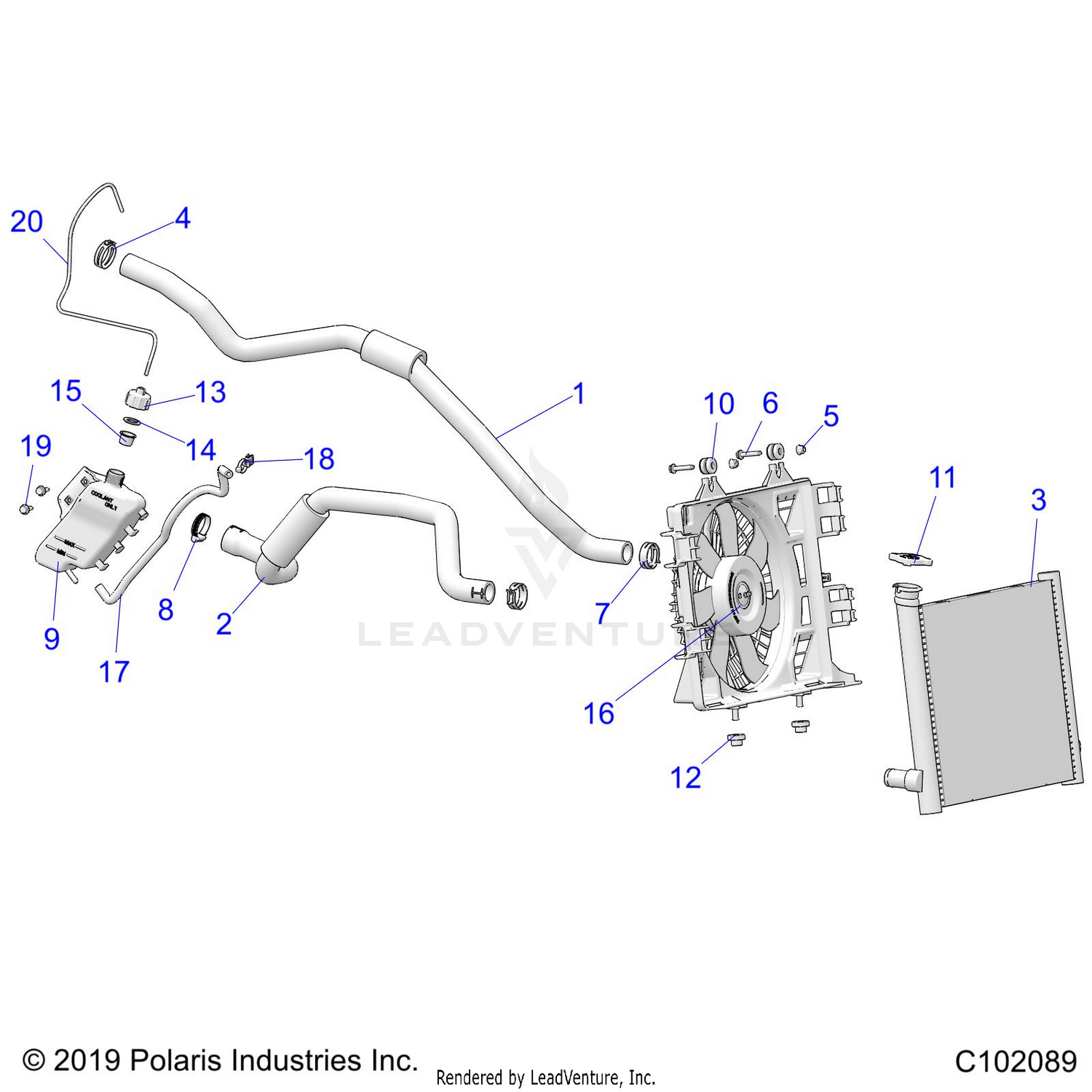

Engine, Cooling System - A25slz95af (c102089) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ASM-COOLANT,SUPPLY
1244737
|
$79.99 | ||
|
Unavailable |
|||
|
#1
HOSE-RADIATOR,ENGINE IN,25MM
-------
|
|||
|
Unavailable |
|||
|
#1
FOAM-COOLANT,85MM
5814895-85
|
$2.99 | ||
|
Unavailable |
|||
|
#2
ASM-COOLANT,RETURN
1241399
|
$94.99 | ||
|
Unavailable |
|||
|
#2
HOSE-RADIATOR,ENGINE OUT,25MM
5416686
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
FOAM-COOLANT,105MM
5814895-105
|
$3.49 | ||
|
Unavailable |
|||
|
#3
RADIATOR
1241264
|
$444.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
ASM-RADIATOR,WL,LED
1241448
|
$509.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRINGBAND-CLAMP 35/12,BLK
7080844
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT-HXFL-M6X1.0 8 ZTB NYL
7548027
|
$1.99 | ||
|
Unavailable |
|||
|
#6
SCR-HXFL-M6X1.0X30,RIE,DGPNT
7519202
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPRINGBAND-CLAMP 32/12,BROWN
7080843
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
CLAMP-HOSE(WORM DR)25-40MM
7081192
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
ASM.,BOTTLE,COOLANT RECOVERY
1241323
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOTTLE, COLLANT RECOVERY
5455427
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
ASM., GROMMET AND INSERT
5413509
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
CAP, PRESSURE
1240466
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
GROMMET, RADIATOR MOUNT, LOWER
5413510
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
CAP, OVER FLOW BOTTLE, W/FITTING
5437635
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
GASKET-OVERFLOW CAP
5810279
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
PLUG-CAP 9X(GREEN) FLEX TEMP
5433774
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
FAN-12",RING,SHROUD,LED
2415280
|
$324.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
LINE, FUEL
8450120-600
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLIP-EDGE,1-3MM,6-45MM,SERT.
7081808
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLIP-EDGE,1-3MM THICKNESS
7082428
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCR-M6X1.0X20,HXHD,FLG,TDFM,BK
7518529
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
HOSE-POLY,CLEAR,3/16 OD,1/8 ID
8360009-52
|
$11.99 | ||
|
Unavailable |
|||
