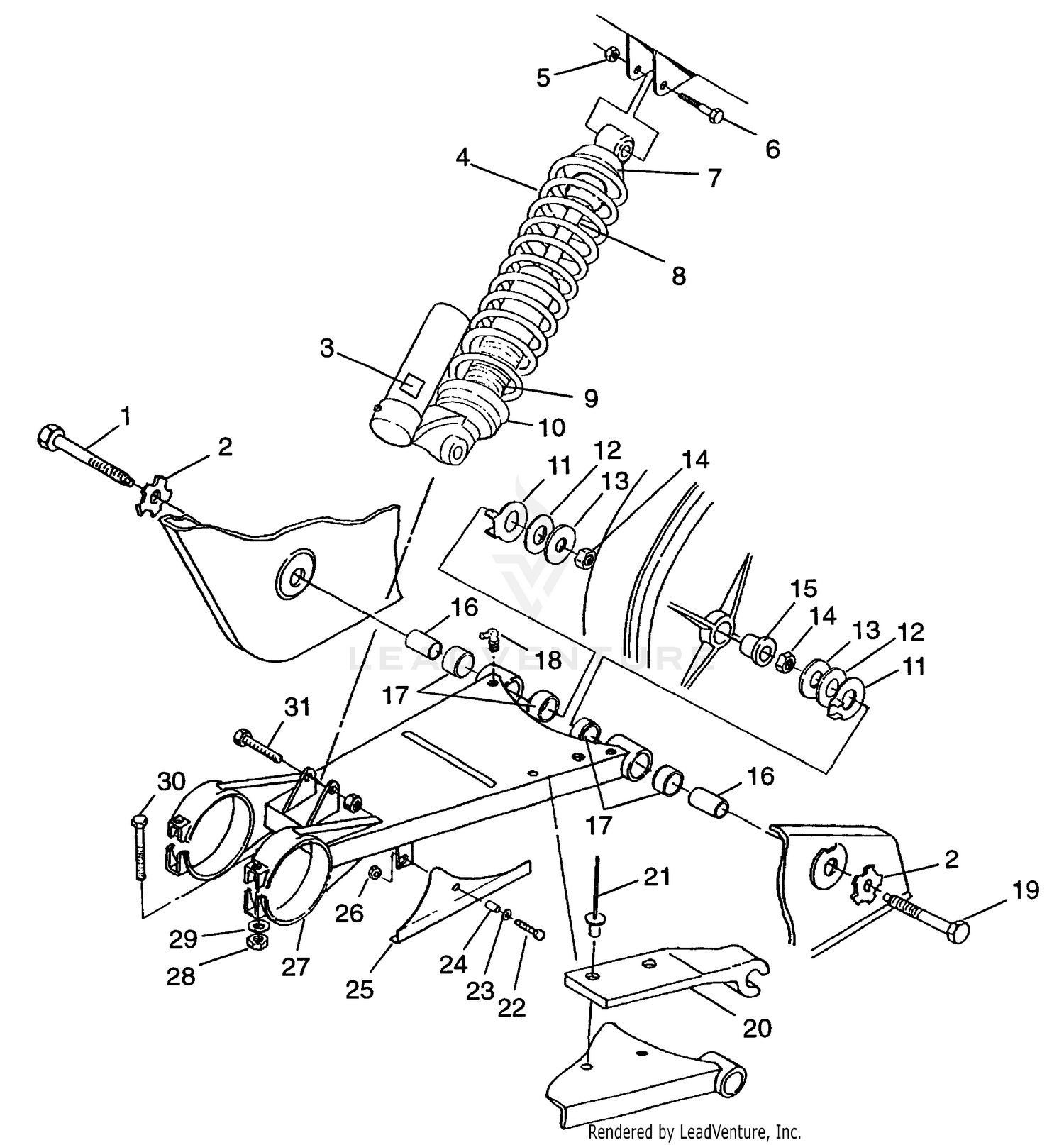

Swing Arm/shock Mounting Scrambler W957840 (4927252725b014) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BOLT, SHOULDER
7512701
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PLATE,BOLT LOCK
5220958
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
DECAL,WARN.(FOX ATV SHOCK)
7075343
|
|||
|
Available to order. Add to View Price |
|||
|
#4
DESC NOT_AVAILABLE
7041389-171
|
|||
|
Unavailable |
|||
|
#5
NUT-LOCK(10)
7542439
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
BOLT(10)
7515415
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
RETAINER-SPRING,STEEL
5222118
Superseded by 5251753
|
$12.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
SHOCK,GAS,RESERVOIR
7041383
|
|||
|
Unavailable |
|||
|
#9
RETAINER,SPRING,BODY,THREADED
1500063
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
RING,SPRING PRELOAD ADJ.
5431734
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BUSHING
5240952
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BUSHING-THRUST
5431977
Superseded by 5433414
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER(10)
7555911
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
NUT, LOCK(10)
7542602
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
Bushing, Pivot
-------
|
|||
|
Unavailable |
|||
|
#16
BUSHING,SWING ARM
5020793
|
$10.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
BUSHING-SWINGARM
5431972
Superseded by 5433417
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
FITTING,LUBE,45 DEG.(10)
7080586
|
|||
|
Unavailable |
|||
|
#19
BOLT, SHOULDER
7512702
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
GUIDE, CHAIN
5431310
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
RIVET(50)
7621433
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW-FLANGED(10)
7515304
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
WASHER-.344X.688X.063 FL-Y
7558402
|
$0.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
BUSHING
5332828
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
GUARD, CHAIN
5431968
Superseded by 5430776
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT LOCK(10)
7542321
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
ARM,SWING,BLK. Substituted by 1580088
1580087-067
|
|||
|
Unavailable |
|||
|
#28
NUT, LOCK,(10)
7542503
|
$12.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
WASHER(10)
7555883
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
BOLT(10)
7512576
|
$9.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
BOLT(10)
7515438
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
