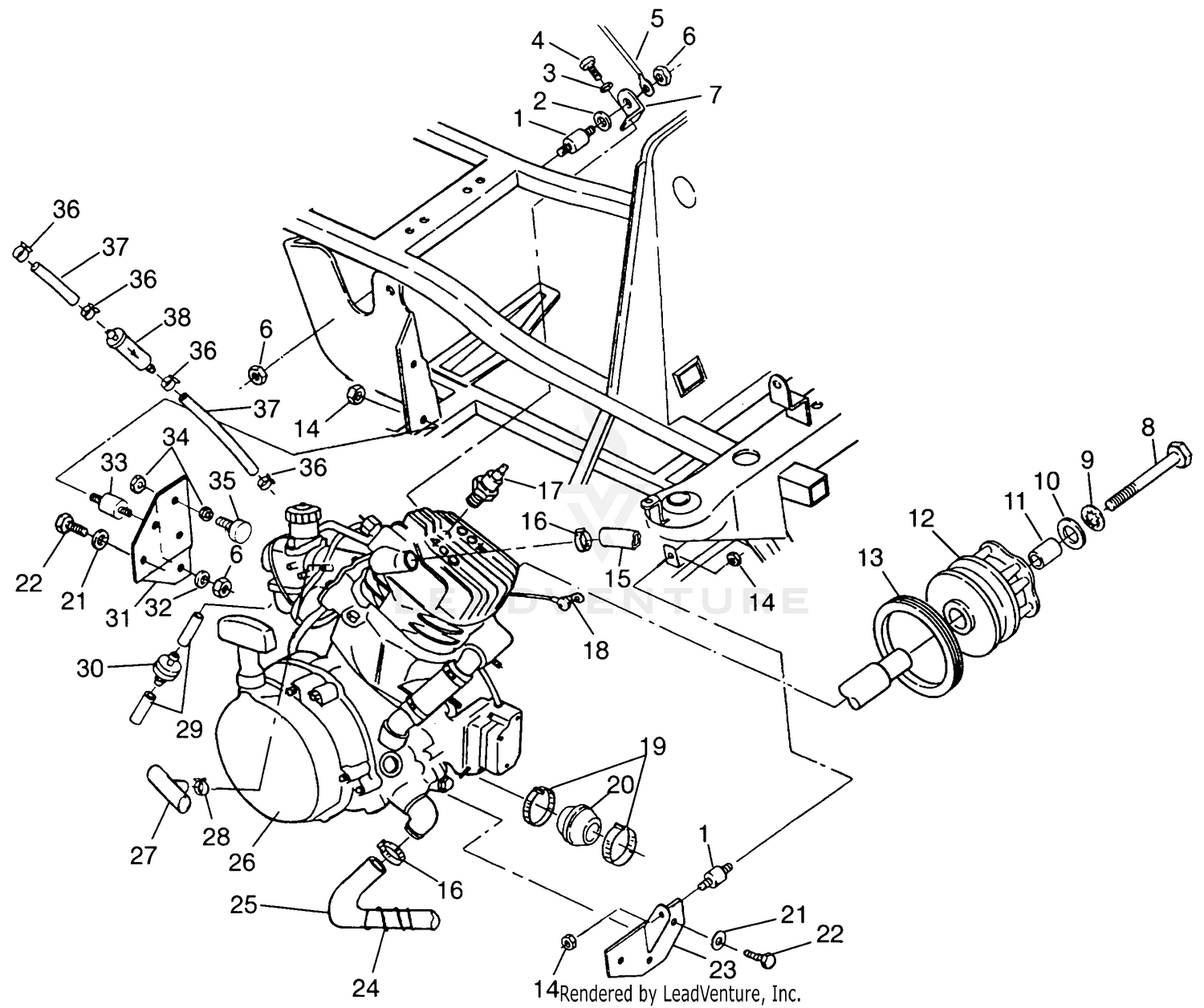

Engine Mounting Scrambler W957840 (4927252725a009) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ISOLATOR-3/8-24M/M,65DURO
3110038
Superseded by 3022069
|
$30.79 | ||
|
Available to order. Add to View Price |
|||
|
#2
INSULATOR,MOTOR MT.
5430802
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
LOCK WASHER(10)
7552901
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
BOLT(10)
7515321
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
CABLE,GROUND/ENG.
4010067
|
|||
|
Unavailable |
|||
|
#6
NUT LOCK(10)
7542411
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
MOUNT,ENG.TOP
5222415-067
|
|||
|
Unavailable |
|||
|
#8
BOLT(10)
7512566
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER-7/16-INT LK-(1222)-Z
7575202
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER-.440X1.25X.190 FL-Y
5210748
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
BUSHING-.437 X.770 X.50
5430261
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Asm., Drive Clutch
-------
|
|||
|
Unavailable |
|||
|
#13
Seal, Cover Case
-------
|
|||
|
Unavailable |
|||
|
#14
NUT LOCK(10)
7542403
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
HOSE,ENG,UPPER
5410570
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLAMP-HOSE Substituted by 7080547
7080225
|
|||
|
Unavailable |
|||
|
#17
SPARKPLUG (10)
3070156
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
CABLE,SOLENOID/STARTER
4010064
|
|||
|
Available to order. Add to View Price |
|||
|
#19
CLAMP, NARROW BAND(10)
7080511
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOOT,CLUTCH INTAKE(400)
5410883
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, SPRING LOCK
7553001
Superseded by 7552603
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW(10)
7512490
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
MOUNT,ENGINE
1040231-067
|
|||
|
Available to order. Add to View Price |
|||
|
#24
SPRING,HOSE RETAINER
7041079
|
$6.19 | ||
|
Available to order. Add to View Price |
|||
|
#25
HOSE,LOWER ENGINE
5410572
Superseded by 5411173
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
ENG.(S.B.)EC38PL-SB [No Longer Available]
3084718
|
|||
|
Unavailable |
|||
|
#27
BOTTLE,BOOST
5431982
|
$19.59 | ||
|
Available to order. Add to View Price |
|||
|
#28
CLAMP(10)
7080533
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
FUEL LINE,1/8 ID,600 CM.
8360009-600
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
Valve, Check
7052047
Superseded by 7051011
|
$9.29 | ||
|
Available to order. Add to View Price |
|||
|
#31
MOUNT, REAR MOTOR, BLK.
5240542-067
|
|||
|
Unavailable |
|||
|
#32
WASHER(10)
7555801
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
ISOLATOR-3/8-24M/M,60DURO
3110042
Superseded by 3022070
|
$27.79 | ||
|
Available to order. Add to View Price |
|||
|
#34
NUT, JAM(10)
7542432
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
MT,TORQUE STOP,RUBBER
3110048
|
$9.29 | ||
|
Available to order. Add to View Price |
|||
|
#36
CLAMP-HOSE, (LARGE GREEN)
7080307
|
$0.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#37
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
|
$89.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#38
FILTER,SMALL,IN-LINE,(10)
2530009
|
$7.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
