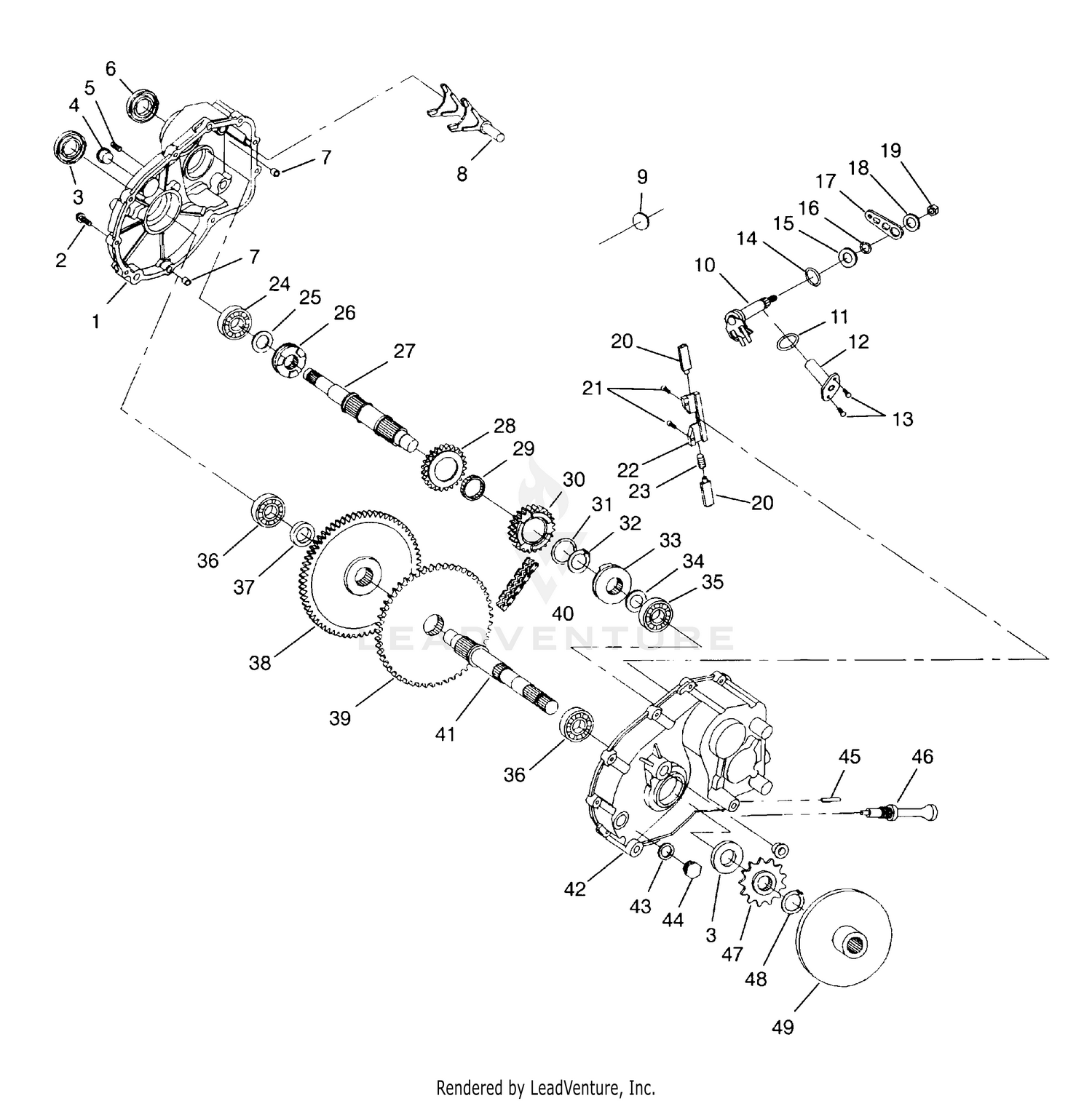

Gearcase Scrambler W957840 (4927252725c009) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#
GEARCASE ASM,(SCRAMBLER)
1341140
|
$1,279.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
GEARCASE, LH.
3233095
|
$298.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCREW
3233026
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
Seal, Triple Lip
3233096
Superseded by 3233788
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BUSHING,PIVOT
3233024
|
|||
|
Unavailable |
|||
|
#5
STUD
3233025
|
|||
|
Unavailable |
|||
|
#6
Seal, Triple Lip
3233097
Superseded by 3233788
|
$39.99 | ||
|
Unavailable |
|||
|
#7
PIPE, KNOCK
3233021
|
$13.39 | ||
|
Available to order. Add to View Price |
|||
|
#8
RAIL,SHIFT,ASM.
3233098
|
|||
|
Unavailable |
|||
|
#9
PLUG
3233178
|
|||
|
Unavailable |
|||
|
#10
SHAFT,SHIFT/BUTTON ASM.
3233188
|
|||
|
Unavailable |
|||
|
#11
O-RING
3233192
|
|||
|
Unavailable |
|||
|
#12
PLUNGER ASM.
3233186
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW
3233193
|
|||
|
Unavailable |
|||
|
#14
O-RING
3233179
|
|||
|
Available to order. Add to View Price |
|||
|
#15
WASHER
3233119
|
$7.79 | ||
|
Available to order. Add to View Price |
|||
|
#16
RING,RETAINING BASIC,EXTERNAL 0.75
3233045
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
BELLCRANK, HI/REV
3233155
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER
3233054
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
Nut, Lock
3233055
Superseded by 3233961
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
PIN
3233031
|
$36.79 | ||
|
Available to order. Add to View Price |
|||
|
#21
Screw, Tapping
3233033
Superseded by 3233747
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BRACKET
3233030
|
$26.79 | ||
|
Available to order. Add to View Price |
|||
|
#23
SPRING
3233189
|
|||
|
Unavailable |
|||
|
#24
BEARING, BALL, 6205 C3 25X52X15
3233019
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER
3233099
|
$7.79 | ||
|
Available to order. Add to View Price |
|||
|
#26
DOG,REV.ENGAGE.
3233180
|
|||
|
Unavailable |
|||
|
#27
SHAFT, INPUT
3233181
|
$269.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
GEAR,REVERSE
3233182
|
|||
|
Unavailable |
|||
|
#29
BEARING, NEEDLE
3233103
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
SPKT,19T,FWD.
3233183
|
|||
|
Unavailable |
|||
|
#31
WASHER
3233105
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
RING,RETAINING BASIC,EXTERNAL 0.984
3233106
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
DOG,FWD.ENGAGE.
3233184
|
|||
|
Available to order. Add to View Price |
|||
|
#34
WASHER
3233007
|
|||
|
Available to order. Add to View Price |
|||
|
#35
BEARING-BALL,6307 C3,35X80X21
3233018
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
BEARING
3233020
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
WASHER
3233108
|
|||
|
Unavailable |
|||
|
#38
GEAR, 65T
3233109
|
|||
|
Unavailable |
|||
|
#39
SPROCKET, 51T
3233121
|
|||
|
Available to order. Add to View Price |
|||
|
#40
CHAIN,SILENT,60P
3233111
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
SHAFT, OUTPUT
3233190
|
|||
|
Unavailable |
|||
|
#42
GEARCASE,RH
3233187
|
|||
|
Unavailable |
|||
|
#43
WASHER
3233035
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
Plug, Drain
3233114
Superseded by 3233448
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
VENT
3233037
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#46
Dipstick
3233115
Superseded by 3233478
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#47
SPKT,13T,SPLINED
3221041
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#48
RING,SNAP(10)
3233047
Superseded by 7710434
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#49
Disk, Brake
-------
|
|||
|
Unavailable |
|||
