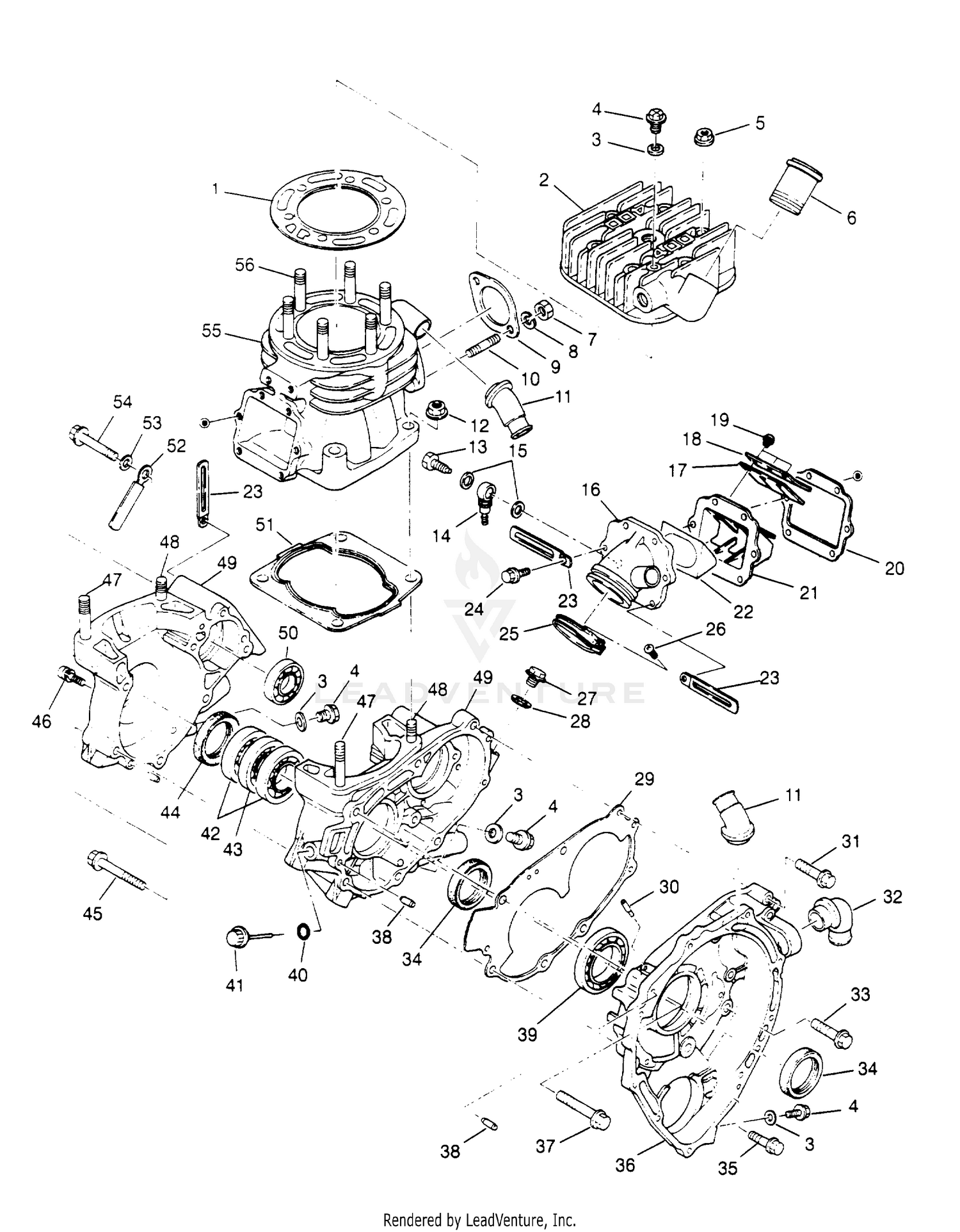

Crankcase And Cylinder Scrambler W957840 (4927252725c013) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET,HEAD
3084731
|
$41.19 | ||
|
Available to order. Add to View Price |
|||
|
#2
Head, Cylinder Complete
3084730
Superseded by 3086755
|
$344.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, FLAT
3082758
Superseded by 7555998
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
PLUG, DRAIN
3083767
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT-FLANGE(10)
3082910
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
PIPE, WATER
3083452
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Nut
3080285
Superseded by 3087199
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER LOCK ,(10)
3080530
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
Gasket, Exhaust
3084017
Superseded by 3086757
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
STUD (10)
3080016
|
$7.19 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIPE, 1 ELBOW Substituted by 3086746
3084129
|
|||
|
Unavailable |
|||
|
#12
NUT-FLANGE(10)
3082911
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT-BANJO
3083137
|
$13.29 | ||
|
Available to order. Add to View Price |
|||
|
#14
VALVE, CHECK
3083894
|
|||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
WASHER, FLAT
3083138
Superseded by 7555998
|
$1.49 | ||
|
Unavailable |
|||
|
#16
ADAPTER
3085038
|
|||
|
Available to order. Add to View Price |
|||
|
#17
VALVE, REED(10)
3240064
|
|||
|
Available to order. Add to View Price |
|||
|
#18
STOPPER
3240065
|
|||
|
Available to order. Add to View Price |
|||
|
#19
SCREW, REED
3240066
Superseded by 3084565
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#20
GASKET, REED VALVE,(10)
3084148
|
|||
|
Available to order. Add to View Price |
|||
|
#21
ASM., REED VALVE
3084147
|
|||
|
Available to order. Add to View Price |
|||
|
#22
STUFFER,(REED VALVE ASM.)
3240164
|
$12.39 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLAMP
3083590
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
Bolt, Flange
3084145
Superseded by 3084877
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
BAND ASM.
3084144
|
|||
|
Available to order. Add to View Price |
|||
|
#26
SCREW,(10)
3081497
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
PLUG Substituted by 3086749
3083453
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
GASKET
3082956
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
Gasket
3084727
Superseded by 3086748
|
$34.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
PIPE, BREATHER
3084128
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
Bolt, Flange
3084132
Superseded by 3086751
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
Pipe 2, Elbow
3084130
Superseded by 3086747
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT, FLANGE ,(10)
3084435
|
|||
|
Unavailable |
|||
|
#34
SEAL, OIL
3084120
|
|||
|
Available to order. Add to View Price |
|||
|
#35
BOLT, FLANGE
3084126
|
|||
|
Available to order. Add to View Price |
|||
|
#36
CRANKCASE ASM. Substituted by 3085081
3084726
|
|||
|
Unavailable |
|||
|
#37
BOLT, FLANGE
3084134
|
|||
|
Available to order. Add to View Price |
|||
|
#38
Pin, Dowel
3080103
Superseded by 3086838
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
BEARING, BALL
3084131
|
$48.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
O-RING
3084733
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
GAUGE, OIL Substituted by 3085517
3084732
|
|||
|
Available to order. Add to View Price |
|||
|
#42
BEARING, BALL
3084121
|
$49.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#43
BEARING, BALL
3084775
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
SEAL, OIL
3084725
|
|||
|
Available to order. Add to View Price |
|||
|
#45
BOLT, FLANGE Substituted by 3086742
3084125
|
|||
|
Unavailable |
|||
|
#46
SCREW & WASHER(10)
3084205
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#47
STUD
3084118
|
$7.79 | ||
|
Available to order. Add to View Price |
|||
|
#48
STUD
3084119
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#49
CRANKCASE ASM. Substituted by 3086740
3084774
|
|||
|
Unavailable |
|||
|
#50
BEARING, BALL
3084123
|
$25.49 | ||
|
Available to order. Add to View Price |
|||
|
#51
GASKET,CYLINDER
3084729
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#52
CLAMP
3083384
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#53
WASHER(10)
3080142
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#54
BOLT, FLANGE
3084124
|
$7.79 | ||
|
Available to order. Add to View Price |
|||
|
#55
KIT,CYL&ADAPTER,(SCRAMBLER)
2200833
|
|||
|
Unavailable |
|||
|
#56
STUD
3084138
|
|||
|
Available to order. Add to View Price |
|||
