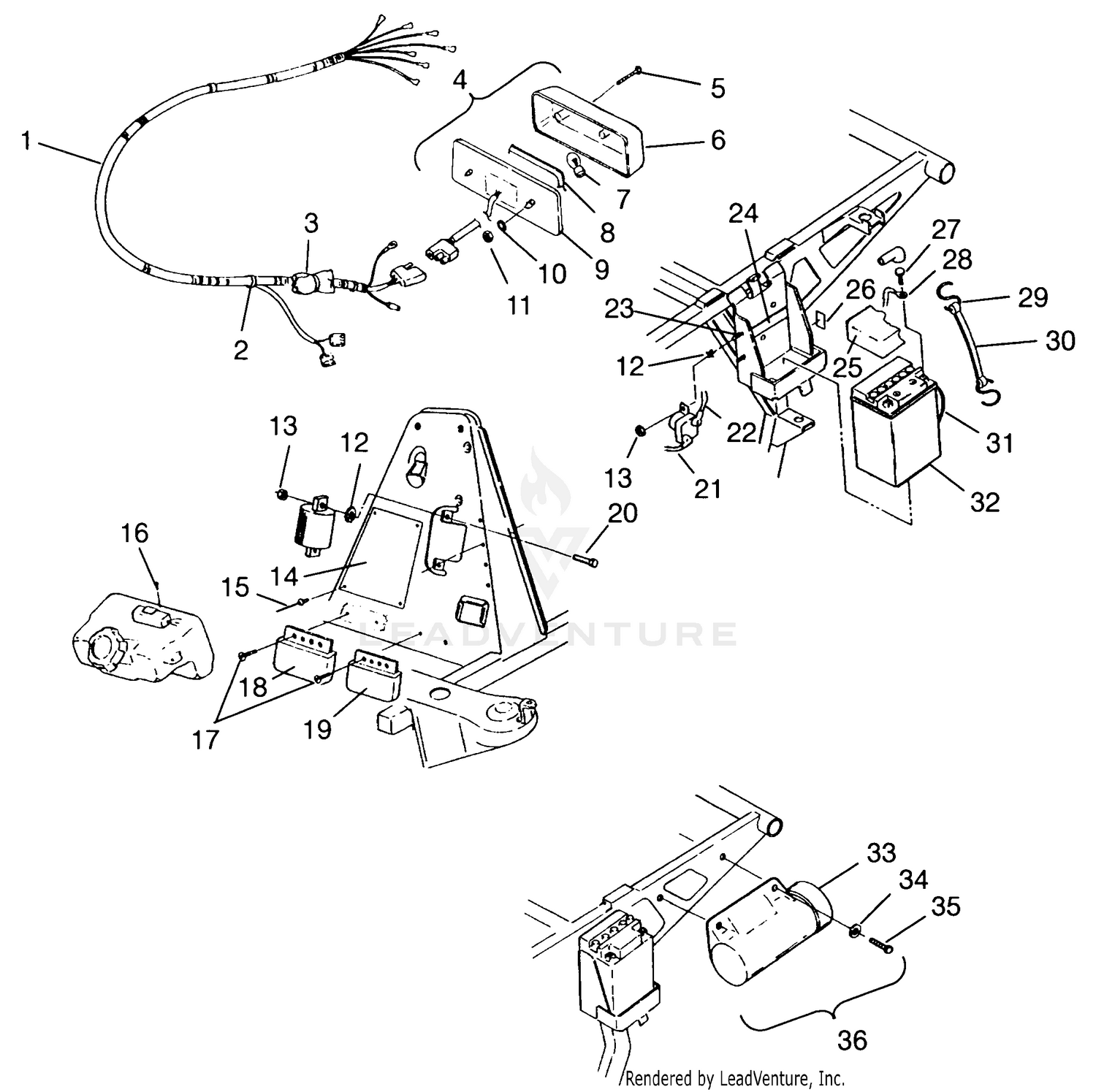

Electrical/taillight Assembly Scrambler W957840 (4927252725c007) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HARNESS,MAIN WIRE
2460495
|
|||
|
Unavailable |
|||
|
#2
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
CKT.BREAKER,20 AMP.
2434012
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Asm., Taillight, 12V
2432038
Superseded by 2410319
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW,TAIL LIGHT
7512088
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
LENS,STOP&T/L.
4032085
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BULB,TAILLIGHT
4030043
|
$7.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
GASKET,T/L&STOP/L
4032086
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BACKING,(STOP&TAIL)
4032087
|
$9.29 | ||
|
Available to order. Add to View Price |
|||
|
#10
O RING(10)
5410610
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
SPEED NUT-WASHER, HEAD-1/4
7670054
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
WASHER(10)
7571602
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
NUT(10)
7541925
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOARD,TERMINAL,150W.(ATV) Substituted by 4040063
4040049
|
|||
|
Unavailable |
|||
|
#15
RIVET,(50)
7621336
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW(10)
7512076
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
SCREW,(10)
7512024
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
LIMITER,REV,LR49
4060114
|
|||
|
Unavailable |
|||
|
#19
NOT AVAILABLE
4060087
Superseded by 9999999
|
|||
|
Available to order. Add to View Price |
|||
|
#20
SCREW(10)
7512007
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
CABLE,SOLENOID/STARTER
4010064
|
|||
|
Available to order. Add to View Price |
|||
|
#22
CABLE,SOLENOID-STRTR.
4010075
|
|||
|
Unavailable |
|||
|
#23
SCREW(10)
7512027
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
PAD-BATTERY
5810290
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
COVER,BATTERY
5431769
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
DECAL, BATTERY [No Longer Available]
7072606
|
|||
|
Unavailable |
|||
|
#27
BOLT,BATT,KIT(SHORT)
2200361
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
CABLE,BATTERY-SOLENOID
4010076
|
|||
|
Unavailable |
|||
|
#29
HOOK-BATT.H/D(10)
7010032
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
Strap, Battery Holddown
5410424
Superseded by 5412499
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
FUEL LINE,1/8 ID,600 CM.
8360009-600
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
BATTERY
4140006
|
$99.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
LID COVER,TOOLBOX Substituted by 2620087
5431973
|
|||
|
Unavailable |
|||
|
#33
GASKET,TOOLBOX LID
5811079
|
|||
|
Unavailable |
|||
|
#34
WASHER-.28X.62-.14(RBR-BK)-Z
7555748
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
SCREW(10)
7512252
|
|||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#36
TOOLBOX ASM. Substituted by 2632221
2620087
|
|||
|
Unavailable |
|||
