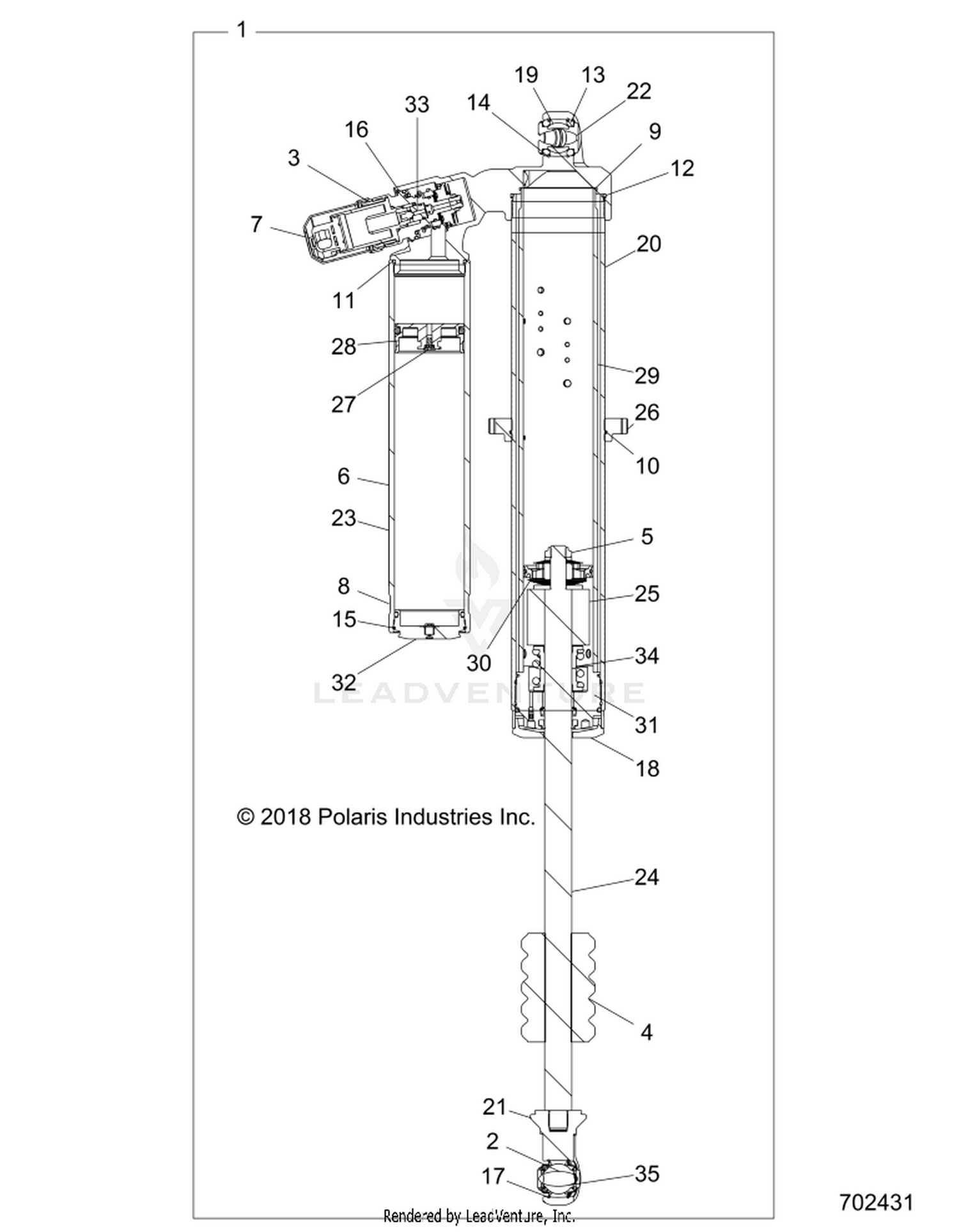

Suspension, Rear Shock Internals - Z20pal92ag/ap/bg/bp/lg/g92ag/ap/lg (702431) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHOCK-REAR,PXP,IBPLV,LTD,LH
7045404
|
$1,854.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
SHOCK-REAR,PXP,IBPLV,LTD,RH
7045405
|
$1,854.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
-------
-------
|
|||
|
Unavailable |
|||
|
#3
COVER - LIVE VALVE
1501290
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
-------
-------
|
|||
|
Unavailable |
|||
|
#5
Nut, Lock
1500842
Superseded by 1500472
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
-------
-------
|
|||
|
Unavailable |
|||
|
#7
DECAL - IRD CVR, LIVE
1501272
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
DECAL - BAND
1501273
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SEALS:O-RING [(-033) .070 C.S. X 2.364 ID] STANDARD, N-70, STATIC
1501069
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
-------
-------
|
|||
|
Unavailable |
|||
|
#11
SEALS:O-RING [(-139) .103 C.S. X 2.175 ID] STANDARD, N-70, STATIC
1501048
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SEALS:O-RING [(-150) .103 C.S. X 2.862 ID] STANDARD, N-70, STATIC
1501070
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SEALS:O-RING [(-315) .210 C.S. X .787 ID] STANDARD, N-70, STATIC
1501050
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
RETAINING RING: SNAP [-118] STEEL, GOLD ZINC: PH 15-7 MO, BASIC INTERNAL
1501051
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
WIRE, RETAINING RING
1500960
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
RETAINING RING: WIRE [0.062 CS X 1.690 INSTALLED OD] SS
1501052
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
RING, RET., WIRE SS
1501292
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BEARING CAP
1501320
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
-------
-------
|
|||
|
Unavailable |
|||
|
#19
-------
-------
|
|||
|
Unavailable |
|||
|
#20
-------
-------
|
|||
|
Unavailable |
|||
|
#21
-------
-------
|
|||
|
Unavailable |
|||
|
#22
EYELET PARTS: (T) REDUCER, [0.560 TLG, .476 THRU HOLE] COM 10 SPHERICAL, SLIP FI
1501076
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
RESERVOIR: (T) [Ø 2.250 BORE, 12.000 TLG] AL 6061, THREADED ID, SHORT OD STEP
1501077
|
$264.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
-------
-------
|
|||
|
Unavailable |
|||
|
#25
-------
-------
|
|||
|
Unavailable |
|||
|
#26
-------
-------
|
|||
|
Unavailable |
|||
|
#27
SCREW ASSEMBLY: [FLAT HEAD SOCKET CAP #10-24 X 0.375 TLG] STEEL BLACK OXIDE, COMPLETE
1500161
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
PISTON ASSEMBLY: FLOATING [Ø2.25 BORE] W/ STD. TEMP O-RING, MAX VOL. BLEED AND
1501060
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
-------
-------
|
|||
|
Unavailable |
|||
|
#30
-------
-------
|
|||
|
Unavailable |
|||
|
#31
ASM-BEARING
1501324
|
$134.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
RESERVOIR END CAP ASSEMBLY: [Ø 2.250 BORE, .940 TLG] PELLET FILL, ALUMINUM, BLAC
1501063
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
ADJUSTER - DSC HIFLO
1501288
|
$534.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
-------
-------
|
|||
|
Unavailable |
|||
|
#35
BEARING: SPHERICAL [Ø 0.625 BORE X Ø 1.1875 OD] COM 10, BK LINER, CCVI
1501044
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
