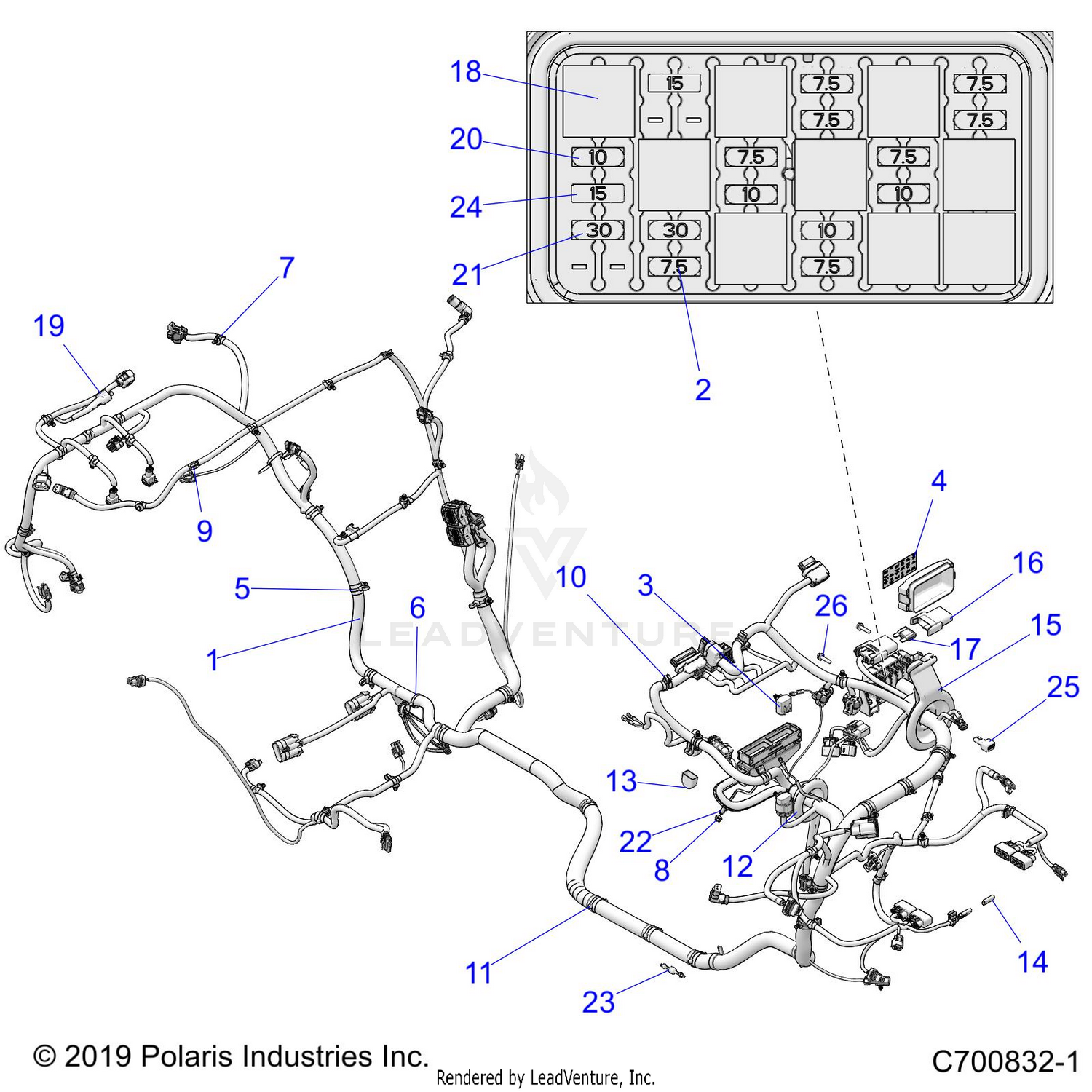

Electrical, Wire Harness - Z20pal92ag/ap/lg (c700832-1) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HARNESS-CHASSIS,RZR,LV,AUD
2415038
|
$1,579.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
FUSE-7.5 MINI BLADE (BROWN)
4011068
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER-DIAGNOSTIC,W/CLIP
4012170
|
$10.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
LABEL-FUSE BOX
7189101
|
|||
|
Available to order. Add to View Price |
|||
|
#5
CABLE-TIE,DIA6-38MM,DUAL-LOOP
7081916
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
CLIP-OMEGA,CABLE/15-18MM DIA
7082481
|
$7.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
CLIP-ROUTING
7082068
|
$8.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
CLIP-ROUTING,DIN BOX
7082020
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLIP-EDGE,HARNESS
7081890
|
$12.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
CLIP-EDGE,1-3MM,6-45MM,SERT.
7081808
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLIP FIR-TREE,DIA6-33MM
7081496
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
GROMMET-65MM,BLK
5813954
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
CAP-VINYL,500X1000,BLACK
5438233
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
CAP-VINYL,125X375,BLACK
5438230
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
GROMMET-DASH FUSE CTR,RZR
5416469
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
HOLDER-FUSE,SEALED
4018207
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
FUSE, 30 AMP
4012081
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
RELAY-SPST,12V,20A,EPXY,HFA
4016819
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOOT-TMAP
4018263
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
FUSE-IGNITION,10 AMP
2434016
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
FUSE-MAIN,30 AMP
2434015
|
$9.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
LED-PANEL MNT,12V,BLUE
2413217
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
DIODE-6AMP,1/4,3/16 TERM
2411035
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
FUSE-15AMP,MINI BLADE
2410280
Superseded by 4010859
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
DIODE-6 AMP
2410000
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCR-HXFL-M6X1.0X25 8.8 RIE
7518576
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
