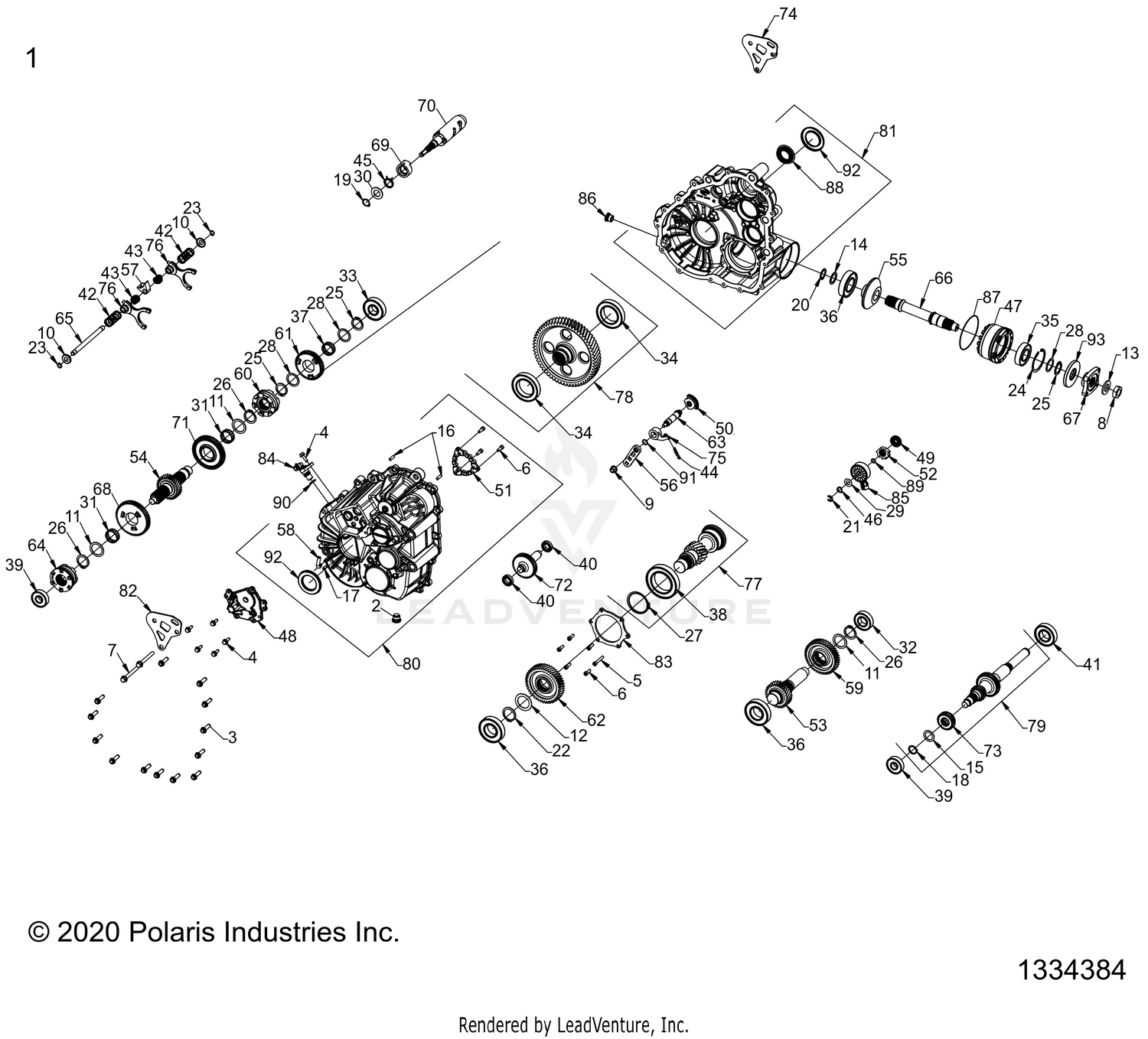

Drive Train, Main Gearcase Internals - Z20pal92ag/ap/bg/bp/lg/g92ag/ap/lg (1334384) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ASM-GEARCASE,COMPLETE
1334384
|
$4,864.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PLUG, M18 X 1.5 MAGNETIC
3234756
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW-HEXFLANGEHEAD,M8X1.25X30
3234898
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW, HEX FLANGE HEAD M6 X 1 X 20
3235206
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, SOCKET HEAD CAP, M6 X 1 X 40
3235208
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, SOCKET HEAD CAP, M6 X 1 X 18
3235332
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW HEX FLANGE M8 X 1.25 X 70
3235802
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT, JAM M20 X 1.5
3235803
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, LOCK HEX FLANGE NYLON M8 X 1.25
3235210
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER-CUP
3234091
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER 32.3 X 42 X 1.5
3235211
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER 35.6 X 50 X 1.5
3235212
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, LOCKING 21.4 X 39 x 3.4
3235804
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER 25.26 X 34 X 2
3235805
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER 22.7 X 32 X 1.5
3235991
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIN, DOWEL 6 X 20
3234330
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
PIN, SPRING SLOTTED 6 X 12
7043746
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
RING, RETAINING
7710434
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
RING,RETAINING BASIC,EXTERNAL 0.75
3233045
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
RING,RETAINING BASIC,EXTERNAL 0.984
3233106
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
RING SNAP
3233834
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
RING, RETAINING SHAFT, DIA. 1.375
3233364
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
RING,RETAINING BASIC,EXTERNAL 0.428
3234090
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
RING, RETAINING BASIC INTERNAL, 62MM
3234741
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
RING, RETAINING
3234205
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
RING-RETAIN,EXT,MSR-32(130296)
3235214
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
RING, RETAINING VSH-237
3235216
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER,THRUST,1.187 X 1.500 X .0600
3233378
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER,THRUST,0.446 X 0.88 X 0.025
3234642
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
SPACER, 19.4 X 34.0 X 2
3235883
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
BEARING, NEEDLE
3233014
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
BEARING, BALL, 6205 C3 25X52X15
3233019
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
BEARING
3233020
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
BEARING-BALL 6010 C3 50 X 80 X 10
3233268
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
BEARING-BALL 6206 C3 30X62X16
3233790
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
BEARING,BALL 6207 C3 35X72X17
3234065
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
BEARING, NEEDLE CAGE ASSY
3233384
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
BEARING, BALL 6012 C3 60 X 95 X 18
3235218
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
BEARING, BALL 6303 17 X 47 X 14
3234652
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
BEARING, BALL 6903 17 X 30 X 7
3235807
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
BEARING, BALL 6206RSH2 STD 30X62X16
3235496
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
SPRING,COMPRESSION, .92 O.D. X 2.000
3234078
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
SPRING, COMPRESSION .46 I.D. X 0.73
3234089
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
SPRING, COMPRESSION DETENT
3234578
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
SPRING, TORSION
3235885
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
SPRING, WASHER
3235327
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#47
TUBE, SNORKEL MACH
3235947
|
$129.99 | ||
|
Available to order. Add to View Price |
|||
|
#48
COVER, SECTOR GEARS MACH
3235809
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#49
GEAR, SECTOR 16T
3233839
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
GEAR-SECTOR,31T
3233832
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#51
PLATE, PARK 12-FACE
3235456
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#52
STAR, DETENT
3235982
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#53
SHAFT, IDLER 29T
3235223
|
$134.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#54
SHAFT, REVERSE 29T
3235224
|
$179.99 | ||
|
Available to order. Add to View Price |
|||
|
#55
GEAR, 19T SNORKEL
3235812
|
$164.99 | ||
|
Available to order. Add to View Price |
|||
|
#56
BELLCRANK 92 DEGREE
3235227
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#57
COLLAR-SHIFT
3234073
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#58
TUBE, VENT 90 -1/4" HOSE
3234230
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#59
GEAR-44T,STAGE2
3235229
|
$114.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#60
ENGAGEMENT DOG, 6-FACE
3235233
|
$159.99 | ||
|
Available to order. Add to View Price |
|||
|
#61
GEAR, 53T
3235234
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#62
GEAR, 46T STAGE 3
3235236
|
$134.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#63
SHAFT-SHIFT(352973)
3235238
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#64
SHIFT DOG, PARK
3235457
|
$179.99 | ||
|
Available to order. Add to View Price |
|||
|
#65
RAIL, SHIFT SHAFT
3235542
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#66
SHAFT, FRONT OUTPUT
3235815
|
$199.99 | ||
|
Available to order. Add to View Price |
|||
|
#67
COUPLER
3235816
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#68
GEAR, LOW 64T
3235774
|
$99.99 | ||
|
Available to order. Add to View Price |
|||
|
#69
PARK CAM
3235983
|
$189.99 | ||
|
Available to order. Add to View Price |
|||
|
#70
DRUM, SHIFT MACH
3235984
|
$344.99 | ||
|
Available to order. Add to View Price |
|||
|
#71
GEAR, REVERSE 56T
3235985
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#72
GEAR, IDLER 39T
3235986
|
$139.99 | ||
|
Available to order. Add to View Price |
|||
|
#73
GEAR, LOW 29T
3235989
|
$159.99 | ||
|
Available to order. Add to View Price |
|||
|
#74
WELDMENT, REAR MOUNT BRACKET
3236144
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#75
SUBASSEMBLY, PAWL DETENT, ROLLER
3235452
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#76
SUBASSEMBLY, SHIFT FORK
3235920
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#77
SUBASSEMBLY, PINION
3235820
|
$454.99 | ||
|
Available to order. Add to View Price |
|||
|
#78
SUBASSEMBLY, OUTPUT
3235847
|
$339.99 | ||
|
Available to order. Add to View Price |
|||
|
#79
SUBASSEMBLY, INPUT 42T/22T/29T
3235987
|
$409.99 | ||
|
Available to order. Add to View Price |
|||
|
#80
SUBASSEMBLY, RH CASE
3235992
|
$454.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#81
SUBASSEMBLY, LH CASE
3236639
|
$554.99 | ||
|
Available to order. Add to View Price |
|||
|
#82
BRACKET, REAR MOUNT
3236145
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#83
COVER, BEARING CENTER DRIVE
3235823
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#84
SENSOR-SPEED,TRANS
4013908
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#85
SWITCH, ROTARY 2 PIN RESISTIVE
7662299
|
$139.99 | ||
|
Available to order. Add to View Price |
|||
|
#86
PLUG, M18 X 1.5
3234755
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#87
O-RING 3.609 I.D. X 0.139
3235948
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#88
SEAL, VITON TRIPLE LIP W/SHIELD AND FLANGE, 30 X 47 X9
3236551
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#89
O-RING, -012 VITON
3233836
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#90
O-RING, -113 VITON
3233840
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#91
O-RING VITON
3233828
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#92
SEAL, TRIPLE LIP, VITON 40 X 70 X 7
3235052
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#93
SEAL, TRIPLE LIP 30 X 75 X 8
3235824
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
