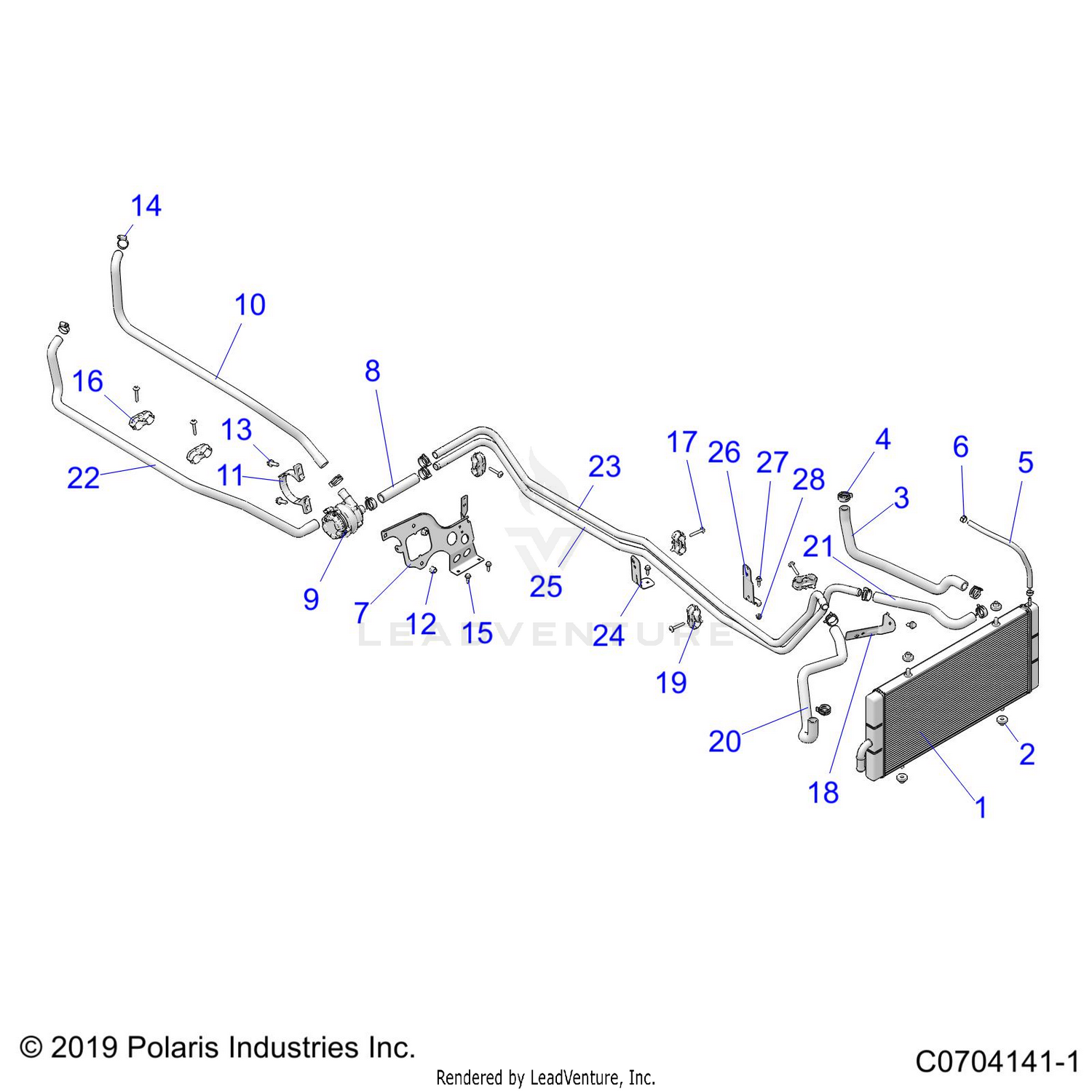

Engine, Cooling, Aux. System - Z20pal92ag/ap/bg/bp/lg/g92ag/ap/lg (c0704141-1) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ASM-RADIATOR,CORE
1241115
|
$494.99 | ||
|
Unavailable |
|||
|
#1
ASM-RADIATOR,CORE
1241387
|
$639.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GROMMET-FLANGED,.36X.56X1.06
7052028
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOSE-OUT,SURGE TANK TO LTR
5416031
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRINGBAND-CLAMP 27/12,GREEN
7080841
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
HOSE
8450120-31
Superseded by 8450120-600
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
HOSE CLAMP, RED
7080003
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRKT-MOUNT,WATER PUMP,BLK
5265138-329
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
HOSE-PUMP INLET, 3/4",REAR
5415326
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
ASM-PUMP,WATER,ELECTRIC
2413045
|
$459.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOSE-INTERCOOL,INLET,3/4",RR
5415324
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BRKT-MNT,WATER PUMP
5452166
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
BOLT-M8X1.25X25,HXFLG-OLIVE D
7518514
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
CLAMP-CONSTANT TENSION,16-27
7081415
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCR-M6X1.0X20,HXHD,FLG,TDFM,BK
7518529
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
CLIP-ROUTING,0.75
5454911
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCR-M6X1X40,TR/TX-BLK
7519001
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
BRKT-COOLING TUBE
5264975
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BRACKET-COOLANT TUBE,3/4"
5451785
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
HOSE-RADIATOR,3/4",UPPER
5416026
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
HOSE-RADIATOR,3/4",LOWER
5416027
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
HOSE-INTERCOOL,OUTLET,3/4",RR
5415325
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
TUBE-COOLANT,3/4",UPPER
5140796
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BRKT-COOLANT TUBE,ECOAT
5265051-329
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
TUBE-COOLANT,3/4",LOWER
5140797
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
BRKT-COOLANT TUBE,ECOAT
5268164-329
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCR-HXFL-M6X1.0X20 8.8 RIE
7519121
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
NUT-M6 FLANGE,NYLOC
7547274
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
