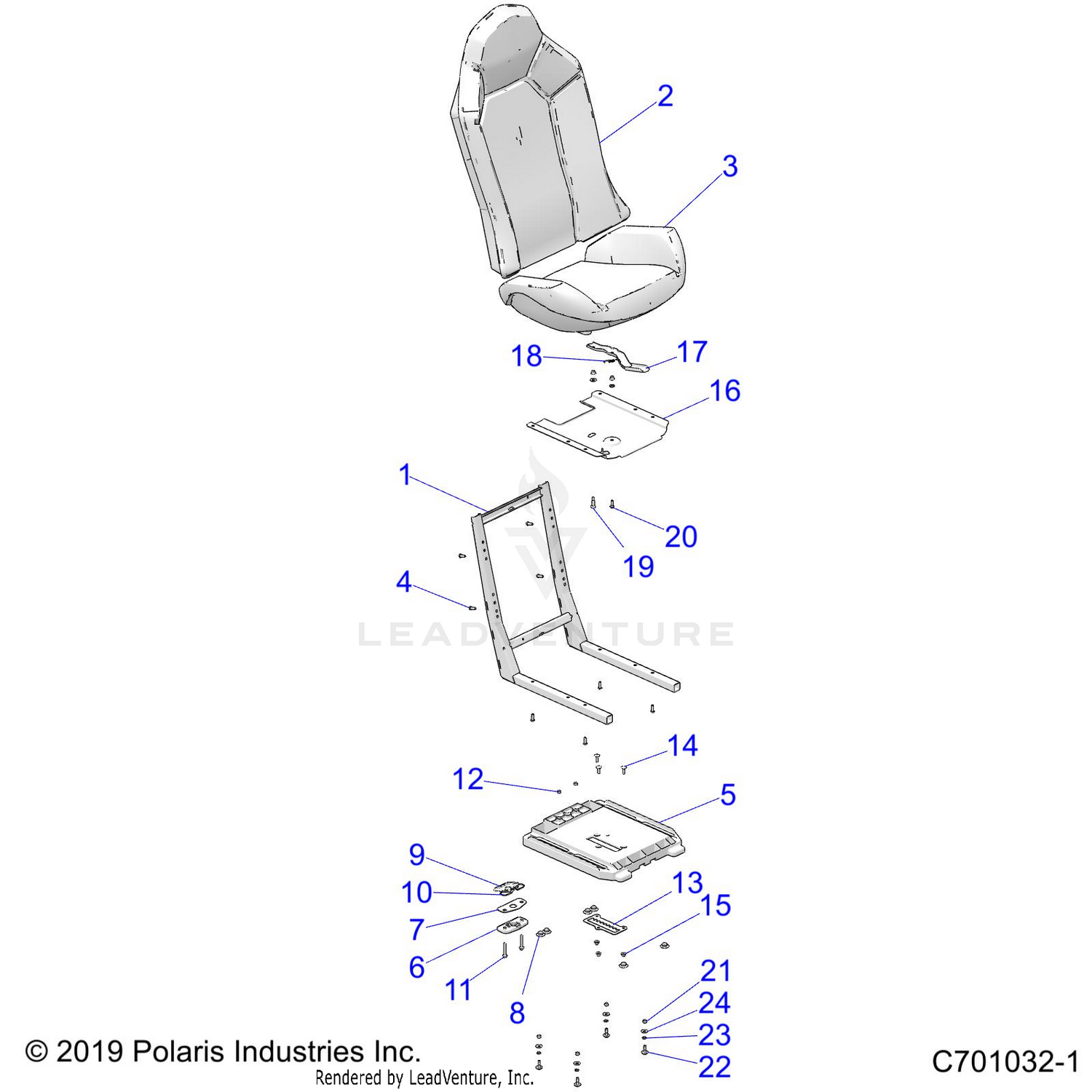

Body, Seat Asm. And Slider - Z20pal92ag/ap/bg/bp/lg/g92ag/ap/lg (c701032-1) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME, SEAT
1021289
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
ASM-SEAT BACK,BLK/INDY RED
2688728
|
$539.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVERING-SEAT BACK,BLK/IRED
2688729
|
$399.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
ASM-SEAT BACK,SBLUE/BLK,BLK ST
2689619
|
$539.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
INSERT
7547387
Superseded by 7547392
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
ASM-SEAT BTM,BLK/INDY RED
2688732
|
$309.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVERING-SEAT BTM,BLK/IRED
2688733
|
$324.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
ASM-SEAT BTM,SBLUE/BLK,BLK ST
2689621
|
$309.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
INSERT
7547387
Superseded by 7547392
|
$4.99 | ||
|
Unavailable |
|||
|
#4
SCREW-1/4-20x3/4 BH TRX, GR5-Z
7515177
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
ASM-BASE,SEAT SLIDER
2685704
|
$259.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SEAT, BASE
5450170
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
LATCH, COVER PLATE, BLACK
5450510-070
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
PLATE-LATCH,SEAT
5258647
|
$7.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
GROMMET, SEAT, BASE
5413441
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
HANDLE-SEAT BASE LATCH
5437121
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
SPRING, LATCH, SEAT
7081466
|
$39.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
SCREW-M6X1.00X40-HX/FL-YD
7517610
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT-6MM X 1 NYLOK-Z
7546703
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BRACKET, SEAT, SLIDER, ADJUSTABLE PLATE
5257975
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCR-RHCARM6X1.0X20 8.8 ZOD
7518994
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BRACKET, SEAT SLIDER MOUNTING PLATE
5261437
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BRACKET, SEAT SLIDER LEVER
5260733
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPRING
7044099
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCR-SH-M6X1.0X9.5 12.9 ZY3
7518786
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
BOLT, SHOULDER
7518897
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
TUBE, SPACER
5340145
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCR-1/4-20X1-BH-TRX-GR5-Z
7519296
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
WASHER-1/4 SPRING LOCK-Y
7552801
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
WASHER-FL .281X.750X.062-Y
7555859
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
