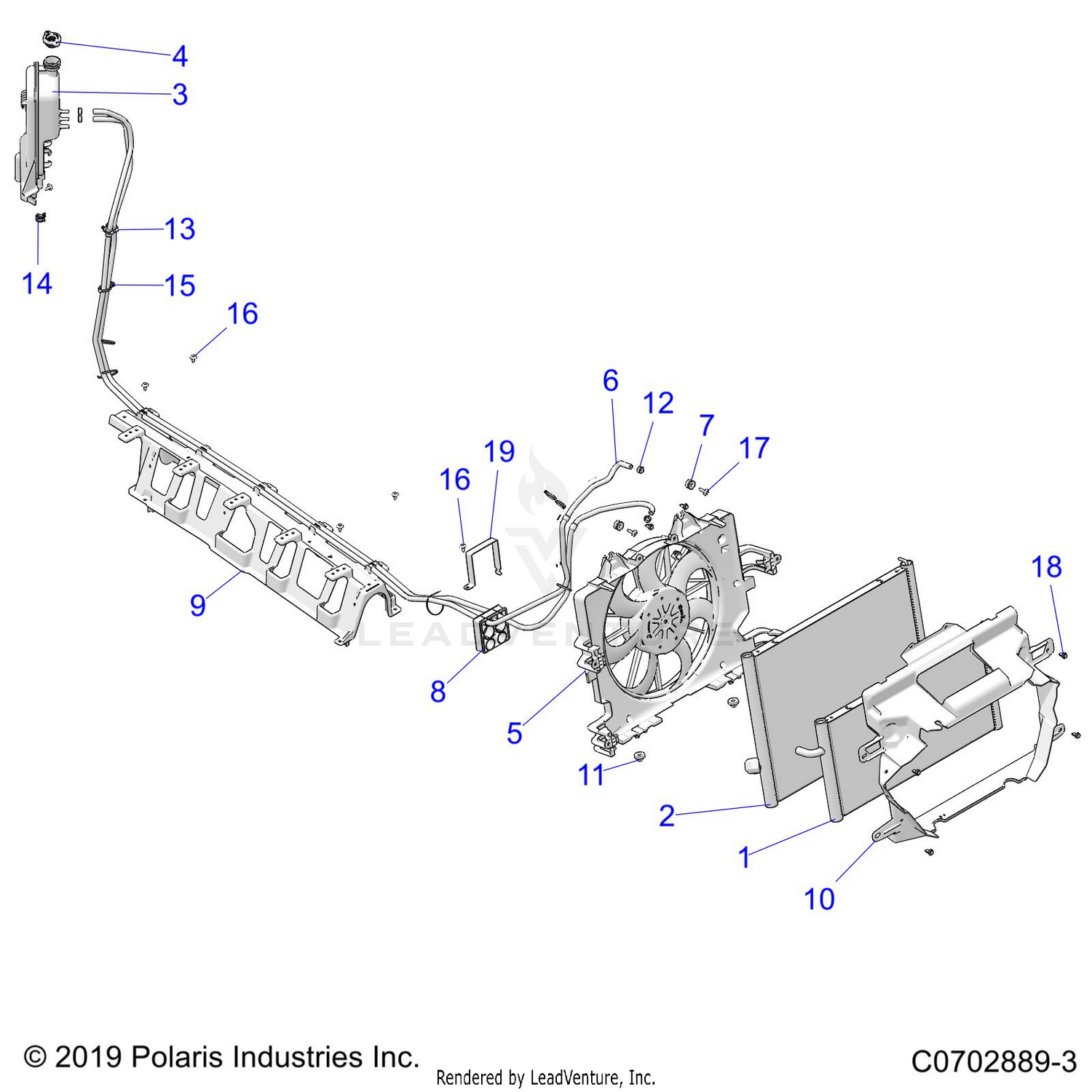

Engine, Cooling, Radiator - Z21rau92an/bn (c0702889-3) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ASM-RADIATOR,CORE,LT
1241241
|
$354.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
ASM-RADIATOR,CORE,HT
1241243
|
$429.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
WELD-SURGE TANK,DUAL
1241374
|
$77.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CAP-PRESSURE
1241379
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
FAN-ASSEMBLY
2414614
|
$474.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
ASM-VENT LINE,316CM
2522134
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
ASM-GROMMET & INSERT
5416503
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
GROMMET-ROUTING
5416806
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
TRAY-ROUTING,MID,SUB CONSOLE
5454910
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHROUD-RADIATOR
5455459
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHROUD-RADIATOR
5458641
|
$69.99 | ||
|
Unavailable |
|||
|
#11
GROMMET-FLANGED,.36X.56X1.06
7052028
|
$7.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
HOSE CLAMP, RED
7080003
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLIP FIR-TREE,DIA6-33MM
7081496
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
CLAMP, HOSE SPRING, 20MM
7081719
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLIP-EDGE,1-3MM,6-45MM,SERT.
7081808
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCR-M6X1X16 TR/TX-M
7518936
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCR-TXTH-M6X1.0X25 ZFB
7519650
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
RIVET-TUFLOK,.315-.325X.787
7661855
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
STRAP-GROMMET,ROUTING,ECOAT
5266653-329
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
