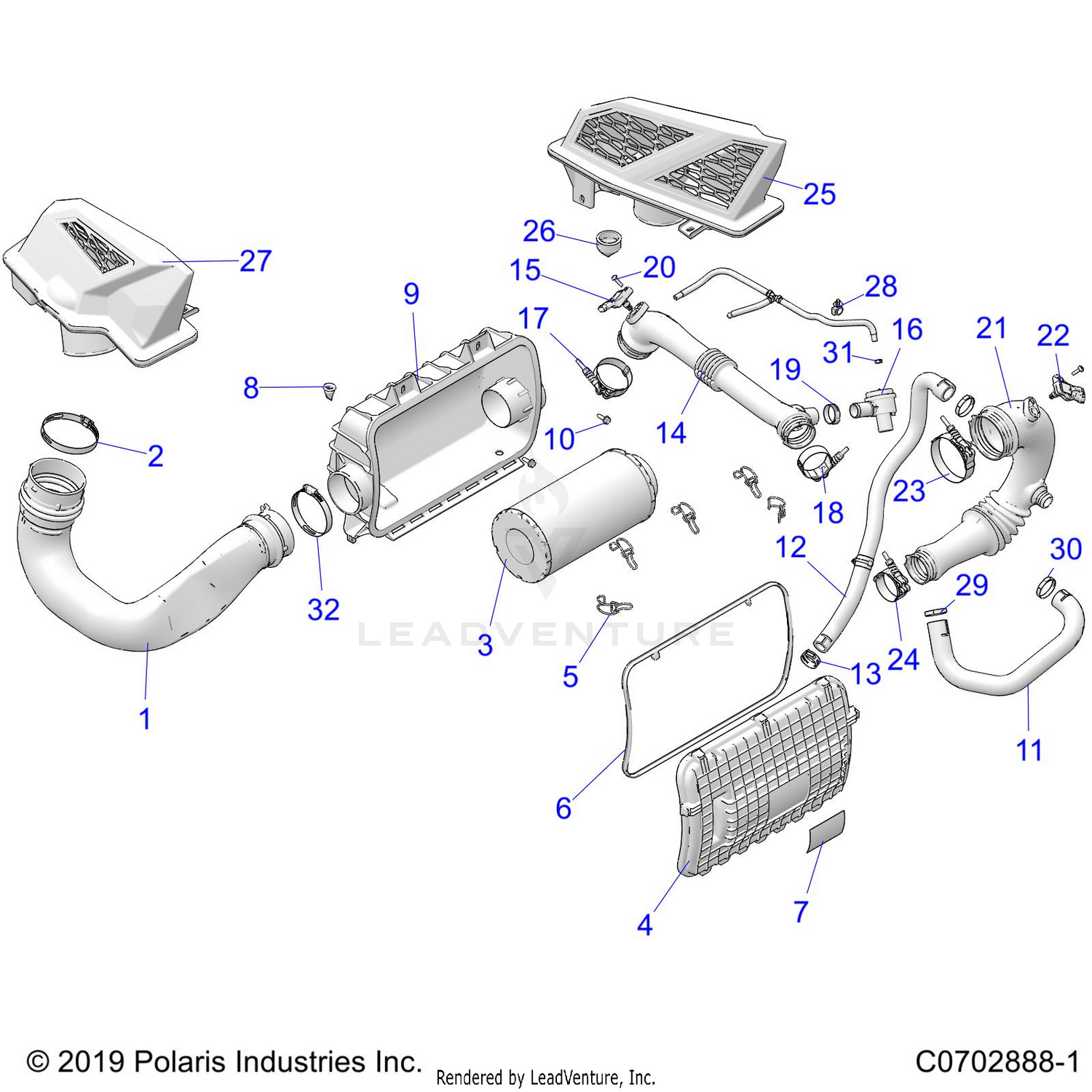

Engine, Air Intake System - Z21rau92an/bn (c0702888-1) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ASM-DUCT,AIRBOX,IN
1241537
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CLAMP-HOSE SLOTTED,92-100 DIA
7081969
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
ASM-FILTER
1241084
|
$44.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
K-FILTER,AIR,ULTRA,PERF,RZN
2882234
|
$79.99 | ||
|
Unavailable |
|||
|
#4
ASM-AIRBOX COVER
1241468
|
$114.99 | ||
|
Unavailable |
|||
|
#5
ASM-AIRBOX CLIP
7082596
|
$4.99 | ||
|
Unavailable |
|||
|
#6
SEAL-AIRBOX
5814549
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
DECAL-CAUT.AIR BOX
7182652
|
$2.69 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLUG-DRAIN
5414472
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
AIRBOX
5457123
|
$129.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCR-M6X1.0X20,HXHD,FLG,TDFM,BK
7518529
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
HOSE-VENT,BOV
5415474
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
HOSE-VENT,ENG
5416756
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRINGBAND-CLAMP 29/12,BLK
7080842
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
ASM-DUCT,CHARGE AIR
1240931
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SENSOR-TMAP,3BAR
2413095
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
VALVE-DUMP,TURBO
3022784
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLAMP-HOSE T-BOLT,66.3 DIA
7082091
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLAMP-HOSE T-BOLT,56 DIA
7082092
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLAMP-OETIKER,16704932-32
7082095
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
SCREW-PLASTITE,5.0MMX20-PN-T25
7519952
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
ASM-DUCT,INTAKE AIR
1241308
|
$249.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
SENSOR-TMAP DSS3-TF
2411528
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLAMP-HOSE T-BOLT,87.3 DIA
7082093
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
CLAMP-HOSE T-BOLT,56 DIA
7082485
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
ASM-BEZEL,INTAKE,LH
2637232
|
$144.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOOT-PURGE VALVE,AIR BOX
5417149
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
ASM-BEZEL,INTAKE,RH
2637233
|
$144.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
CLIP FIR-TREE,DIA6-33MM
7081496
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
CLAMP-OETIKER, 16704965-36.1
7082107
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
CLAMP-OETIKER,16702031-38.5
7082108
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
CLAMP-OETIKER,16700005-10.0
7082109
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
CLAMP-HOSE SLOTTED,75-90 DIA
7082314
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
CLAMP-HOSE SLOTTED,84-96 DIA
7082805
|
$6.99 | ||
|
Unavailable |
|||
|
#NS
SCREEN-INTAKE,OUTER,LH
5456087
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#NS
SCREEN-INTAKE,INNER,FRONT,LH
5456089
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#NS
SCREEN-INTAKE,INNER,REAR,LH
5456091
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#NS
SCREEN-INTAKE,OUTER,RH
5456088
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#NS
SCREEN-INTAKE,INNER,FRONT,RH
5456090
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#NS
SCREEN-INTAKE,INNER,REAR,RH
5456092
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
