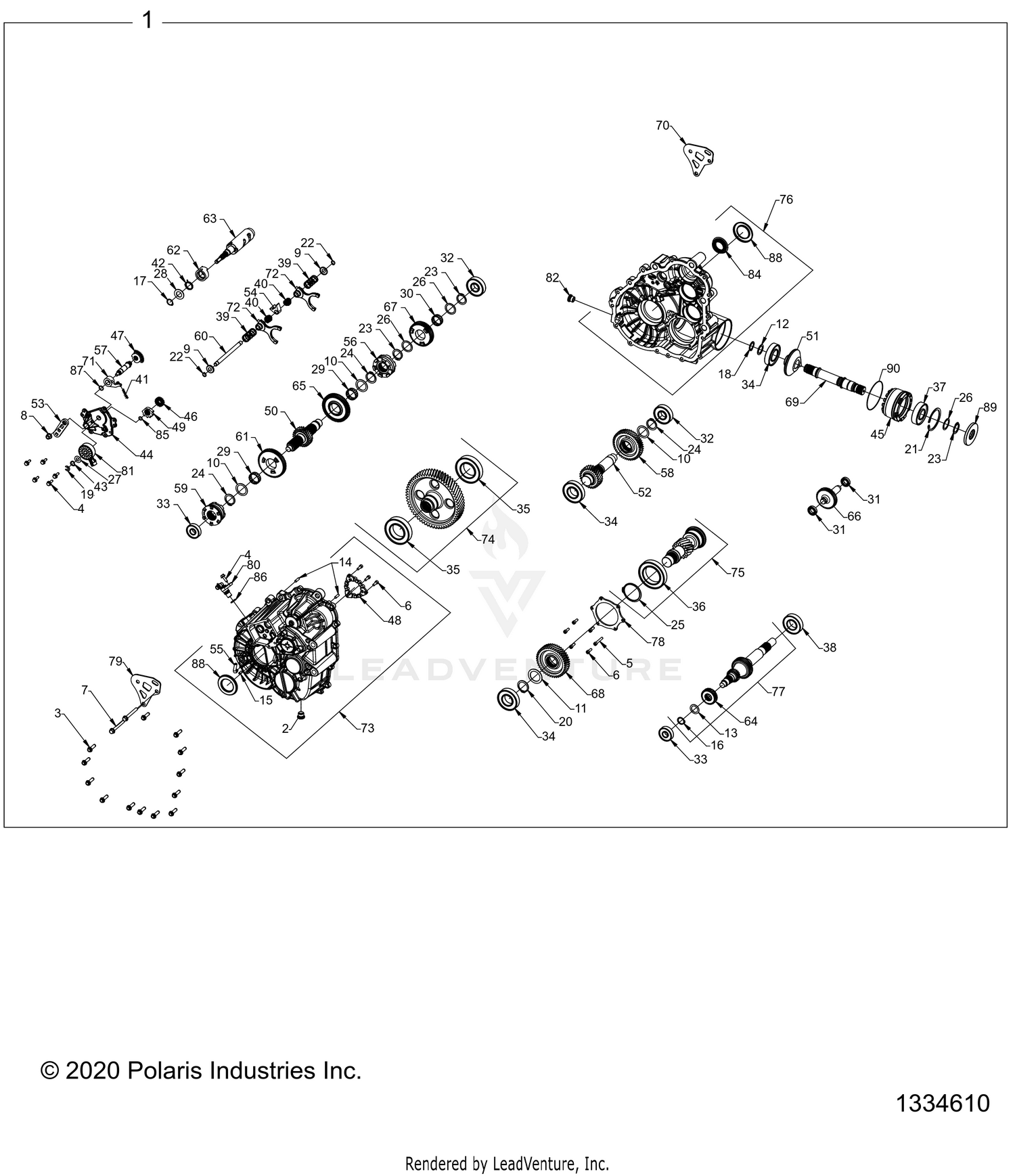

Drive Train, Main Gearcase Internals - Z21rau92an/bn (1334610) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ASM-GEARCASE,COMPLETE
1334610
|
$3,784.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PLUG, M18 X 1.5 MAGNETIC
3234756
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW-HEXFLANGEHEAD,M8X1.25X30
3234898
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW, HEX FLANGE HEAD, M6 X 1 X 20
3235206
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, SOCKET HEAD, CAP, M6 X 1.0 X 40
3235208
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, SOCKET HEAD, CAP, M6 X 1.0 X 18
3235332
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW HEX FLANGE M8 X 1.25 X 70
3235802
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT, LOCK HEX FLANGE, NYLON M8 X 1.25
3235210
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER-CUP
3234091
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER-32.3X42X1.5(115288)
3235211
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER-35.6X57X1.5(115289)
3235212
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER 25.26 X 34 X 2
3235805
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER 22.70 X 32.0 X 1.5
3235991
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIN, DOWEL 6 X 20
3234330
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIN, SPRING, SLOTTED 6 X 12
7043746
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
RING, RETAINING BASIC EXTERNAL
7710434
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
RING,RETAINING BASIC,EXTERNAL 0.75
3233045
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
RING,RETAINING BASIC,EXTERNAL 0.984
3233106
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
RING, RETAINING BASIC EXTERNAL
3233834
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
RING, RETAINING, SHAFT, DIA. 1.375
3233364
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
RING, RETAINING BASIC INTERNAL 72
3236619
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
RING,RETAINING BASIC,EXTERNAL 0.428
3234090
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
RING, RETAINING,
3234205
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
RING-RETAIN,EXT,MSR-32(130296)
3235214
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
RING-RETAIN,VSH-237(130298)
3235216
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER,THRUST,1.187 X 1.500 X .0600
3233378
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER,THRUST,0.446 X 0.88 X 0.025
3234642
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
SPACER, 19.4 X 34.0 X 2.0
3235883
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
BEARING, NEEDLE
3233014
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
BEARING-NEEDLE,30X35X13-CAGED
3233384
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
BEARING, BALL 6903 17 X 30 X 7
3235807
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
BEARING,BALL 6305RSH2 C3 25MMX62MMX17MM
3235328
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
BEARING, BALL 6303RSH2 17 X 47 X 14
3235588
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
BEARING, BALL 6207RSH2 C3 35X72X17
3236419
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
BEARING, BALL 6210 RSH2 C3 50X90X20
3236420
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
BEARING, BALL 6012 SH2 C3 60 X 95 X 18
3236421
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
BEARING, BALL 6306 RSH2 30X72X19
3236422
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
BEARING, BALL 62/32
3236773
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
SPRING,COMPRESSION, .92 O.D. X 2.000
3234078
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
SPRING, COMPRESSION, 0.46 I.D. X 0.73
3234089
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
SPRING, COMPRESSION 0.36 O.D. X 1.125
3234578
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
SPRING, TORSION
3235885
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
WASHER-SPRING,210393
3235327
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
COVER, SECTOR GEARS MACH
3235809
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
TUBE, SNORKEL MACH
3236423
|
$129.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
GEAR, SECTOR, 16T
3233839
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#47
GEAR-SECTOR,31T
3233832
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#48
PLATE, PARK, 12 FACE
3235456
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#49
STAR, DETENT,
3235982
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
SHAFT-REVERSE,27T(285878)
3235380
|
$304.99 | ||
|
Available to order. Add to View Price |
|||
|
#51
GEAR, 19T SNORKEL
3236425
|
$139.99 | ||
|
Available to order. Add to View Price |
|||
|
#52
SHAFT IDLER, 27T
3236424
|
$134.99 | ||
|
Available to order. Add to View Price |
|||
|
#53
BELLCRANK, 92 DEGREE
3235227
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#54
COLLAR-SHIFT
3234073
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#55
TUBE, VENT 90 -1/4 INCH HOSE
3234230
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#56
ENGAGEMENT DOG,6-FACE(352857)
3235233
|
$159.99 | ||
|
Available to order. Add to View Price |
|||
|
#57
SHAFT-SHIFT(352973)
3235238
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#58
GEAR, 46T, STAGE 2
3235381
|
$164.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#59
SHIFT DOG, PARK/LOW (353357)
3235457
|
$179.99 | ||
|
Available to order. Add to View Price |
|||
|
#60
RAIL-SHIFT SHAFT(353622)
3235542
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#61
GEAR, LOW, 61T
3235561
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#62
CAM, PARK
3235983
|
$189.99 | ||
|
Available to order. Add to View Price |
|||
|
#63
DRUM, SHIFT MACH,
3235984
|
$344.99 | ||
|
Available to order. Add to View Price |
|||
|
#64
GEAR, LOW 31T
3235990
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#65
GEAR, REVERSE 56T
3235985
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#66
GEAR, IDLER 39T
3235986
|
$139.99 | ||
|
Available to order. Add to View Price |
|||
|
#67
GEAR, 52T
3236435
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#68
GEAR, 43T STAGE 3
3236427
|
$134.99 | ||
|
Available to order. Add to View Price |
|||
|
#69
SHAFT, FRONT OUTPUT
3236703
|
$164.99 | ||
|
Unavailable |
|||
|
#70
WELDMENT, REAR MOUNT BRACKET
3236144
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#71
SUBASSEMBLY, PAWL, DETENT, ROLLER
3235452
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#72
SUBASSEMBLY, SHIFT FORK
3235920
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#73
SUBASSEMBLY, RH CASE
3236430
|
$429.99 | ||
|
Available to order. Add to View Price |
|||
|
#74
SUBASSEMBLY, OUTPUT
3236431
|
$334.99 | ||
|
Available to order. Add to View Price |
|||
|
#75
SUBASSEMBLY, PINION
3236433
|
$429.99 | ||
|
Available to order. Add to View Price |
|||
|
#76
SUBASSEMBLY, LH CASE
3236633
|
$554.99 | ||
|
Available to order. Add to View Price |
|||
|
#77
SUBASSEMBLY, INPUT 43T/22T/31T
3236704
|
$409.99 | ||
|
Available to order. Add to View Price |
|||
|
#78
COVER, BEARING CENTER DRIVE
3235823
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#79
BRACKET, REAR MOUNT
3236145
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#80
SENSOR-SPEED
4082135
|
$134.99 | ||
|
Available to order. Add to View Price |
|||
|
#81
SWITCH, ROTARY , 2 PIN RESISTIVE
7662299
|
$139.99 | ||
|
Available to order. Add to View Price |
|||
|
#82
PLUG, M18 X 1.5
3234755
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#83
SEAL, TRIPLE LIP 32 X 49 X 8 VITON
3236141
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#84
SEAL, VITON TRIPLE LIP W/SHIELD AND FLANGE,32X49X9
3239310
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#85
O-RING, -012 VITON
3233836
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#86
O-RING, -113 VITON
3233840
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#87
O-RING, -014 VITON
3233828
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#88
SEAL, TRIPLE LIP, VITON HELIX 40X70X7
3235052
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#89
SEAL, TRIPLE LIP 30 X 75 X 8
3235824
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#90
O-RING 3.609 I.D. X 0.139
3235948
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
