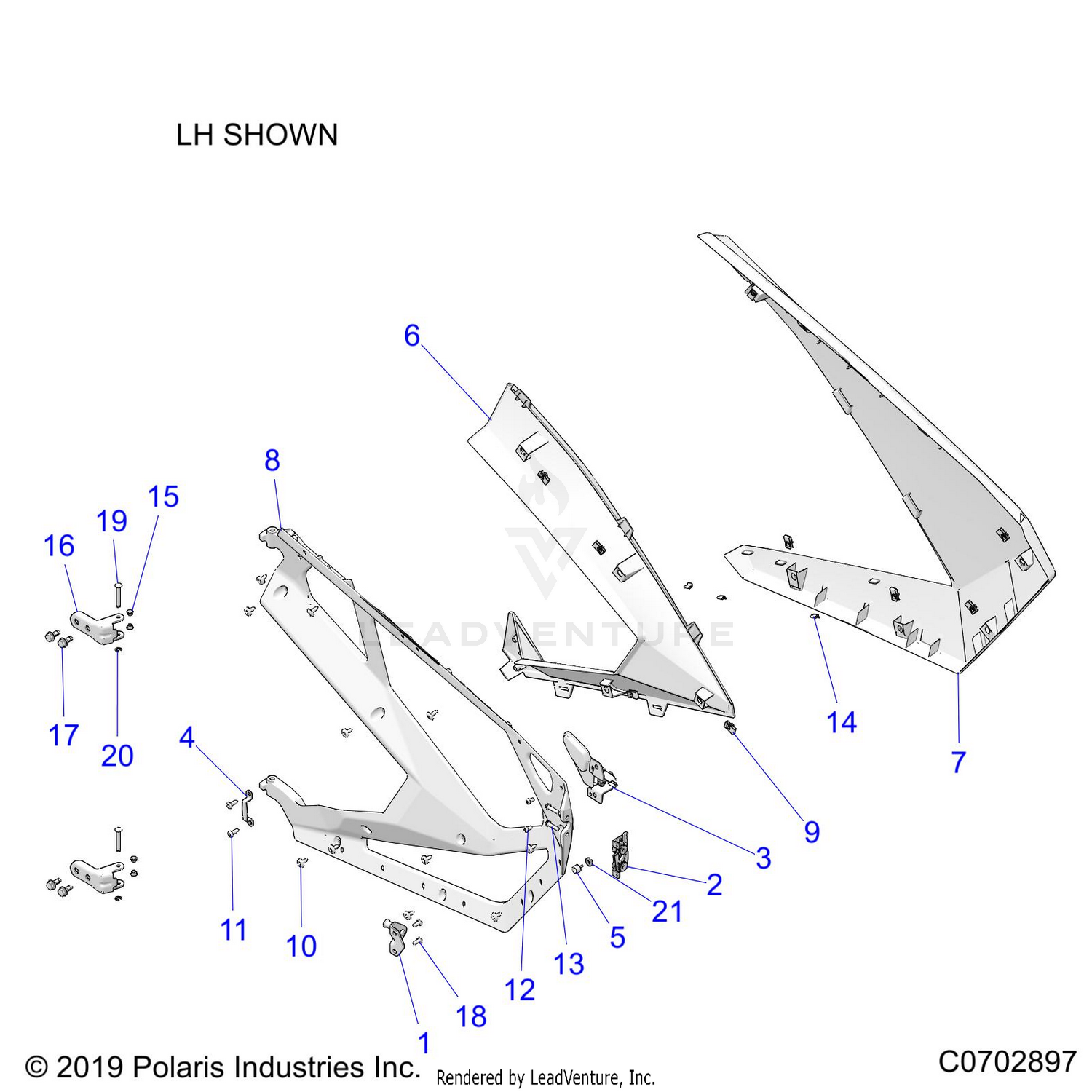

Body, Doors - Z21rau92an/bn (c0702897) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WELD-STRIKER
1024257
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
WELD-STRIKER
1026523
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
ASM-LATCH,DOOR,LH
2637039
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
ASM-LATCH,DOOR,LH
2639731
|
$34.99 | ||
|
Unavailable |
|||
|
#2
ASM-LATCH,DOOR,RH
2637040
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
ASM-LATCH,DOOR,RH
2639732
|
$34.99 | ||
|
Unavailable |
|||
|
#3
ASM-ACTUATOR,LATCH,LH
2637402
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
ASM-ACTUATOR,LATCH,RH
2637403
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BRKT-TRIM,DOOR
5267829
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BUMPER-DOOR
5417528
|
$0.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
PANEL-DOOR,REAR,LH,BLK
5455214-070
|
$99.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PANEL-DOOR,REAR,RH,BLK
5455215-070
|
$99.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
PANEL-DOOR,FRT,PAINT,LH,RDRBLU
5455960-724
|
$639.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
PANEL-DOOR,FRONT,RH,BLK
5455190-070
|
$139.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
PANEL-DOOR,FRT,PAINT,RH,RDRBLU
5455961-724
|
$639.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
CASTING-DOOR FRAME,LH,BLK
5634424-458
|
$429.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
CASTING-DOOR FRAME,RH,BLK
5634425-458
|
$364.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLIP-U SPEED NUT
7081305
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCR-M6X1X16 TR/TX-M
7518936
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCR-TX TRUSS-#14X3/4, HI/LO ZBK
7519045
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW-TXBH-M6X1.0X12 8.8 ZPB D20
7519063
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
SCREW-HXFLG,M6X1.0X25,10.9
7519297
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
FASTENER-U TYPE CLIP
7670040
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BUSHING-DOOR PIVOT
5266311
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BRKT-DOOR HINGE
5267526
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCR-TXTH-M8X1.25X20 8.8 ZB3 P3
7519997
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCR-TXPH-M6X1.0X15 GR5 ZOD NYL
7518656
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
PIN-DOOR HINGE
7662356
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
E-CLIP,M6, DIN 6799
7710466
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
SLEEVE-SHLD,15.5OD,10 OD,6.5ID
5140211
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
