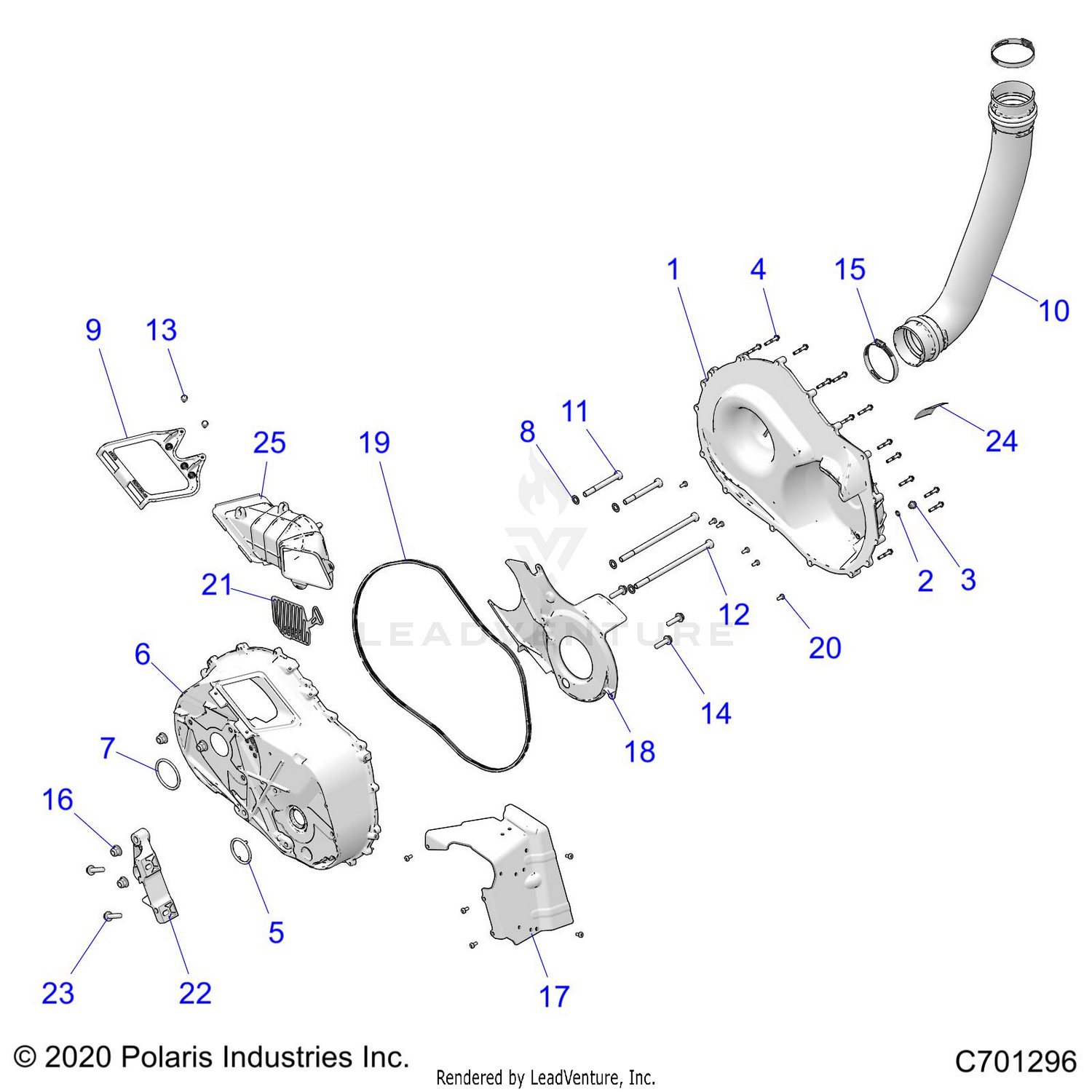

Drive Train, Clutch Cover And Ducting - Z21rau92an/bn (c701296) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ASM-COVER,CLUTCH,OUTER
2637740
|
$224.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
O RING
5410542
Superseded by 5411432
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
PLUG-DRAIN,CLUTCH COVER
5434264
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCR-HXFL-M6X2.0X38 SPC
7521195
|
$12.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
O-RING-2.25X2.625X.21,NBR
5417193
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
O-RING-2.25X2.625X.21,NBR,BARB
5417662
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER-CLUTCH,INNER,MACH
5143119
|
$220.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER-CLUTCH,INNER,MACH
5143977
|
$324.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
O-RING-0.489X0.629X0.070,EPDM
5415647
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER-.510X.840X.031 Y
7555919
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
MOUNT-OUTLET DUCT
5634029
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
ASM-DUCT,CVT,INLET
1241346
|
$154.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCR-TXBH-M12X1.75X110 8.8 SPC
7520945
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCR-TXBH-M12X1.75X245 8.8 SPC
7520946
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCR-TFHFL-M6X1.0X25,ZOD
7519342
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
SCR-HHSEMS-M10X1.5X40 10.9 SPC
7521294
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLAMP-HOSE SLOTTED,92-100 DIA
7081969
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT-HXFL M12X1.75 8 ZOD NYL
7547441
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BRKT-GUARD,CLUTCH COVER
5267038
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BAFFLE-INNER COVER
5457973
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SEAL-CLTCH CVR,SILICONE FOAM
5522259
|
$16.79 | ||
|
Available to order. Add to View Price |
|||
|
#19
SEAL-CLTCH CVR,SILICONE FOAM
5526344
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW-M6X1X14,PN/TX,TRI-LOB
7518914
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BRKT-SCREEN,BELT
5266382
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BRKT-TRANSJOINT,MAG,MACH
5144809
|
$59.99 | ||
|
Unavailable |
|||
|
#23
SCR-HXFL-M10X1.5X1.5 8.8 ZY3
7518531
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
DECAL-BELT,WARNING/CHECK
7177469
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#25
DUCT-CLUTCH,OUTLET
5416601
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
