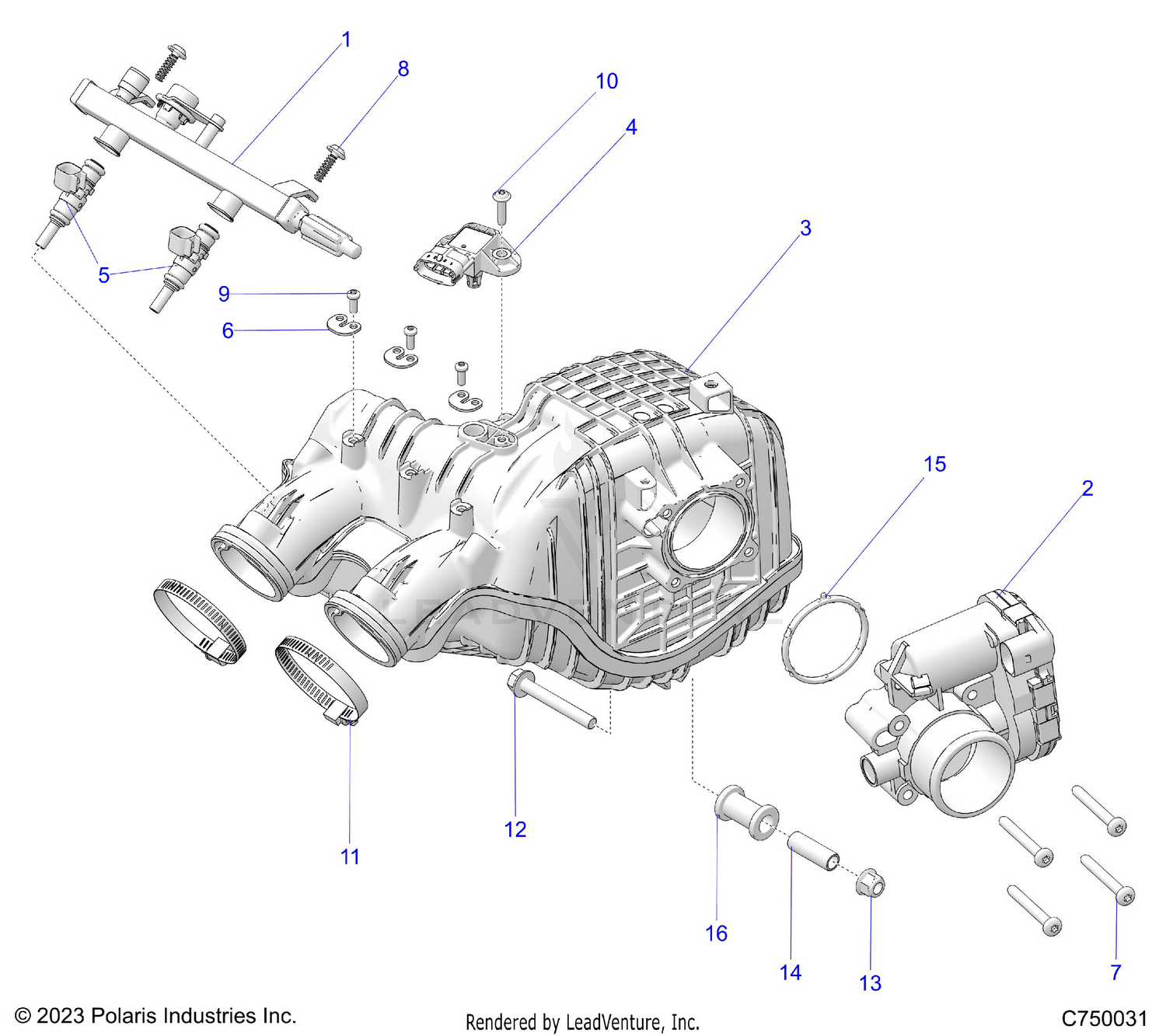

Engine, Air Intake Manifold - R24rsu99aj/ak/az/a9/bj/bk/bz/b9 (c750031) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RAIL-FUEL
2521886
|
$209.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
THROTTLE-ETC,46MM
1204455
|
$664.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
MANIFOLD-INTAKE,COMPOSITE,19
1205891
|
$254.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
MANIFOLD-INTAKE COMPOS,EVAP,19
1205892
|
$284.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SENSOR-TMAP DSS3-TF
2411528
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
INJ-FUEL,EV14COMPACT,200G
2521068
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
O-RING-BOSCH,EV-14,UPPER, BLUE
1500198
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
O-RING GREEN, LOWER
5415066
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
CLIP, INTAKE ROUTING
5258229
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCR-1/4X2 HI/LO-PH-PN TRX-M
7518377
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCR-TXWH-6MMX20MM DELTA PT CLR
7520922
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW-PLASTITE,4.5MM
7519933
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW-PLASTITE,5.0MMX20-PN-T25
7519952
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLAMP, BAND, NARROW
7080413
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
SCR-HXFL-M8X1.25X60 8.8 ZOD
7519298
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
LIMITER-COMPRESSION,AF.0113666
5138678
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
GASKET-ETC,EN.0113664
5813964
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
GROMMET-LX.0113665
5813965
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
