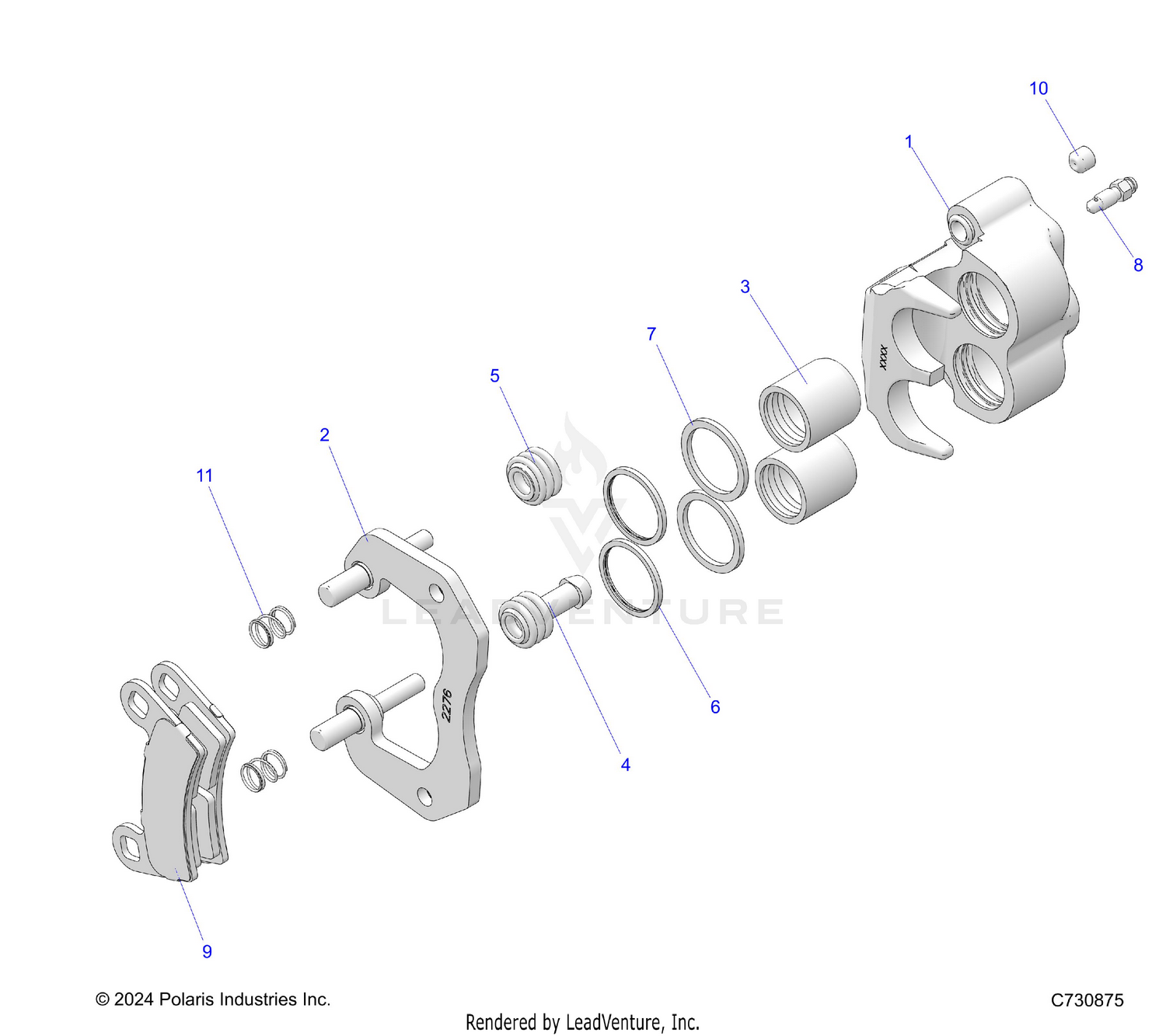

Brakes, Rear Caliper - R24rsu99aj/ak/az/a9/bj/bk/bz/b9 (c700145-1) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ASM-CLPR,DB1.18,LH,GROOVED
1914193
|
$234.99 | ||
|
Unavailable |
|||
|
#1
ASM-CLPR,DB1.18,RH,GROOVED
1914194
|
$234.99 | ||
|
Unavailable |
|||
|
#2
ASM-CALIPER MNT,DB,3.0",APX
1912276
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PISTON-BRAKE,1.188",AL,GROOVED
5138832
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOOT-PIN BUSHING
5412505
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
BOOT-PIN SEAL
5412506
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SQUARE RING-MOLDED (.094)
5410779
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SQUARE RING, MOLDED (.103 X .134)
5410780
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCR-M7X1.0,BLEEDER,OLIVE D
7081343
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
K-ASM,PAD,BRAKE,SB,1.50,SPR
2209280
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
K-BRAKE,HD,PAD,DB1"
2208936
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCR-M10X1.0X8,SOC SET-OD
7518863
|
$11.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
SPRING-COMP,SS
7045868
|
$4.99 | ||
|
Unavailable |
|||
