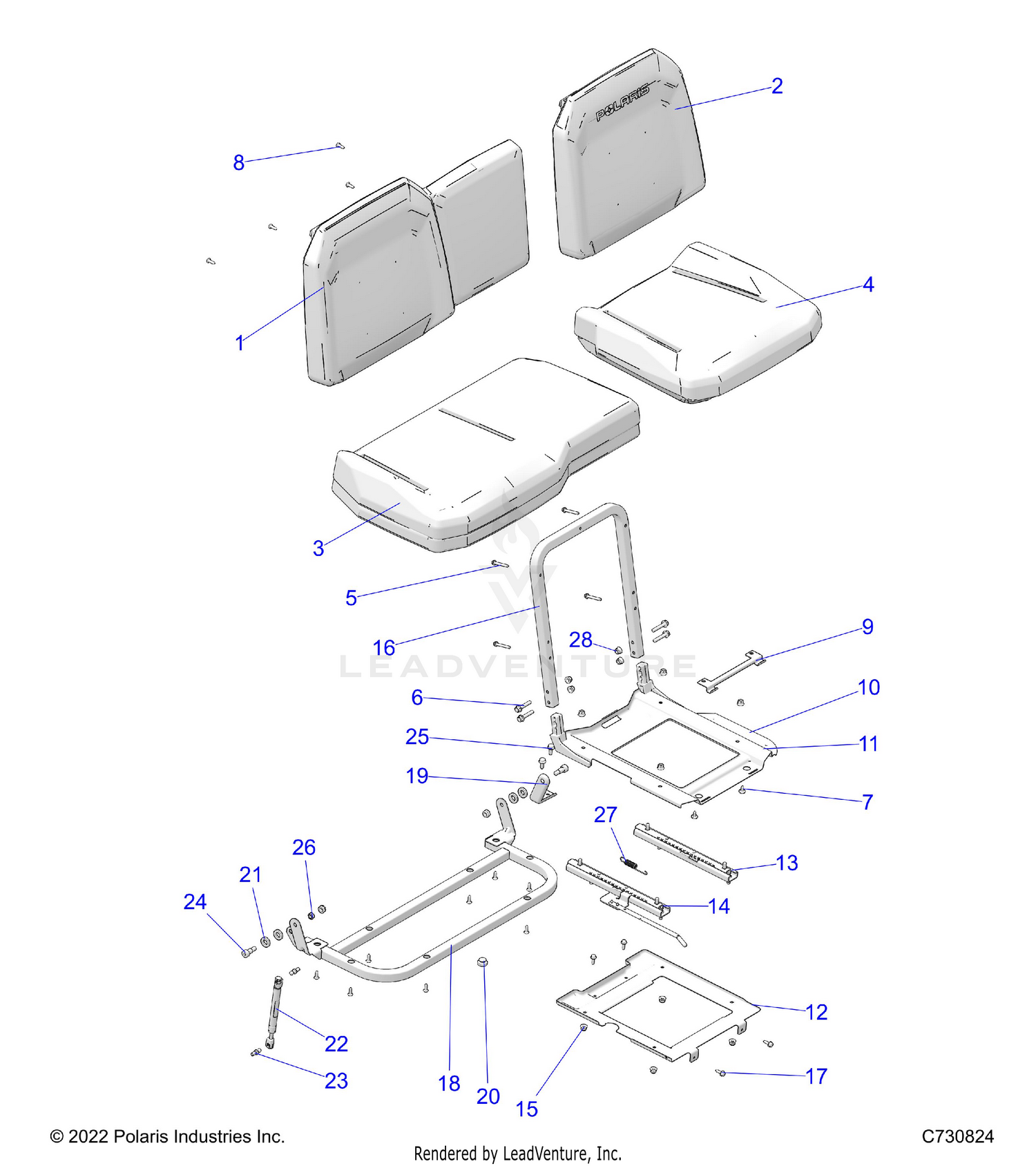

Body, Seat Asm. And Slider - R24rsu99aj/ak/az/a9/bj/bk/bz/b9 (c730824) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ASM-SEAT,BACK,60,BLK/PPC
2692593
|
$399.99 | ||
|
Unavailable |
|||
|
#1
ASM-SEAT,BACK,60,BLACK
2692602
|
$419.99 | ||
|
Unavailable |
|||
|
#2
ASM-SEAT,BACK,40,BLK/PPC
2692594
|
$349.99 | ||
|
Unavailable |
|||
|
#2
ASM-SEAT,BACK,40,BLACK
2692603
|
$364.99 | ||
|
Unavailable |
|||
|
#3
ASM-SEAT,BTM,60,BLK/PPC
2692305
|
$494.99 | ||
|
Unavailable |
|||
|
#3
ASM-SEAT,BTM,60,BLACK
2691813
|
$494.99 | ||
|
Unavailable |
|||
|
#4
ASM-SEAT,BTM,40,FLIP,PPC,DS
2692281
|
$419.99 | ||
|
Unavailable |
|||
|
#4
ASM-SEAT,BTM,40,FLIP,BLK,DS
2691818
|
$444.99 | ||
|
Unavailable |
|||
|
#5
SCR-#14X1-3/4 LG,HI/LO/TAPER-M
7512093
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCR-HXFL-M8X1.25X45 10.9 ZFB
7521332-45
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCR-M6X1X16 TR/TX-M
7518936
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCR-TX TRUSS-#14X3/4, HI/LO ZBK
7519045
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BRKT-SEAT HINGE,DOUBLE,BLK
5265262-458
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
ASM-SLIDE,SEAT
2688492
|
$554.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
WELD-SLIDE,SEAT,TOP,BLK
1023808-458
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BRKT-SEAT,BTM,BLK
5270799-458
|
$79.99 | ||
|
Unavailable |
|||
|
#13
SLIDER-SEAT ADJUSTER,LH,4IN
7082834
|
$64.99 | ||
|
Unavailable |
|||
|
#14
SLIDER-SEAT ADJUSTER,RH,4IN
7082835
|
$64.99 | ||
|
Unavailable |
|||
|
#14
SLIDER-SEAT ADJUSTER,RH,4IN
7083178
|
|||
|
Unavailable |
|||
|
#15
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
TUBE-SEAT,BACK,BLK
5340280-458
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCR-M6X1.0X20,HXHD,FLG,TDFM,BK
7518529
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
WELD-SEAT BASE, PASS, M. BLK
1023099-458
|
$129.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BRKT-SEAT PIVOT, BLK
5263494-458
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BUMPER-RUBBER
5412067
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER-SEATBELT,RUBBER
5813829
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
SHOCK-GAS, 285MM
7044799
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
SHOCK-GAS,285MM
7046186
|
$49.99 | ||
|
Unavailable |
|||
|
#23
BALL-END
7082301
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
BALL-END
7083089
|
$3.49 | ||
|
Unavailable |
|||
|
#24
SCR-SHS-M10X1.5-M12X16 RIE
7519355
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCR-HFH-M8X1.25X20 TAP/R ZPB
7519780
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT-HEX M10X1.5 8 ZOD NYL
7547442
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
SPRING-SEAT SLIDER
7082802
|
$8.99 | ||
|
Unavailable |
|||
|
#28
NUT-HXFL-M8X1.25 8 ZTB NYL
7548028
|
$2.99 | ||
|
Unavailable |
|||
