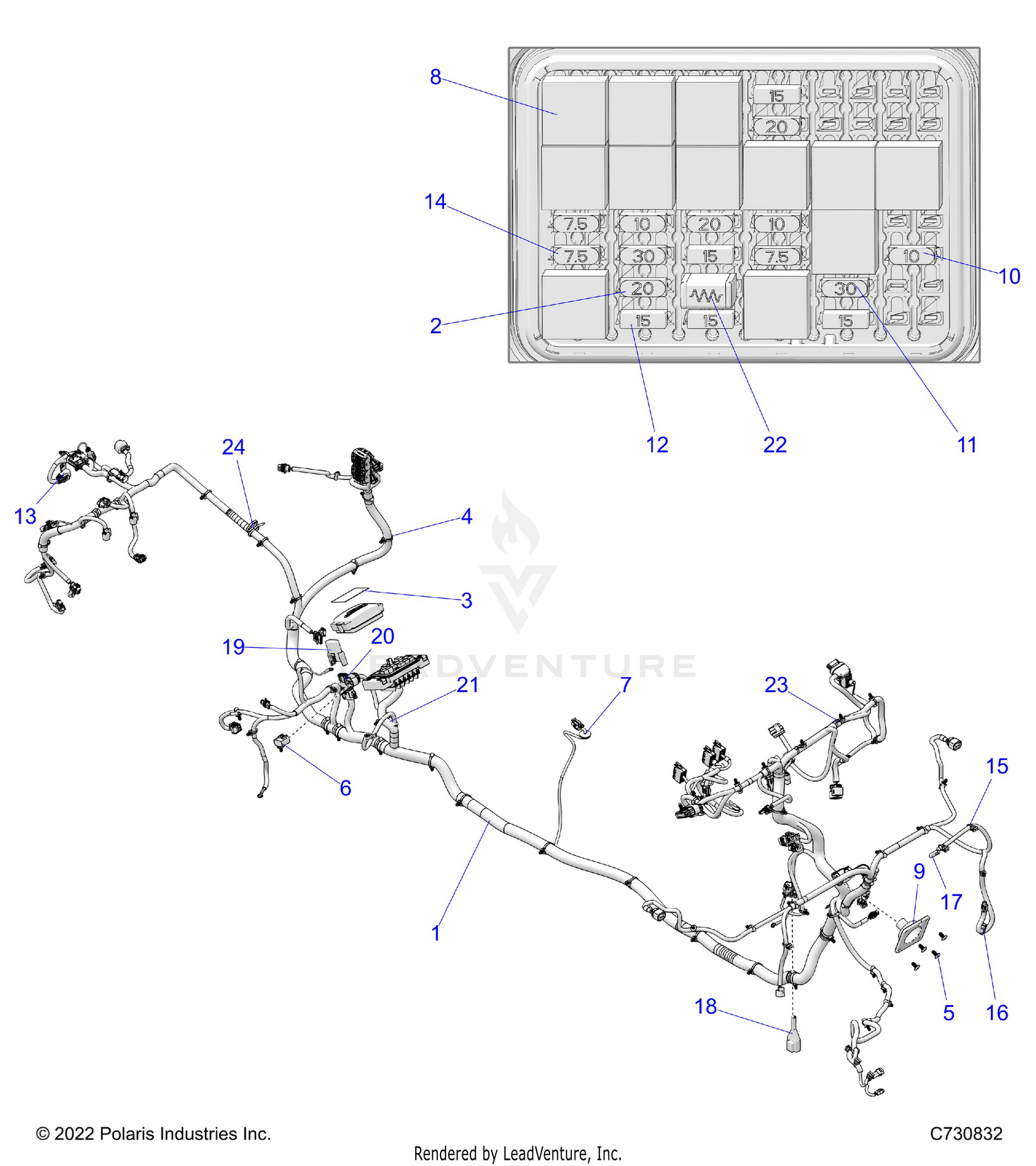

Electrical, Wire Harness - R24rsu99aj/ak/az/a9/bj/bk/bz/b9 (c730832) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HARN-CHASSIS,HVAC,CREW
2417052
|
$1,729.99 | ||
|
Unavailable |
|||
|
#2
FUSE, 20 MINI BLADE 58V
2434017
Superseded by 4012811
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
DECAL-RELAY/FUSE BLOCK, HVAC,RC
7300825
|
$12.99 | ||
|
Unavailable |
|||
|
#4
CLIP FIR-TREE,DIA6-33MM
7081496
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
CLIP-FIR TREE,DART,6.35MM
7670090
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
COVER-DIAGNOSTIC,W/CLIP
4012170
|
$10.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
GROMMET - USB, 3 MM, 22 MM DIA
5415308
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
RELAY-SPST,12V,20A,EPXY,HFA
4016819
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
GROMMET - 65MM, W/FLANGE, BLK
5814560
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
FUSE-IGNITION,10 AMP
2434016
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
FUSE-MAIN,30 AMP
2434015
|
$9.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
FUSE-15AMP,MINI BLADE
2410280
Superseded by 4010859
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
COVER-FUSEHOLDER
4012260
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
FUSE - 7.5, MINI BLADE (BROWN)
4011068
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLIP-EDGE,HARNESS
7081890
|
$12.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
CLIP-EDGE,1-3MM,6-45MM,SERT.
7081808
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
CAP - VINYL, 125X375, BLACK
5438230
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
THROTTLE-CON BOOT
4080238
|
$11.99 | ||
|
Unavailable |
|||
|
#19
HOLDER-FUSE,SEALED
4018207
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
FUSE-MAXI,50A
4017180
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
TVS, 30 VOLT
4013200
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
RESISTOR, 68 OHM, MINI
4013062
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLIP-OFFSET,FT6 FIR TREE
7082405
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
CABLE-TIE,DIA6-38MM,DUAL-LOOP
7081916
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
