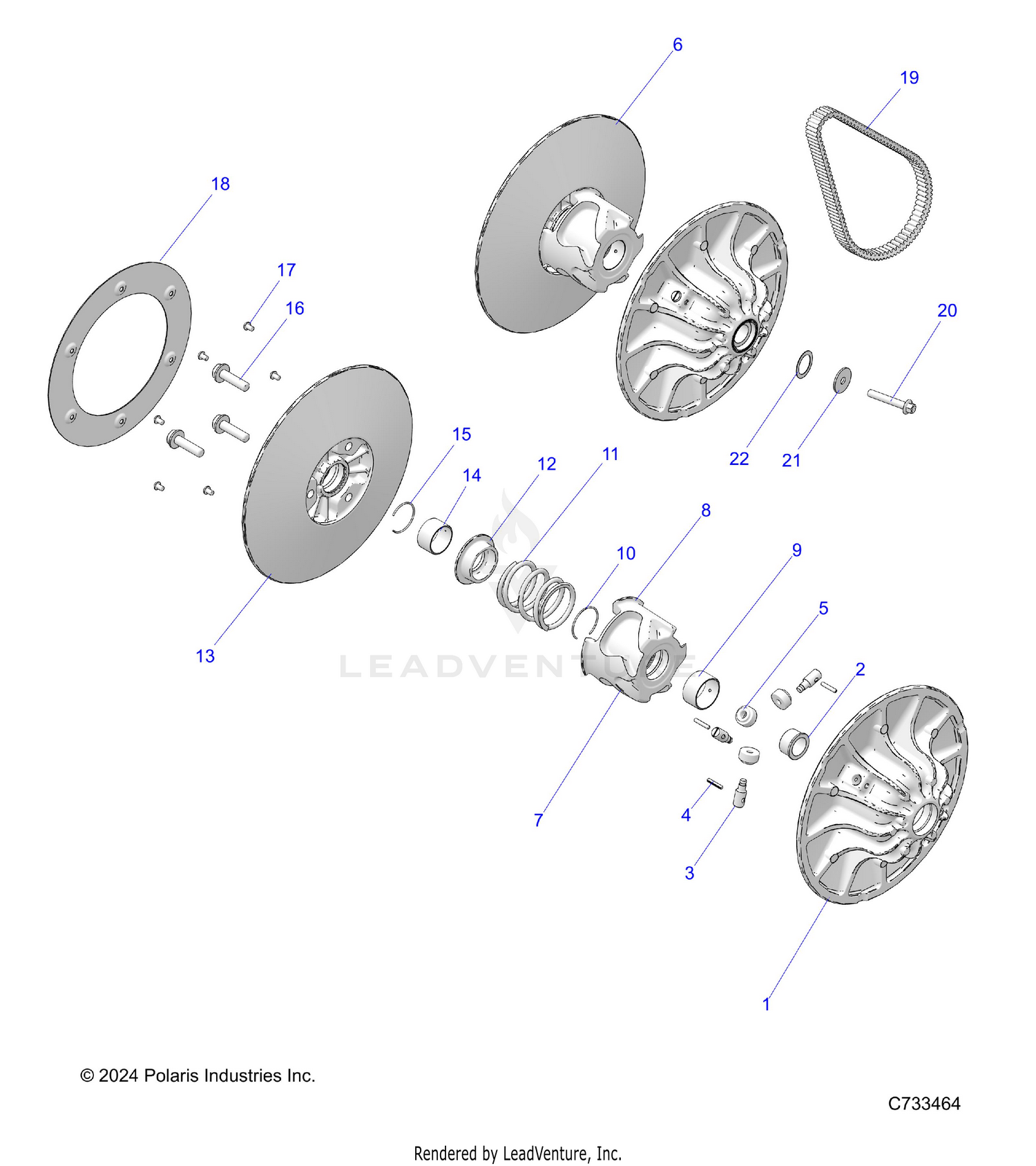

Drive Train, Secondary Clutch - R24rsu99aj/ak/az/a9/bj/bk/bz/b9 (c733464) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ASM-DRIVEN,STAT,P90X,HD
1327121
|
$279.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BUSHING-P90X,29X22X17
5141303
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN-DRIVEN,ROLLER,12MM,CAP
5143130
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING-PIN-4X22,JIS B 2808
7662377
|
$2.99 | ||
|
Unavailable |
|||
|
#5
ROLLER-8X22X12.5,PAI,CAP
5456608
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
ASM-DRIVEN,MOVEABLE,P90X,HD
1323790
|
$499.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
ASM-HELIX,MAC,36048BA67
1323791
|
$219.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
HELIX,MACH,36-48BA67
5143504
|
$219.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BEARING-MU,35X20
3515175
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
RING-SNAP,INT,39X1.5
7710934
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
SPRING,DRIVEN
7044761
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
CUP-DRIVEN SPRING,P90X
5634403
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
ASM-MOVEABLE SHEAVE
1323812
|
$169.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BEARING-MU,32X36X20
3515162
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
RING-SNAP,INT,36X1.5
7710935
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
SCR-HHSEMS-M10X1.5X40 10.9 SPC
7521294
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCR-TXBH-M5X0.8X8 SPC TRILOBE
7521023
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
PLATE-WINDAGE,DRIVE
5269528
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BELT-DRIVE
3211186
|
$199.99 | ||
|
Unavailable |
|||
|
#19
BELT-DRIVE,12.1CD,HDY
3212358
|
$259.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCR-HXFL-M8X1.25X50 10.9 ZPB
7521306
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
WSHR-8.4X30. 0X2.0 ZPB
7556219
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
SHIM-RING,23.25X32.25X0.5
7557060
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
SHIM-RING,23.25X32.25X2.28
7557178
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
