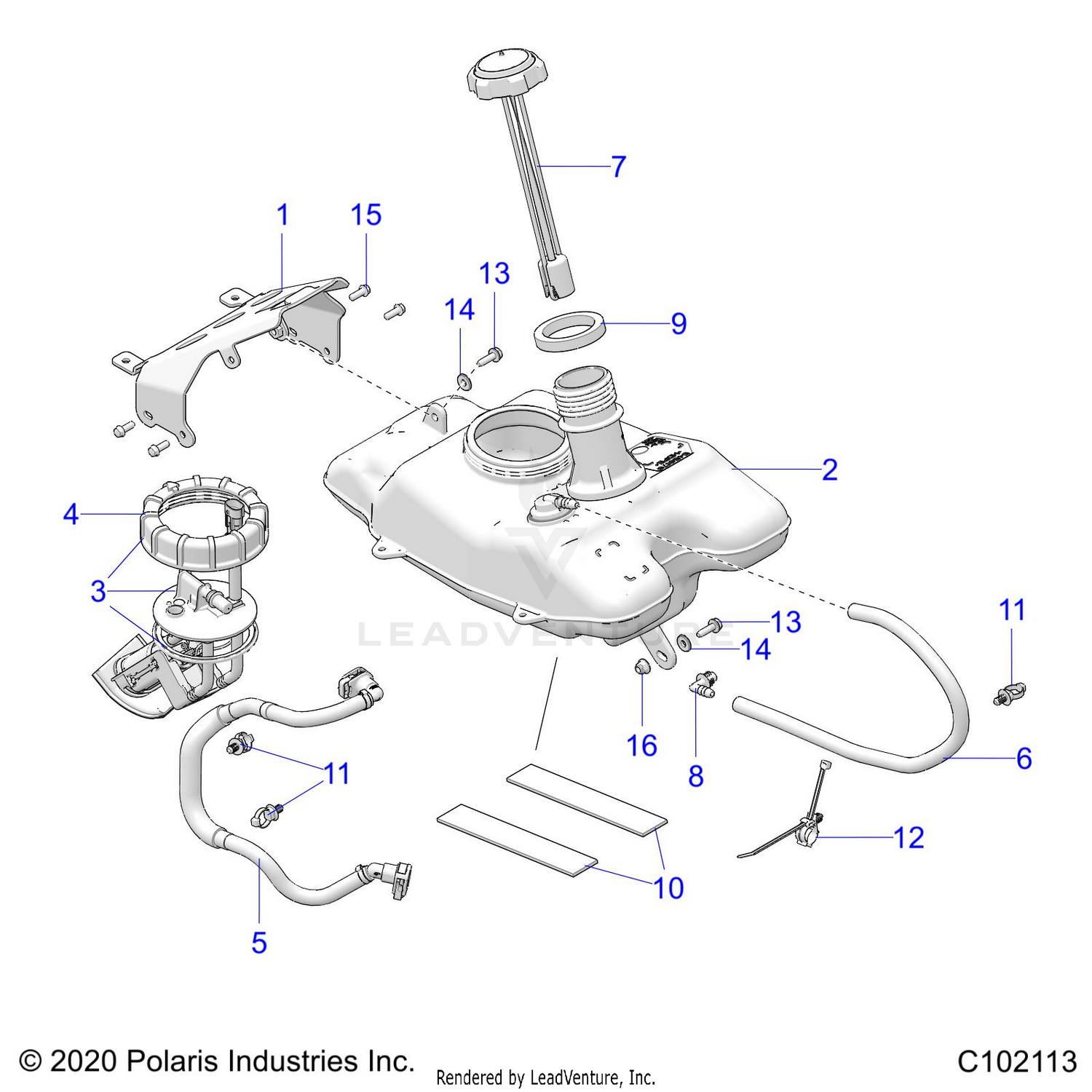

Fuel System, Fuel Tank Asm. - A23hbe07b2 (c102113) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WELD-SEAT BASE,TANK,BLK
1025032-458
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
ASM-FUEL TANK W/PUMP
2522169
|
$419.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
K-FUEL PUMP
2208422
|
$409.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT-MASON JAR
5437138
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
ASM-FUEL LINE
2522170
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
ASM-RO VALVE TO FRAME
2522182
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CAP-GAS W/GAUGE,241MM
2884214
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
FITTING-VENT LINE,RND,90,1/4"
5453906
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SEAL-FOAM,FUEL FILL NECK
5814872
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
PAD-FOAM
5814903
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLIP-ROUTING
7082599
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
STRAP-PANDUIT,DOUBLE,LOOP,CLIP
7082650
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCR-TFHFL-M6X1.0X20 S/R ZOD
7519278
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
SCR-TFHFL-M6X1.0X20 ZOD
7519279
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER-.28X.62-.14(RBR-BK)-Z
7555748
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCR-HXFL,M6X1.0X16 8.8ZY3DL204
7519329
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
