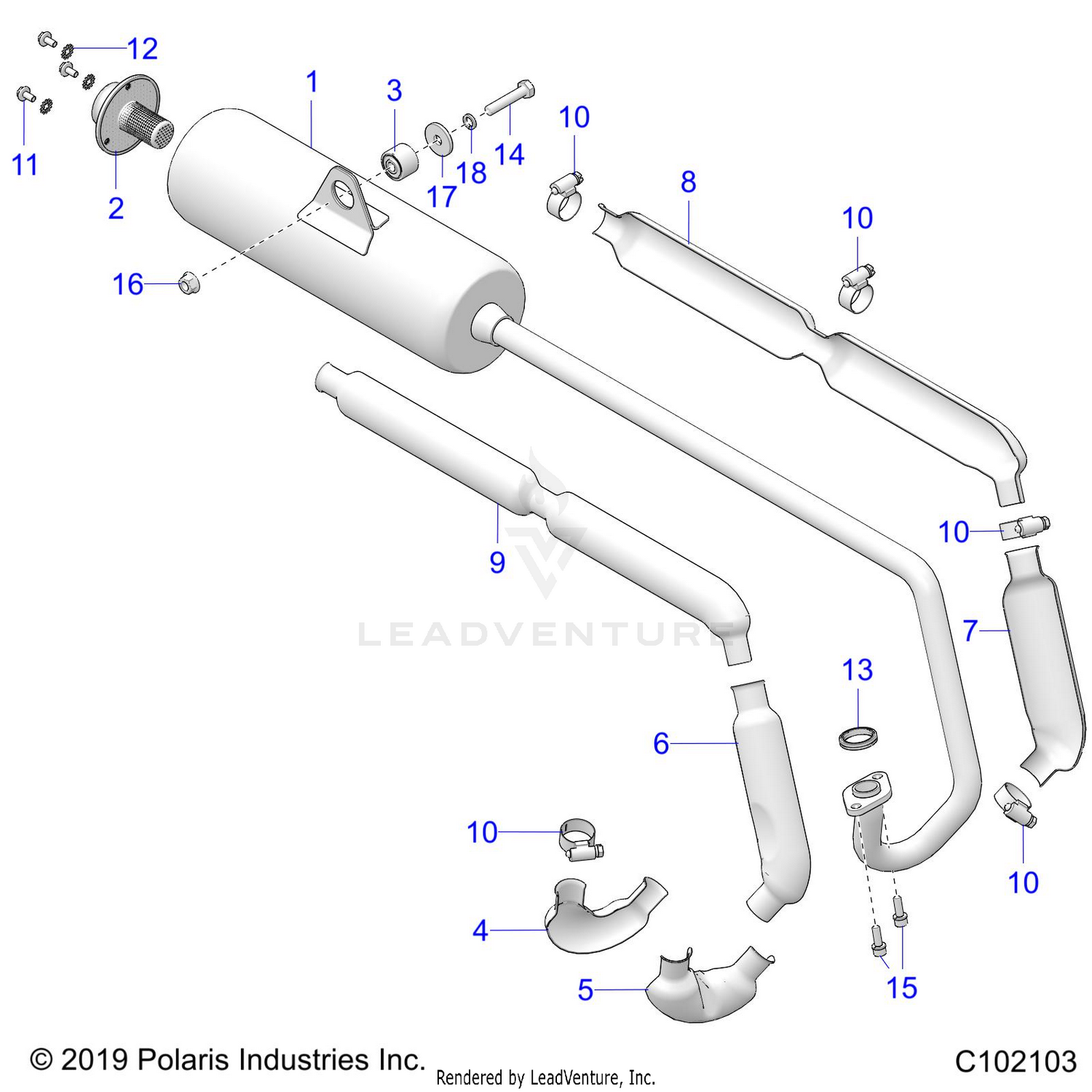

Engine, Exhaust - A23hbe07b2 (c102103) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ASM-EXHAUST
1263365
|
$439.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
WELD-SPARK ARRESTOR,150
1263023
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
ISOLATOR-EXHAUST BRACKET
5417606
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SHIELD-PIPE,FRONT,INNER
5267892
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SHIELD-PIPE,FRONT,OUTER
5267893
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHIELD-PIPE,MID,INNER
5267894
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SHIELD-PIPE,MID,OUTER
5267895
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SHIELD-PIPE,REAR,OUTER
5267897
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SHIELD-PIPE,REAR,INNER
5267915
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLAMP-HOSE, 2.00-SS
7082359
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCR-HXFLTX-M5X.8X10 8.8ZOD TDF
7519068
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER-.197X.50 INT/EXT LK-Y
7571602
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
GASKET-EXHAUST SEAL
3050354
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCR-M8X1.25X40 HX/CP SS
7518258
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCR-SH-M6X1.0X18 9.8 ZY3 SEMS
7521188
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT-HXFL-M8X1.25 10 SPC
7548015
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER-RETAINING,8.5X28X3
7555982
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
WSHR-FLAT-M8X2.0 LARGE ZTB
7558715
|
$15.99 | ||
|
Unavailable |
|||
|
#18
WASHER-LOCK M8X12.7ODX2MM ZY3
7556111
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
