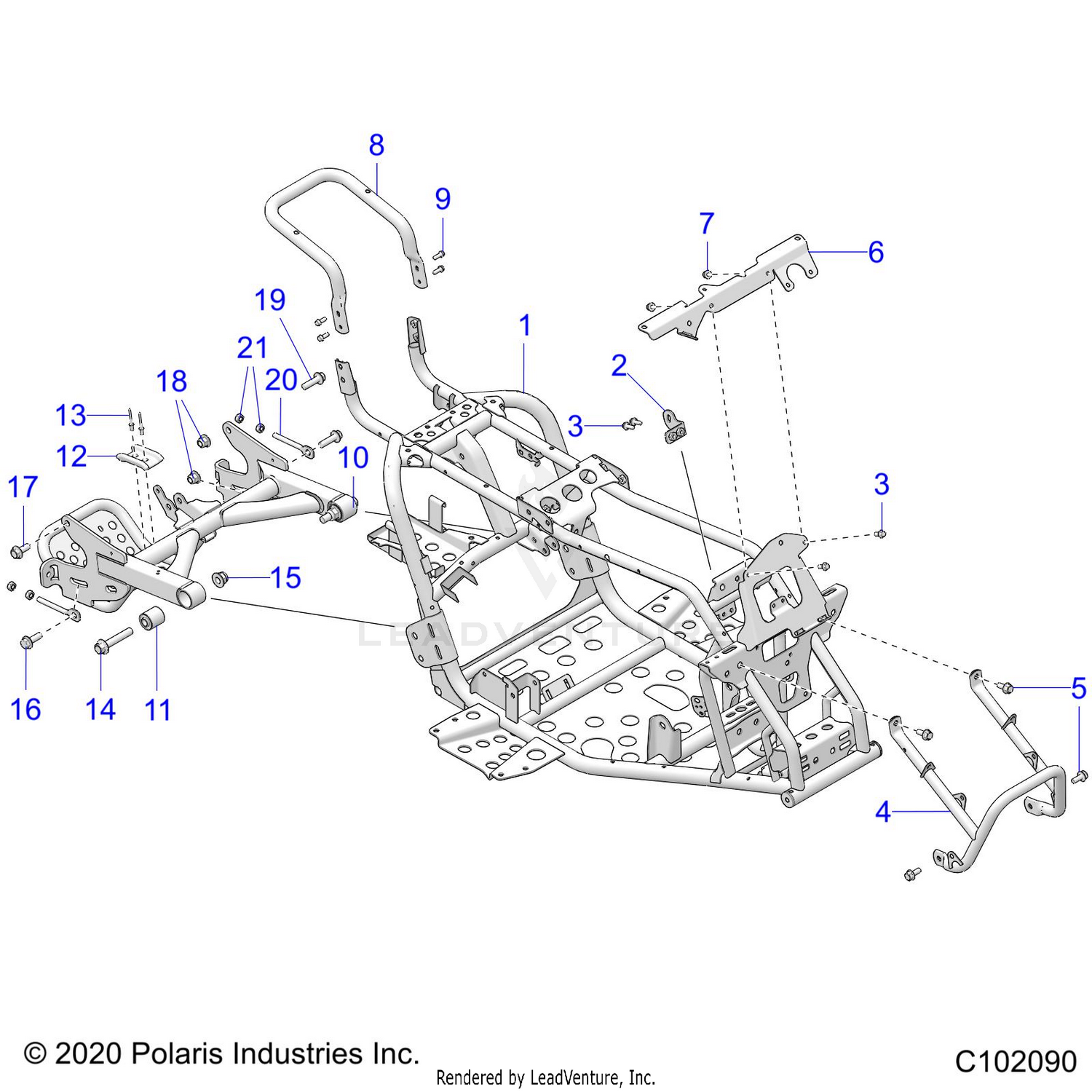

Chassis, Frame Asm And Swingarm - A23hbe07b2 (c102090) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MAIN FRAME,BLK
1024733-458
|
$3,394.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
WELD-MNT,TANK,BLK
1025979-458
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW-M6X1.0X16.0MM HEX-FL-Y/D
7518637
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BUMPER,FRONT,BLK
1024992-458
|
$289.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW-HXFL-M8X1.25X20 8.8 ZOD P3
7519133
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRACKET-MOUNT,CAB,FRONT,UPPER,BLK
5268027-458
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT-M6 FLANGE,NYLOC
7547274
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
TUBE-REAR GRAB,BLK
5341587-458
|
$144.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCR-HXFL,M6X1.0X16 8.8ZY3DL204
7519329
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
REAR SWINGARM,GZ,M.BLK
1024734-458
|
$544.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BUSHING-SWINGARM PIVOT
5416101
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
GUIDE-CHAIN
5455953
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
RIVET-BLND-3/16,BDY DIA,120 DEG
7662100
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW-HXFL-M12X1.75X65 ZOD P80
7519264
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT-HXFL M12X1.75 8 ZOD NYL
7547441
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCR-HXFL-M10X1.25X30 8.8 ZOD
7519059
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCR-M10X1.25X25 10.9 HXFL ZOD
7519829
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT-M10X1.5,HXFLG, NYLON INS
7547313
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
SCR-HXFL-M10X1.5X35 8.8 ZPC
7518644
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCR-EYELET-M8X1.25X63 10.9 ZFB
7521181
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT-HEX-M8X1.25 10 ZFC
7547998
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
