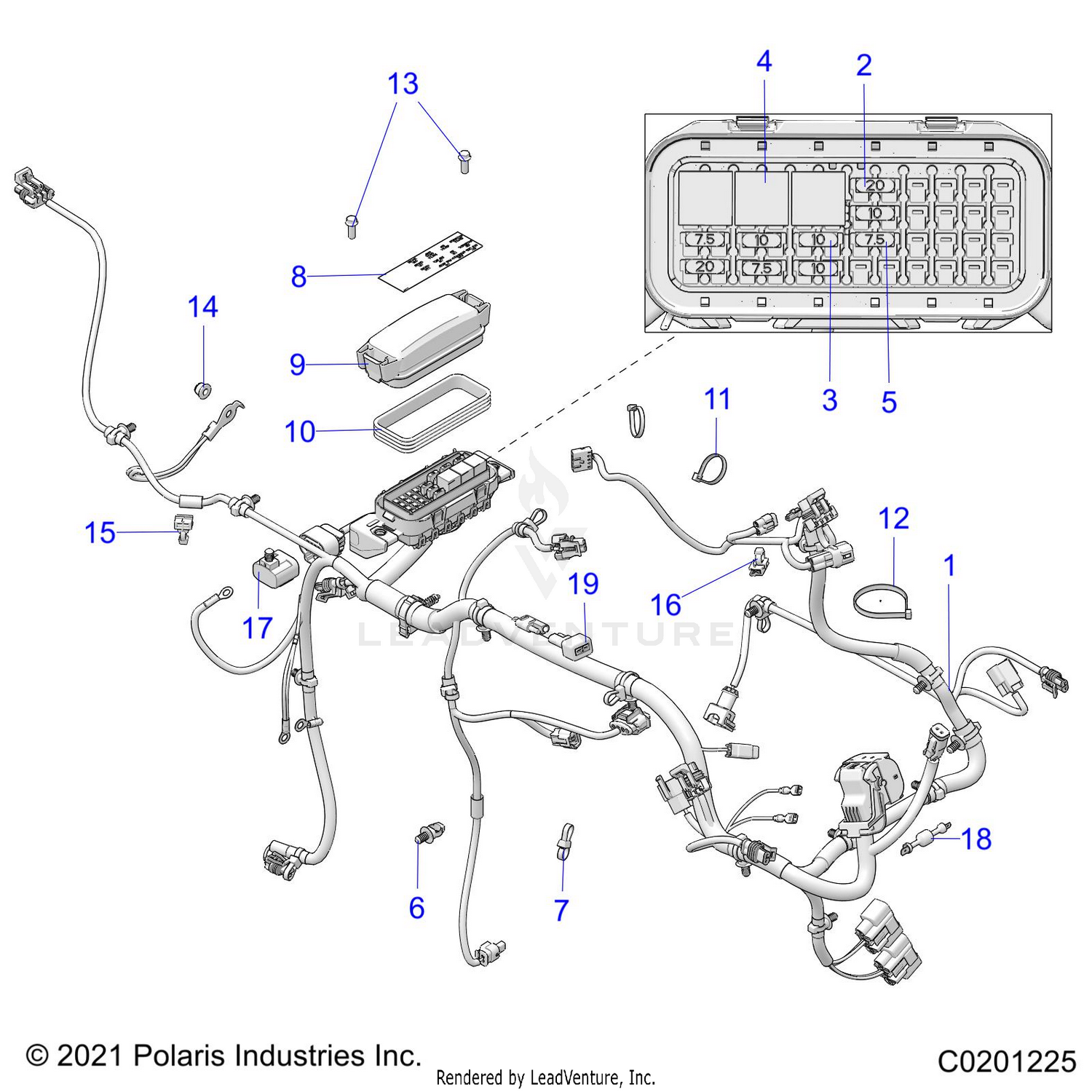

Electrical, Wire Harness And Fuses - A23hbe07b2 (c0201225) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HARN-CHASSIS
2416221
|
$549.99 | ||
|
Unavailable |
|||
|
#2
FUSE, 20 MINI BLADE 58V
2434017
Superseded by 4012811
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
FUSE-IGNITION,10 AMP
2434016
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
RELAY-SPST,12V,20A,EPXY,HFA
4016819
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
FUSE - 7.5, MINI BLADE (BROWN)
4011068
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
CLIP FIR-TREE,DIA6-33MM
7081496
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
CABLE-TIE,DIA6-38MM,DUAL-LOOP
7081916
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
LABEL-FUSE BOX
7191490
|
|||
|
Available to order. Add to View Price |
|||
|
#9
COVER- FUSE BOX, 48 WAY
4015011
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SEAL, FUSE CENTER
5415598
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
CABLE-TIE,10-102MM,WEATH.-RES.
7080761
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCR-HXFL,M6X1.0X16 8.8ZY3DL204
7519329
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT-M6 FLANGE,NYLOC
7547274
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
CLIP-EDGE,HARNESS
7082398
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLIP-EDGE, 1-3mm THICKNESS
7082402
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
COVER-DIAGNOSTIC,W/CLIP
4012170
|
$10.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
DIODE - 6 AMP, 1/4, 3/16 TERM
2411035
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
DIODE - 6 AMP, 1/4, 3/16 TERM
2410000
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
