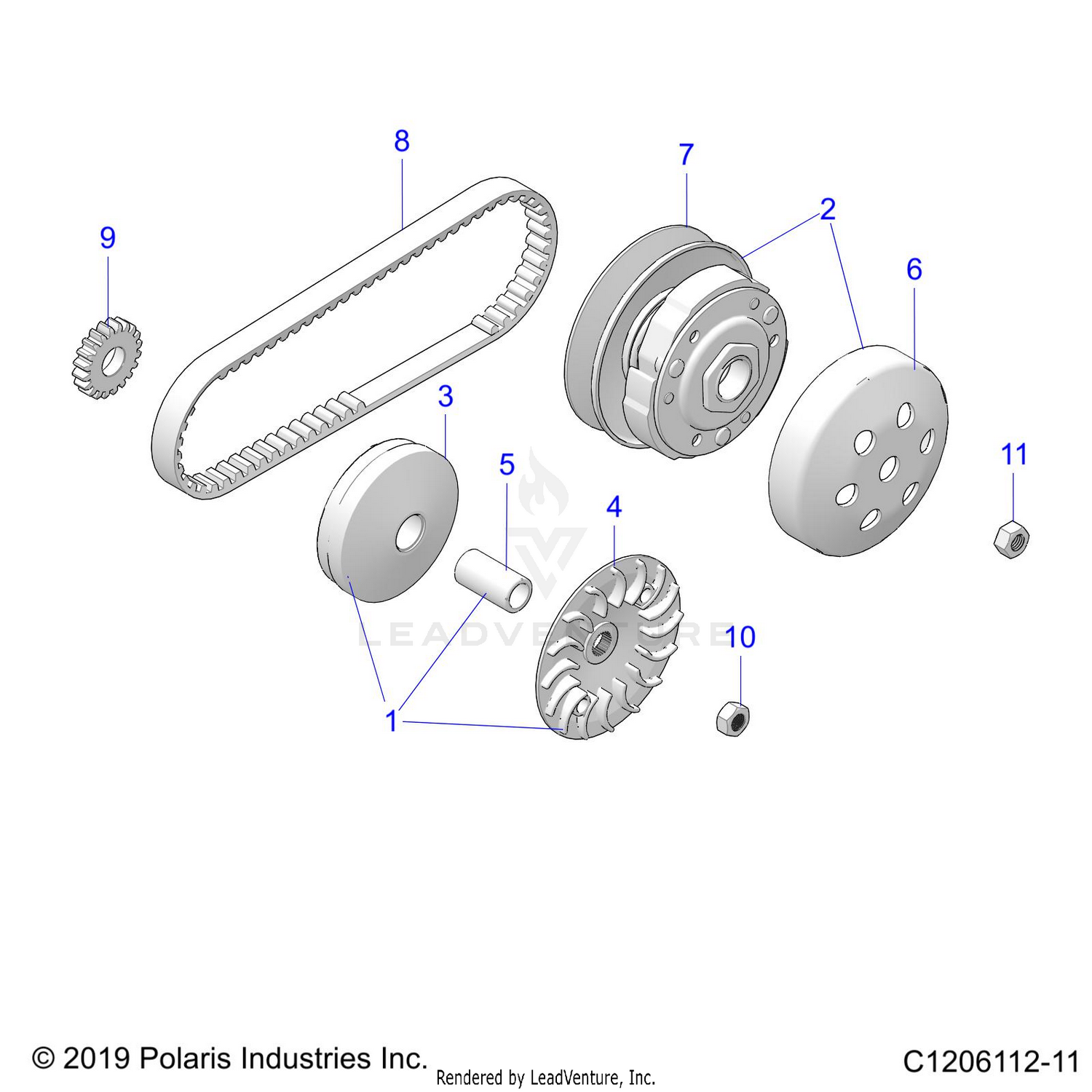

Drive Train, Clutches - A23hbe07b2 (c1206112-11) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ASSEMBLY, DRIVE PULLEY
3023897
|
$239.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
ASSEMBLY, DRIVEN PULLEY
3023898
|
$329.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
ASSEMBLY, DRIVE-DRIVEN CLUTCH
3023899
|
|||
|
Unavailable |
|||
|
#4
PULLEY, DRIVE
3023900
|
|||
|
Unavailable |
|||
|
#5
SLEEVE, DRIVE GEAR
3023901
|
|||
|
Unavailable |
|||
|
#6
ASSEMBLY, FRICTION DISK, CLUTCH
3023902
|
|||
|
Unavailable |
|||
|
#7
ASM, DRIVEN PULLEY, CENTL BLOCK
3023903
|
|||
|
Unavailable |
|||
|
#8
V-BELT
3023904
|
$129.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
GEAR, DRIVEN, STARTER
3023905
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
CHECK NUT M12×1.25
3050367
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, HEX FLANGE M10×1.25
3023906
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
