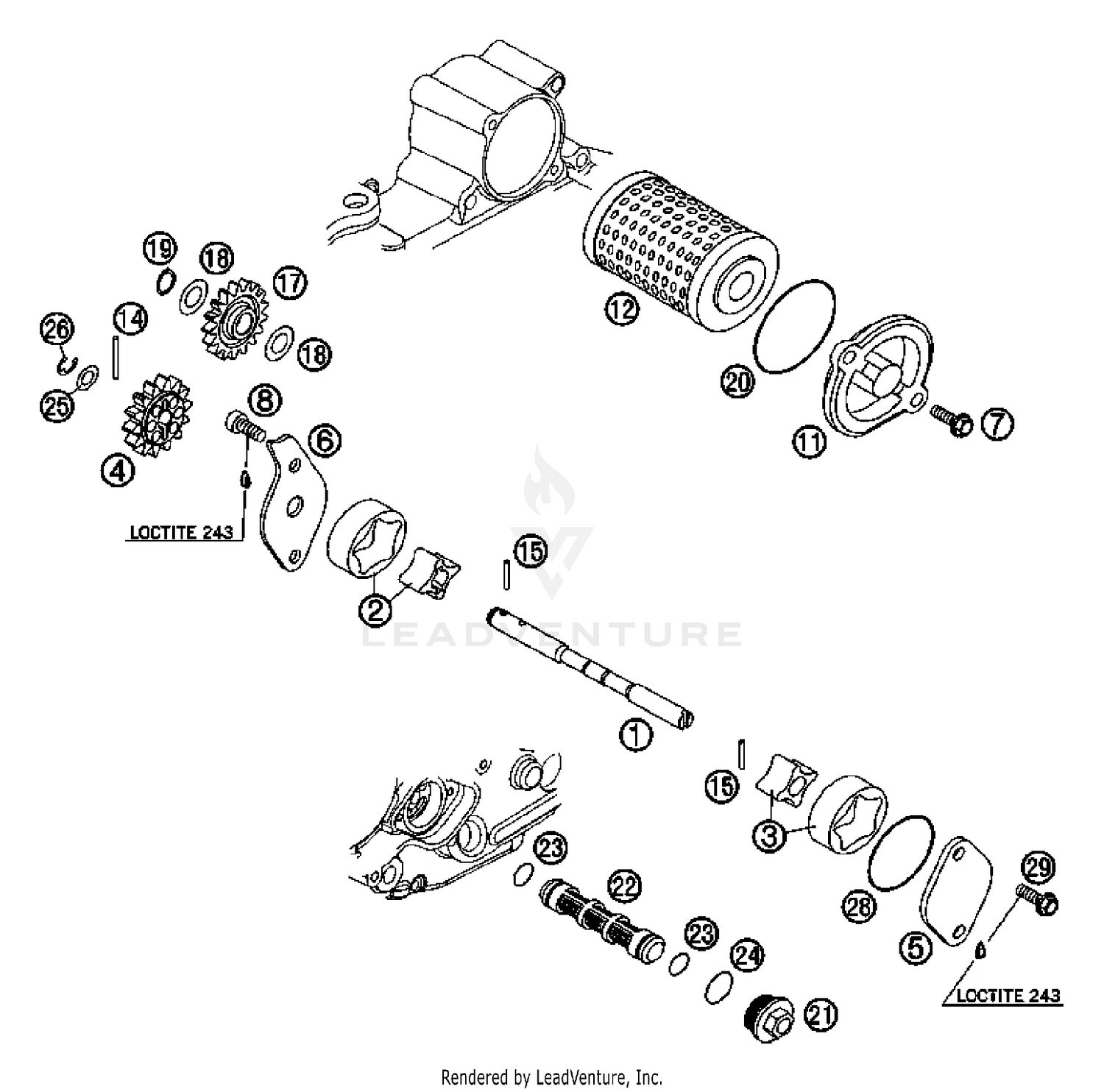

Lubricating System Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
OIL PUMP SHAFT EXC-F
77038102000
|
$23.20 | ||
|
Available to order. Add to View Price |
|||
|
#2
OILPUMP ROTOR CPL. 10MM G-73R
59038011010
|
$38.27 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
OILPUMP ROTOR 15MM G-164
77038011000
|
$51.47 | ||
|
Available to order. Add to View Price |
|||
|
#4
OIL PUMP GEAR 14-T
77038001000
|
$55.65 | ||
|
Available to order. Add to View Price |
|||
|
#5
OIL PUMP COVER L/S 05
77038004000
|
$20.23 | ||
|
Available to order. Add to View Price |
|||
|
#6
OIL PUMP COVER R/S 05
77038003100
|
$14.18 | ||
|
Available to order. Add to View Price |
|||
|
#7
HH collar screw M5x16 TX30
0015050163
Superseded by 0025050166
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
AH SCREW DIN6912-M 5X12
0984050122
|
$1.62 | ||
|
Available to order. Add to View Price |
|||
|
#11
OIL FILTER COVER RACING
59038041000
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
OIL FILTER WITH GASKET 06
77038005000
Superseded by 77038005044
|
$10.22 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
NEEDLEROL.DIN5402 NRA 2,5X19,8
0402251980
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
NEEDLE ROLLER DIN5402 2,5X11,8
0402251180
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
OILPUMP IDLER GEAR 08
77038006000
Superseded by 77038006100
|
$11.65 | ||
|
Available to order. Add to View Price |
|||
|
#18
SHIM WASHER DIN0988-12X18X0,50
0988121805
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
retaining ring DIN 471 12x1
0471120010
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
O-RING 40,00X2,50 NBR 70
0770400025
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
PLUG M20X1,5 WS=13
59038017000
Superseded by 59038017100
|
$9.23 | ||
|
Available to order. Add to View Price |
|||
|
#22
Oil screen
59038016000
Superseded by 59038016200
|
$8.24 | ||
|
Available to order. Add to View Price |
|||
|
#23
O-RING 12,5X1,5 NBR
0770125015
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
O-RING 17,17X1,78 GLO
0770020170
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
STOP DISK 8,1 X 15 X 0,5
58038007755
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
TAB WASHER DIN6799-RS 6,0
0799060000
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
O-RING 32,00X2,00
0770320020
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
HH collar screw M5x12 TX30
0015050123
Superseded by 0025050126
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
