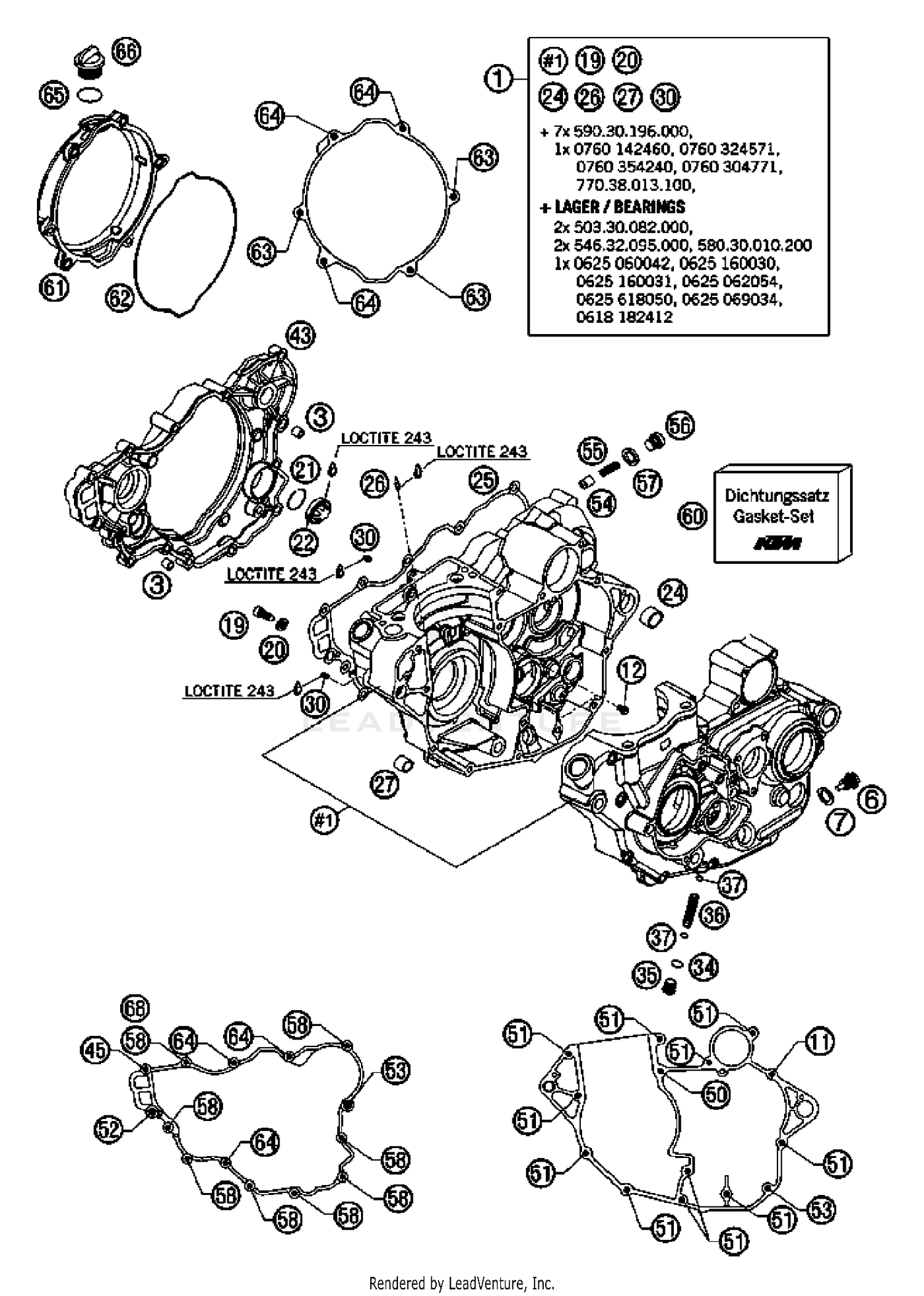

Engine Case Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ENGINE CASE CPL. 250 SX-F 07
77030000144
|
$1,000.59 | ||
|
Available to order. Add to View Price |
|||
|
#3
DOWEL 9,8 X7X10
49030090000
Superseded by 49030090100
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
oildrain plug with magnet
58030021000
Superseded by 58030021100
|
$13.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
CU-SEAL RING DIN7603-12X18X1,5
58038022000
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
HH collar screw M6x40 TX30
0015060403
Superseded by 0025060406
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
HH collar screw M6x8 TX30
0015060083
Superseded by 0025060086
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
LOCATING SCREW M8 L=23
58030080000
|
$14.84 | ||
|
Available to order. Add to View Price |
|||
|
#20
CU-SEAL RING 8 X 14 X 3
58030081000
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
CIRCLIP OIL LEVEL GLASS 03
61030019050
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
OIL SIGHT GLASS
59030019000
Superseded by 59030019200
|
$25.07 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
DOWEL 17 X 19 X 12
59030024000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#25
GASKET FOR CLUTCH COVER 05
77030025100
|
$20.78 | ||
|
Available to order. Add to View Price |
|||
|
#26
OIL JET 70 M6X0,75 WS8 03
60030064070
|
$13.52 | ||
|
Available to order. Add to View Price |
|||
|
#27
DOWEL BUSHING 13,8X11X12
54630027000
|
$8.13 | ||
|
Available to order. Add to View Price |
|||
|
#30
JET 100 BING(44-031/180) M4
59030058000
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
O-RING 12,00X2,00 NBR 70
0770120020
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
SCREW PLUG
59038014100
Superseded by 77038017000
|
$19.79 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#36
OIL SCREEN 11,8x44,5MM
59038015000
Superseded by 59038015100
|
$14.84 | ||
|
Available to order. Add to View Price |
|||
|
#37
O-RING 9x1,5 V80 SH
0770090015
Superseded by 07700900151
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#43
CLUTCH COVER CPL.
77030001044
|
$112.49 | ||
|
Available to order. Add to View Price |
|||
|
#45
HH collar screw M6x35 TX30
0015060353
Superseded by 0025060356
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#50
HH COLLAR SCREW M 6X65 WS=8
0015060653
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#51
HH collar screw M6x50 TX30
0015060503
Superseded by 0025060506
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#52
HH collar screw M6x40 TX30
0015060403
Superseded by 0025060406
|
$3.99 | ||
|
Unavailable |
|||
|
#53
HH collar screw M6x30 TX30
0015060303
Superseded by 0025060306
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#54
VALVE PISTON D=10MM
58038028000
|
$44.43 | ||
|
Available to order. Add to View Price |
|||
|
#55
PRESSURE SPRING L=25MM D=1MM
58038023300
|
$6.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#56
threaded plug DIN 908 M12x1.5
0908120153
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#57
CU-SEAL RING DIN7603-12X18X1,5
58038022000
|
$2.99 | ||
|
Unavailable |
|||
|
#58
HH collar screw M6x25 TX30
0015060253
Superseded by 0025060256
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#60
GASKET SET
77030099000
Superseded by 77030099001
|
$324.71 | ||
|
Available to order. Add to View Price |
|||
|
#61
CLUTCH COVER OUTSIDE 09
77030026100
Superseded by 7703002630015
|
$93.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#62
MOLDED RING 05
77030027000
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#63
HH collar screw M6x25 TX30
0015060253
Superseded by 0025060256
|
$3.99 | ||
|
Unavailable |
|||
|
#64
HH COLLAR SCREW M 6X55 WS=8
0015060553
|
$1.19 | ||
|
Available to order. Add to View Price |
|||
|
#65
O-RING 19,00X3,00 NBR
0770191015
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#66
oil plug cpl. M24x3
58030020000
Superseded by 58030020100
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#68
CU-SEAL RING DIN7603-6X10X1
0603061001
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
