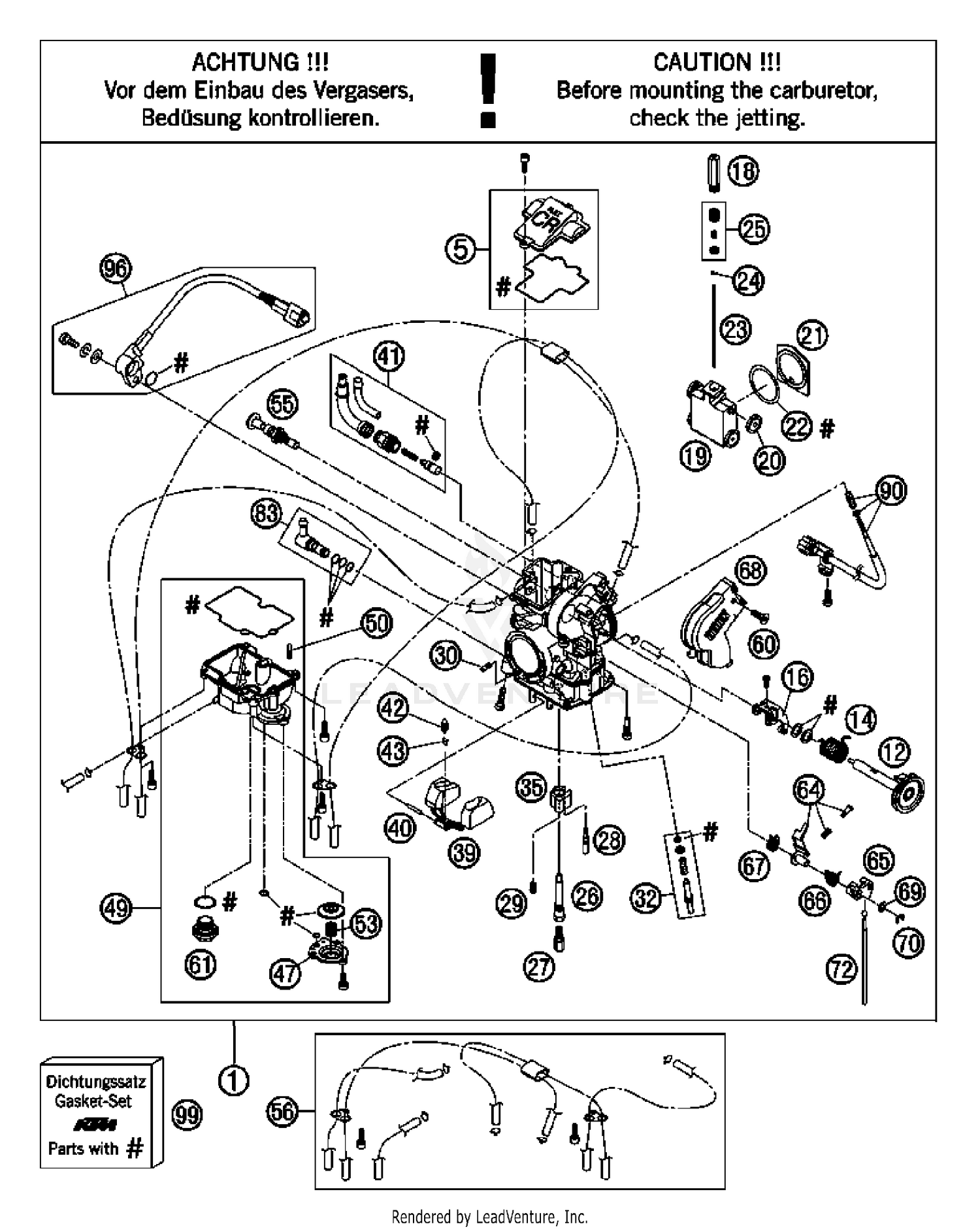

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARB FCR-MX 3925E,TPS 07
77031001000
Superseded by 77031001200
|
$1,068.37 | ||
|
Available to order. Add to View Price |
|||
|
#5
CARBURETOR COVER WITH GASKET
57331027044
|
$46.19 | ||
|
Available to order. Add to View Price |
|||
|
#12
THROTTLE SHAFT CPL. 06
57331046100
|
$110.34 | ||
|
Available to order. Add to View Price |
|||
|
#14
COIL SPRING THROTTLE SHAFT
57331046050
|
$10.77 | ||
|
Available to order. Add to View Price |
|||
|
#16
LINK ARM THROTTLE VALVE CPL.
57331035051
|
$99.87 | ||
|
Available to order. Add to View Price |
|||
|
#18
SLIDE STOP 03
59031029010
|
$16.82 | ||
|
Available to order. Add to View Price |
|||
|
#19
THROTTLE VALVE CPL.
57331035000
|
$405.89 | ||
|
Available to order. Add to View Price |
|||
|
#20
BUSHING THROTTLE VALVE
59031035050
|
$12.53 | ||
|
Available to order. Add to View Price |
|||
|
#21
GASKET PLATE THROTTLE VALVE 04
57331035153
|
$225.71 | ||
|
Available to order. Add to View Price |
|||
|
#22
GASKET WASHER THROTTLE VALVE
59031035052
|
$21.11 | ||
|
Available to order. Add to View Price |
|||
|
#23
JET NEEDLE KEIHIN OBETP
59031034100
|
$34.31 | ||
|
Available to order. Add to View Price |
|||
|
#23
JET NEEDLE KEIHIN OBETN
59031034200
|
$30.79 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
JET NEEDLE KEIHIN OBETQ
59031034300
|
$28.23 | ||
|
Available to order. Add to View Price |
|||
|
#24
BAR CLIP
59031029000
|
$6.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
NEEDLE SET SCREW CPL.
57331032000
|
$47.18 | ||
|
Available to order. Add to View Price |
|||
|
#26
NEEDLE JET FCR-MX
59031121000
|
$38.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
MAIN JET 162 KEIHIN
54531623162
|
$14.95 | ||
|
Available to order. Add to View Price |
|||
|
#27
MAIN JET 165 KEIHIN
54531623165
|
$15.17 | ||
|
Available to order. Add to View Price |
|||
|
#27
MAIN JET 168 KEIHIN
54531623168
|
$15.39 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
MAIN JET 170 KEIHIN
54531623170
|
$15.06 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
MAIN JET 172 KEIHIN
54531623172
|
$15.06 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
MAIN JET 175 KEIHIN
54531623175
|
$15.06 | ||
|
Available to order. Add to View Price |
|||
|
#27
MAIN JET 178 KEIHIN
54531623178
|
$16.05 | ||
|
Available to order. Add to View Price |
|||
|
#27
MAIN JET 180 KEIHIN
54531623180
|
$14.95 | ||
|
Available to order. Add to View Price |
|||
|
#28
IDLE JET 38 KEIHIN
54531607038
|
$14.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
IDLE JET 40 KEIHIN
54531607040
|
$14.84 | ||
|
Available to order. Add to View Price |
|||
|
#28
IDLE JET 42 KEIHIN
54531607042
|
$14.95 | ||
|
Available to order. Add to View Price |
|||
|
#29
STARTER JET 85
59031051085
|
$19.68 | ||
|
Available to order. Add to View Price |
|||
|
#30
IDLE AIR JET 100 KEIHIN
57331107100
|
$17.37 | ||
|
Available to order. Add to View Price |
|||
|
#32
ADJUST SCREW CPL. FCR-MX
59031017100
|
$23.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
BUFFER PLATE
57331085000
|
$14.51 | ||
|
Available to order. Add to View Price |
|||
|
#39
FLOAT CPL.
57331009000
|
$70.17 | ||
|
Available to order. Add to View Price |
|||
|
#40
ARM PIN FLOAT
57331008000
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
HOT-STARTER VALVE
77031075000
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
FLOAT NEEDLE
54631220000
|
$36.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#43
CLAMP
54531621000
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#47
COVER ACCELERATOR PUMP
57331060000
|
$31.78 | ||
|
Available to order. Add to View Price |
|||
|
#49
FLOAT CHAMBER CPL. 08
77031011000
Superseded by 78031011000
|
$209.98 | ||
|
Available to order. Add to View Price |
|||
|
#50
JET POWER JET CLOSED KEIHIN
54631085000
|
$12.80 | ||
|
Available to order. Add to View Price |
|||
|
#50
JET POWER JET 50 KEIHIN
54631085050
|
$16.82 | ||
|
Available to order. Add to View Price |
|||
|
#50
JET POWER JET 60 KEIHIN
54631085060
|
$16.60 | ||
|
Available to order. Add to View Price |
|||
|
#50
JET POWER JET 70 KEIHIN
54631085070
|
$15.61 | ||
|
Available to order. Add to View Price |
|||
|
#53
COIL SPRING
59031059000
|
$8.68 | ||
|
Available to order. Add to View Price |
|||
|
#55
STARTER VALVE SHORT CPL.
77031048000
|
$94.48 | ||
|
Available to order. Add to View Price |
|||
|
#56
BREATH.HOSE FCR-MX KEIHIN CPL.
57331098000
|
$126.49 | ||
|
Available to order. Add to View Price |
|||
|
#60
FLAT HEAD SCREW DIN0965-M 5X10
0965050103
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#61
PLUG M 18X1
54531699000
|
$23.64 | ||
|
Available to order. Add to View Price |
|||
|
#64
INTERMEDIATE LEVER CPL.
57331062000
|
$39.15 | ||
|
Available to order. Add to View Price |
|||
|
#65
LINK LEVER
57331056000
|
$9.56 | ||
|
Available to order. Add to View Price |
|||
|
#66
SPRING LINK LEVER
57331059000
|
$11.43 | ||
|
Available to order. Add to View Price |
|||
|
#67
SPRING INTERMEDIATE LEVER
57331159000
|
$12.75 | ||
|
Available to order. Add to View Price |
|||
|
#68
CARBURETOR COVER 06
57331038200
|
$9.56 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#69
WASHER LINK LEVER
57331087000
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#70
E-CLIP
57331084000
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#72
ROD ACCELERATOR PUMP
57331061000
|
$31.45 | ||
|
Available to order. Add to View Price |
|||
|
#83
HOSE CONNECTOR CPL.
59031013044
|
$76.88 | ||
|
Available to order. Add to View Price |
|||
|
#90
STOP SCREW CPL. FCR-MX
57331025000
|
$66.65 | ||
|
Available to order. Add to View Price |
|||
|
#96
TPS-SENSOR FCRMX 190MM 2006
59031077200
|
$170.16 | ||
|
Available to order. Add to View Price |
|||
|
#99
GASKET SET FCR-MX KEIHIN
57331099000
|
$140.79 | ||
|
Available to order. Add to View Price |
|||
