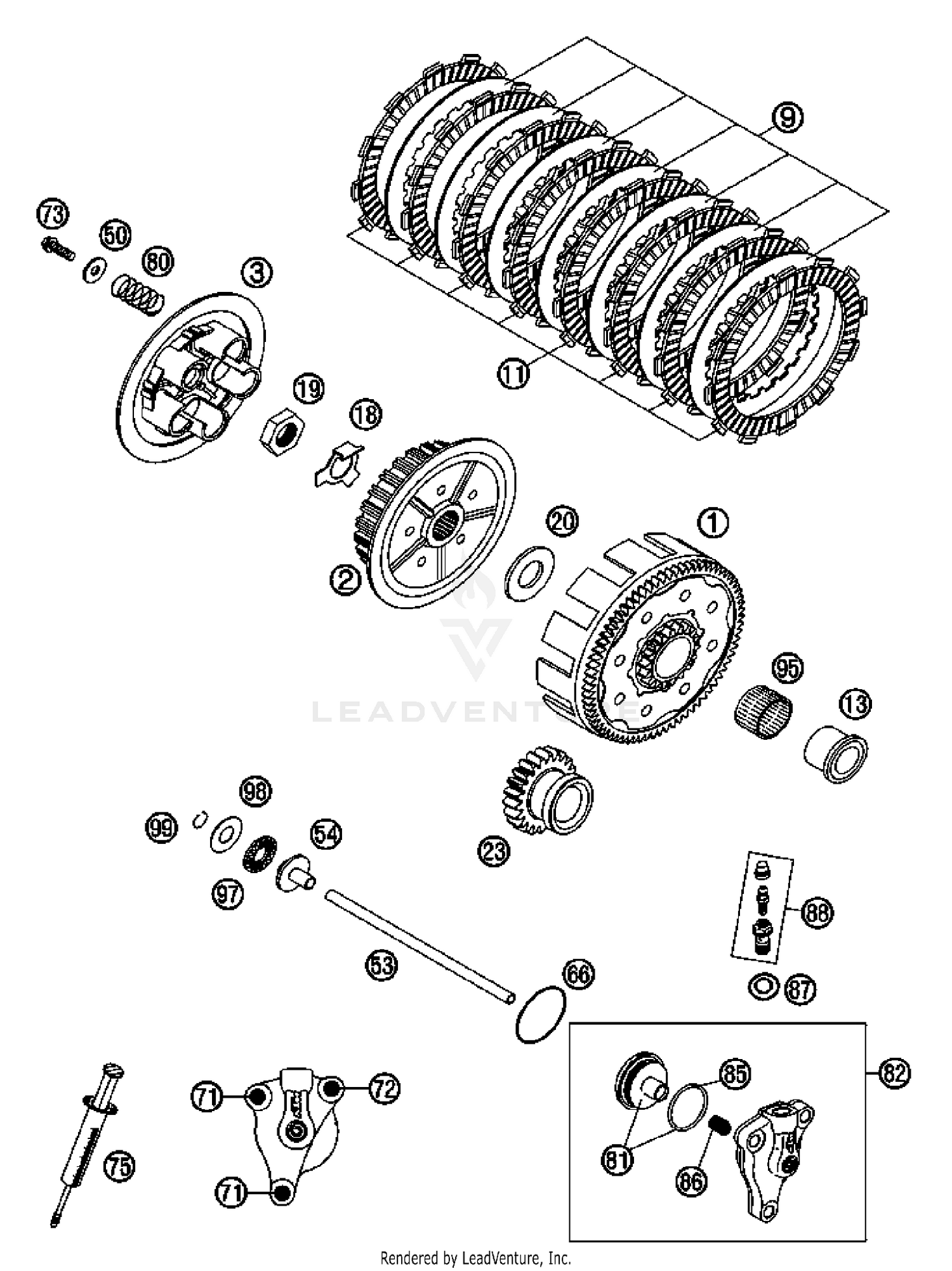

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
OUTER CLUTCH CPL. 05
77032001000
|
$489.56 | ||
|
Available to order. Add to View Price |
|||
|
#2
INNER CLUTCH HUB
77032002000
Superseded by 77032002100
|
$152.67 | ||
|
Available to order. Add to View Price |
|||
|
#3
PRESSURE PLATE
77032003000
Superseded by 77032003100
|
$123.63 | ||
|
Available to order. Add to View Price |
|||
|
#9
INTERMEDI. DISC STEEL 05
77032010000
|
$13.85 | ||
|
Available to order. Add to View Price |
|||
|
#11
LINING DISC 3,0MM 05
77032011000
|
$42.67 | ||
|
Available to order. Add to View Price |
|||
|
#13
INNER RING 20X26X25,9 '98
50332013000
|
$35.52 | ||
|
Available to order. Add to View Price |
|||
|
#18
SHEET METAL LOCK 1,5MM '98
50332018000
|
$7.36 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
HEXAGON NUT DIN0936-M18X1,5 R.
0936181505
|
$9.12 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
STOP DISK 20X39,6X3 '98
50332020000
|
$19.24 | ||
|
Available to order. Add to View Price |
|||
|
#23
PRIMARY GEAR 22T.
77032000122
Superseded by 77132000022
|
$126.38 | ||
|
Available to order. Add to View Price |
|||
|
#50
WASHER 6,2X18X2
50232050000
|
$6.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#53
PUSH ROD 05
77032054000
|
$12.75 | ||
|
Available to order. Add to View Price |
|||
|
#54
PRESSURE PIECE CPL.
50332054051
Superseded by 50332154051
|
$31.12 | ||
|
Available to order. Add to View Price |
|||
|
#66
O-RING 30,00X1,50 NBR 70
0770300015
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#71
HH collar screw M6x20 TX30
0015060203
Superseded by 0025060206
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#72
HH collar screw M6x35 TX30
0015060353
Superseded by 0025060356
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#73
HH collar screw M6x25 TX30
0015060253
Superseded by 0025060256
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#75
VENT INJEKTION HYDR. CLUTCH
50329050000
|
$63.24 | ||
|
Available to order. Add to View Price |
|||
|
#80
CLUTCH SPRING
77032005000
Superseded by 77032005100
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#81
PISTON CPL.
54832066000
|
$80.51 | ||
|
Available to order. Add to View Price |
|||
|
#82
OUTPUT CYLINDER CPL. 06
54832061044
|
$161.69 | ||
|
Available to order. Add to View Price |
|||
|
#85
O-RING
54832067000
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#86
PRESSURE SPRING
54832069000
|
$14.18 | ||
|
Available to order. Add to View Price |
|||
|
#87
CU-SEAL RING DIN7603-10X16X1
42013226000
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#88
BLEEDER SCREW CPL. 05
54813020000
Superseded by 62513020000
|
$32.33 | ||
|
Available to order. Add to View Price |
|||
|
#95
NEEDLE BEARING K26X30X22ZW.KSE
56532095000
|
$28.04 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#97
AXIAL NEEDLE BEARING AXK 1226
54637097200
|
$11.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#98
AXIAL WASHER AS1226 12X26X1
54637098200
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#99
CIRCLIP DIN7993-RW12
0993012000
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
