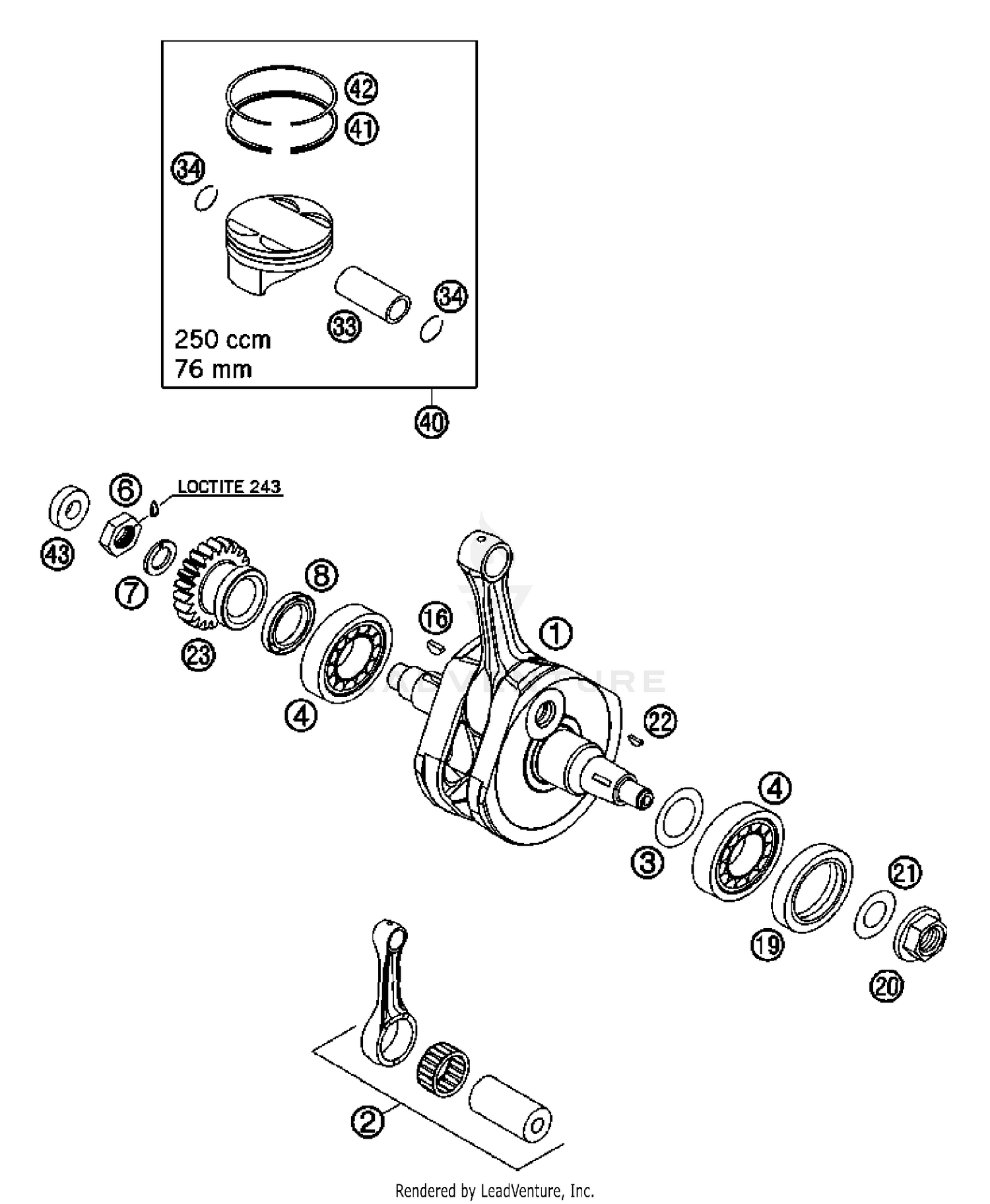

Crankshaft, Piston Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKSHAFT SX-F
77030018100
Superseded by 77030018400
|
$918.21 | ||
|
Available to order. Add to View Price |
|||
|
#2
CONNECT. ROD REPAIR SET
77030015144
Superseded by 77030015344
|
$597.66 | ||
|
Available to order. Add to View Price |
|||
|
#3
THRUST WASHER 30,5X45X0,10
56030081000
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
THRUST WASHER 30,7X47X0,15
56030081100
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
THRUST WASHER 30,5X45X0,30
56030081200
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CYL.ROLLER BEAR.NJ206 ET2XCS46
50330082000
|
$97.89 | ||
|
Available to order. Add to View Price |
|||
|
#6
HEX.NUT L/SH M18X1,5
54630029000
|
$12.53 | ||
|
Available to order. Add to View Price |
|||
|
#7
LOCK WASHER VSK 18
58132072000
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SH.SEAL RING 35X42X4 B10FNIB
0760354240
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#16
WOODRUFF KEY 5X6,5 HARDED
6946005
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SH.SEAL RING 30X47X7 BSL VITON
0760304772
|
$23.97 | ||
|
Available to order. Add to View Price |
|||
|
#20
Collar nut, M12x1, right
49030021000
Superseded by 49030021100
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
SPRING WASHER DIN0137-B12
0137120000
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
WOODRUFF KEY DIN6888-3X5X13
0888030050
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
PRIMARY GEAR 22T.
77032000122
Superseded by 77132000022
|
$126.38 | ||
|
Available to order. Add to View Price |
|||
|
#33
PISTON PIN BOLT D=16mm 05
77030033000
|
$26.24 | ||
|
Available to order. Add to View Price |
|||
|
#34
CIRCLIP 05
77030074000
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
PISTON CPL. D=76MM
77030007000 I
Superseded by 77130007100 I
|
$454.29 | ||
|
Available to order. Add to View Price |
|||
|
#40
PISTON CPL. D=76MM
77030007000 II
Superseded by 77130007100 II
|
$467.05 | ||
|
Available to order. Add to View Price |
|||
|
#41
OIL SCRAPER RING
77030032000
Superseded by 77130032000
|
$62.03 | ||
|
Available to order. Add to View Price |
|||
|
#42
COMPRESSION RING
77030030000
Superseded by 77030030200
|
$57.74 | ||
|
Available to order. Add to View Price |
|||
|
#43
radial shaft seal 14x24x6 B
0760142460
|
$10.88 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
