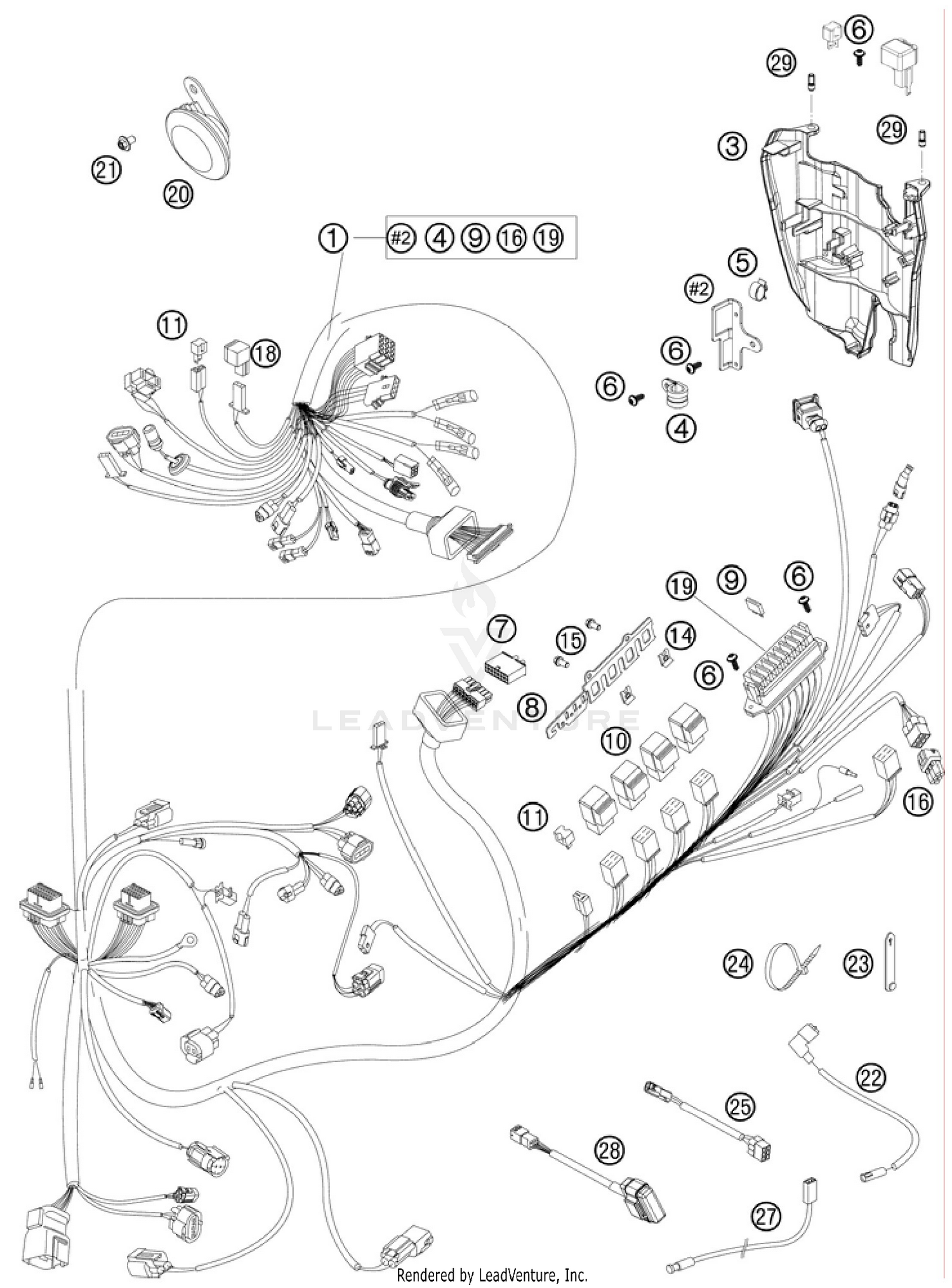

Wiring Harness Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MAIN WIRING HARNESS 990 SM 08
62611075000
|
$699.08 | ||
|
Available to order. Add to View Price |
|||
|
#3
BRACKET FOR PLUGS CPL. 08
62608032000
|
$15.11 | ||
|
Available to order. Add to View Price |
|||
|
#4
CLAMP RSGU 18/15 03
59007439000
|
$6.81 | ||
|
Available to order. Add to View Price |
|||
|
#5
WIRING HOLDER 16MM
57013072100
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
EJOT PT screw K50x12
0081050121
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
DUMMY PLUG ALARM SYSTEM 05
61011075020
|
$17.26 | ||
|
Available to order. Add to View Price |
|||
|
#8
BRACKET RELAY 05
62511057050
|
$14.69 | ||
|
Available to order. Add to View Price |
|||
|
#9
FUSE 10 A 2000
58011109110
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
FUSE 15 A
58011109115
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
RELAY CM1A-R-12V-H80 07
61111057000
|
$19.79 | ||
|
Available to order. Add to View Price |
|||
|
#11
DIODE S3H-15 97
58411096100
|
$11.54 | ||
|
Available to order. Add to View Price |
|||
|
#14
RANGE CHANGE METAL NUT M5
54603048200
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#15
HH collar screw M5x12 TX30
0025050126
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
SPARE CONNECTOR BH 6-PINS
000700000BH
|
$26.06 | ||
|
Available to order. Add to View Price |
|||
|
#18
FLASHER UNIT 97
44611207200
|
$58.62 | ||
|
Available to order. Add to View Price |
|||
|
#19
FUSE-BOX COVER
58511075510
|
$14.84 | ||
|
Available to order. Add to View Price |
|||
|
#20
DC HORN 05
62511060000
|
$36.29 | ||
|
Available to order. Add to View Price |
|||
|
#21
HH collar screw M6x15 TX30
0024060156
|
$3.99 | ||
|
Unavailable |
|||
|
#22
OIL-PRESSURE SWITCH CABLE 03
60011092000
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
RUBBER CABLE TIE 45MM 03
60011093045
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
RUBBER CABLE TIE 75MM 03
60011093075
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#24
CABLE TIE 140/2,5MM BLACK
44011076140
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
CABLE TIE 200/3,6MM BLACK
44011076200
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
CABLE FOR ROLLOVER SENSOR 08
62611047000
|
$19.90 | ||
|
Available to order. Add to View Price |
|||
|
#27
TEMPERATURE SENSOR
61111018000
Superseded by 61111018100
|
$37.17 | ||
|
Available to order. Add to View Price |
|||
|
#28
STARTER INTERLOCK
61111020000
|
$115.16 | ||
|
Available to order. Add to View Price |
|||
|
#29
STYLUSES FOR COVER
62608032050
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
