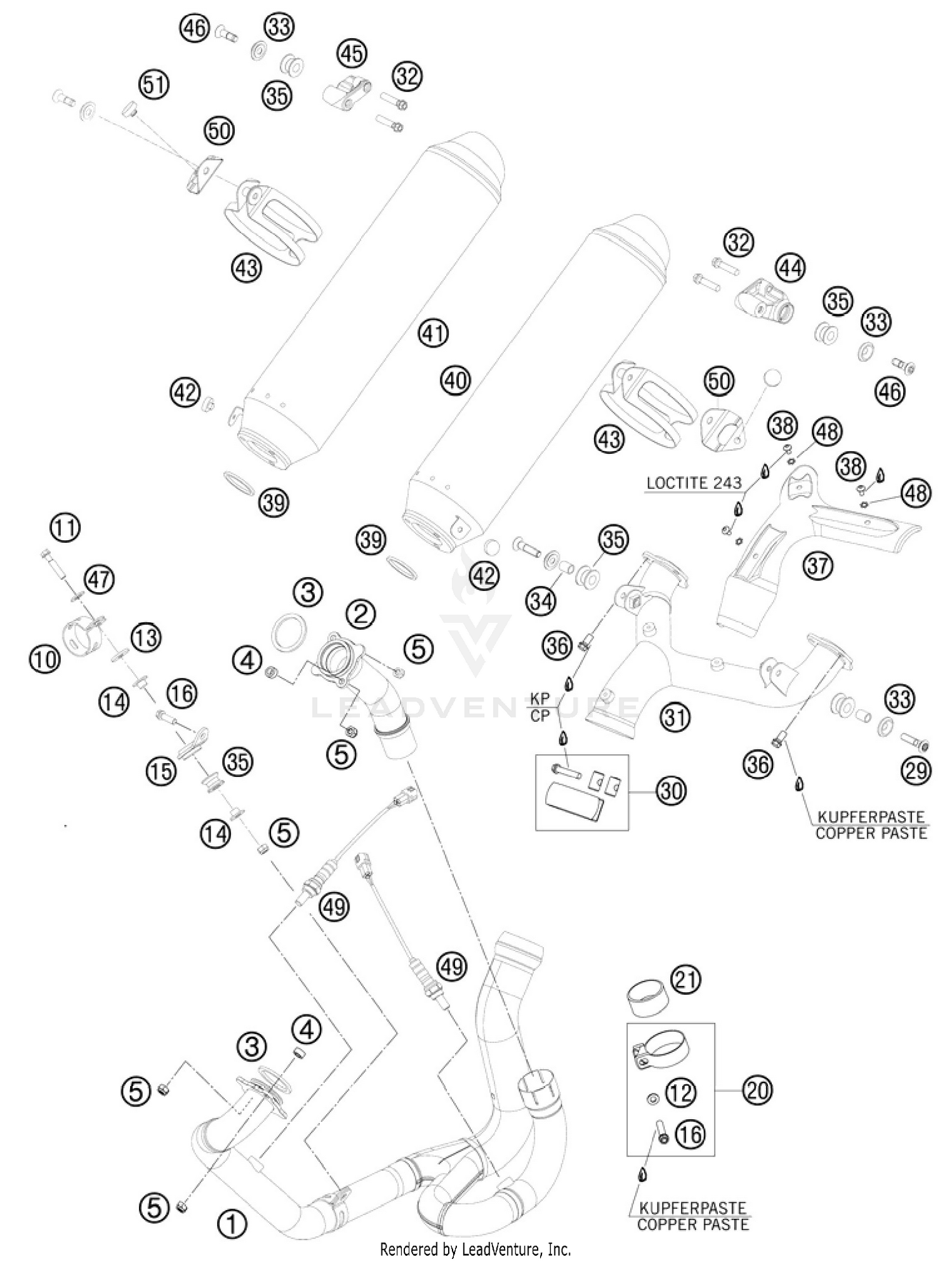

Exhaust System Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
EXHAUST MANIFOLD
62605007000
|
$961.79 | ||
|
Available to order. Add to View Price |
|||
|
#2
EXHAUST PIPE REAR 07
61105008000
|
$256.19 | ||
|
Available to order. Add to View Price |
|||
|
#3
EXHAUST GASKET 05
61005005000
|
$11.76 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
SPACER BUSH. 8,5X15X7,5 05
61005009000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#5
self-locking nut M8 Cu
51010086100
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLAMP EXHAUST PIPE 05
61005007049
|
$13.53 | ||
|
Available to order. Add to View Price |
|||
|
#11
HH COLLAR SCREW M8X40 TX40
0025080406
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#12
washer DIN 125 A -8.4
0125080003
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
INSOLATE WASHER 8,5X28X3
51005067000
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
collar bushing 8.5x12x23.5x10
58405050065
|
$6.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
EXHAUST PIPE BRACKET FRONT 07
62505015150
|
$18.26 | ||
|
Available to order. Add to View Price |
|||
|
#16
HH collar screw M8x35 TX40
0025080356
|
$4.83 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
EXHAUST CLAMP 52,2MM 07
61105051000
|
$28.55 | ||
|
Available to order. Add to View Price |
|||
|
#21
Graphite ring 45X50X25
58405005001
|
$19.90 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
COUNTERSUNK SCREW ISA45 M8X35
0019080356
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
EXHAUST CLAMP CPL. 05
61005052000
|
$33.43 | ||
|
Available to order. Add to View Price |
|||
|
#31
DISTRIBUTOR TUBE 05
62505048100
|
$389.12 | ||
|
Available to order. Add to View Price |
|||
|
#32
HH collar screw M8x30
0025080306
|
$3.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
SPECIAL WASHER 8X24 ALU H=4,2
62603061000
|
$6.81 | ||
|
Available to order. Add to View Price |
|||
|
#34
SPACER BUSH. 8,5X12X18MM 05
62505069000
|
$8.24 | ||
|
Available to order. Add to View Price |
|||
|
#35
damp. component silicone grey
54305068100
|
$9.78 | ||
|
Available to order. Add to View Price |
|||
|
#36
HH COLLAR SCREW M8X16 TX40
0025080166
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
THERMAL SHIELD 05
62505047000
|
$83.57 | ||
|
Available to order. Add to View Price |
|||
|
#38
SCREW TORX M5X10 05
58605083010
|
$2.99 | ||
|
Unavailable |
|||
|
#39
EXHAUST GASKET 03
60005005002
|
$7.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#40
EXHAUST SILENCER L/S USA
62605182000
|
$1,304.10 | ||
|
Available to order. Add to View Price |
|||
|
#41
EXHAUST SILENCER R/S USA
62605183000
|
$1,304.10 | ||
|
Available to order. Add to View Price |
|||
|
#42
RUBBER BUFFER
54308042000
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
CLAMP FOR SILENCER CPL. 03
60005095000
|
$42.19 | ||
|
Available to order. Add to View Price |
|||
|
#44
SILENCER/HANDLE HOLDER L/S 07
6000508500001S
|
$48.17 | ||
|
Available to order. Add to View Price |
|||
|
#45
SILENCER/HANDLE HOLDER R/S 07
6000508600001S
|
$48.83 | ||
|
Available to order. Add to View Price |
|||
|
#46
COUNTER-SUNK SCREW ISA45 M8X30
0019080306S
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#47
WASHER DIN9021-A 8,4
0021080003
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#48
TOOTH LOCK WASHER DIN6797-J
0797050000
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#49
LAMBDA SENSOR 05
61041090000
|
$229.78 | ||
|
Available to order. Add to View Price |
|||
|
#50
HEAT PROTECTION CLAMP
62605190060
|
$9.86 | ||
|
Available to order. Add to View Price |
|||
|
#51
RUBBER BUFFER
54308042000
|
$3.99 | ||
|
Unavailable |
|||
