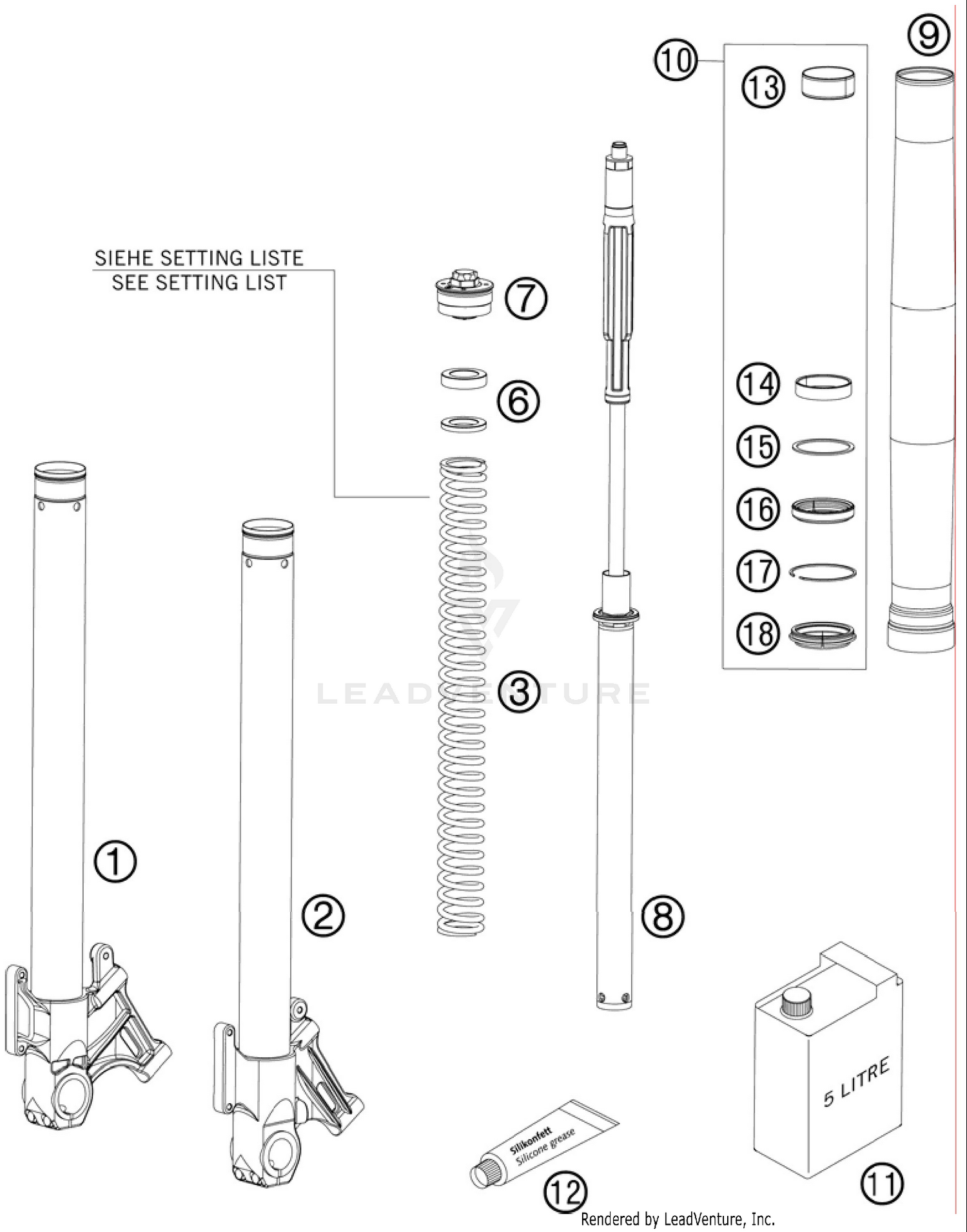

Front Fork Disassambled Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
AXLE CLAMP R/S CPL.
48600685S3
|
|||
|
Unavailable |
|||
|
#2
AXLE CLAMP L/S CPL.
48600686S3
|
|||
|
Unavailable |
|||
|
#3
SPRING D43,7 L375 7,5N/MM SET
91410076S
|
$157.70 | ||
|
Available to order. Add to View Price |
|||
|
#6
Preload bush 42x26,5x2,5
48600036
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#6
Preload bush 26,5x42x5
48600037
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#6
Preload bush 26,5x42x1,5
48600053
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#7
PRE-LOAD ADJ. CPL. M51X1,5 05
48600431S
|
$150.58 | ||
|
Available to order. Add to View Price |
|||
|
#8
CARTRIDGE CPL. 990 SM-R
48600839S
|
|||
|
Unavailable |
|||
|
#9
Fork outer tube 49,13x610 dt54 db60 bla
48600712
Superseded by 48601080
|
$383.72 | ||
|
Available to order. Add to View Price |
|||
|
#10
Repair kit gasket 48mm (4860 MXMA)
R14017
Superseded by RP10045T
|
$124.95 | ||
|
Available to order. Add to View Price |
|||
|
#11
Fork Fluid Viscosity 4.0 5L
48600765S1
Superseded by 48601166S1
|
$175.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Fuchs grease IPR (250g)
T511
Superseded by T14034
|
$40.69 | ||
|
Available to order. Add to View Price |
|||
|
#13
Guide bushing 47x49x20
48600428
Superseded by 48601008
|
$14.18 | ||
|
Available to order. Add to View Price |
|||
|
#14
Guide bushing 48x52x12
48600429
Superseded by 48601009
|
$14.18 | ||
|
Available to order. Add to View Price |
|||
|
#15
Supportwasher 50x57,6x1,5
48600013
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#16
Shaft seal SKF 48x58x11,4 black
48600399
Superseded by S604800001000C1
|
$16.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
Snap ring SB58x1,5 acc drawing
48600070
|
$2.41 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
Dirtscarper SKF 48mm black
48600816
Superseded by S604800000000C1
|
$15.06 | ||
|
Available to order. Add to View Price |
|||
