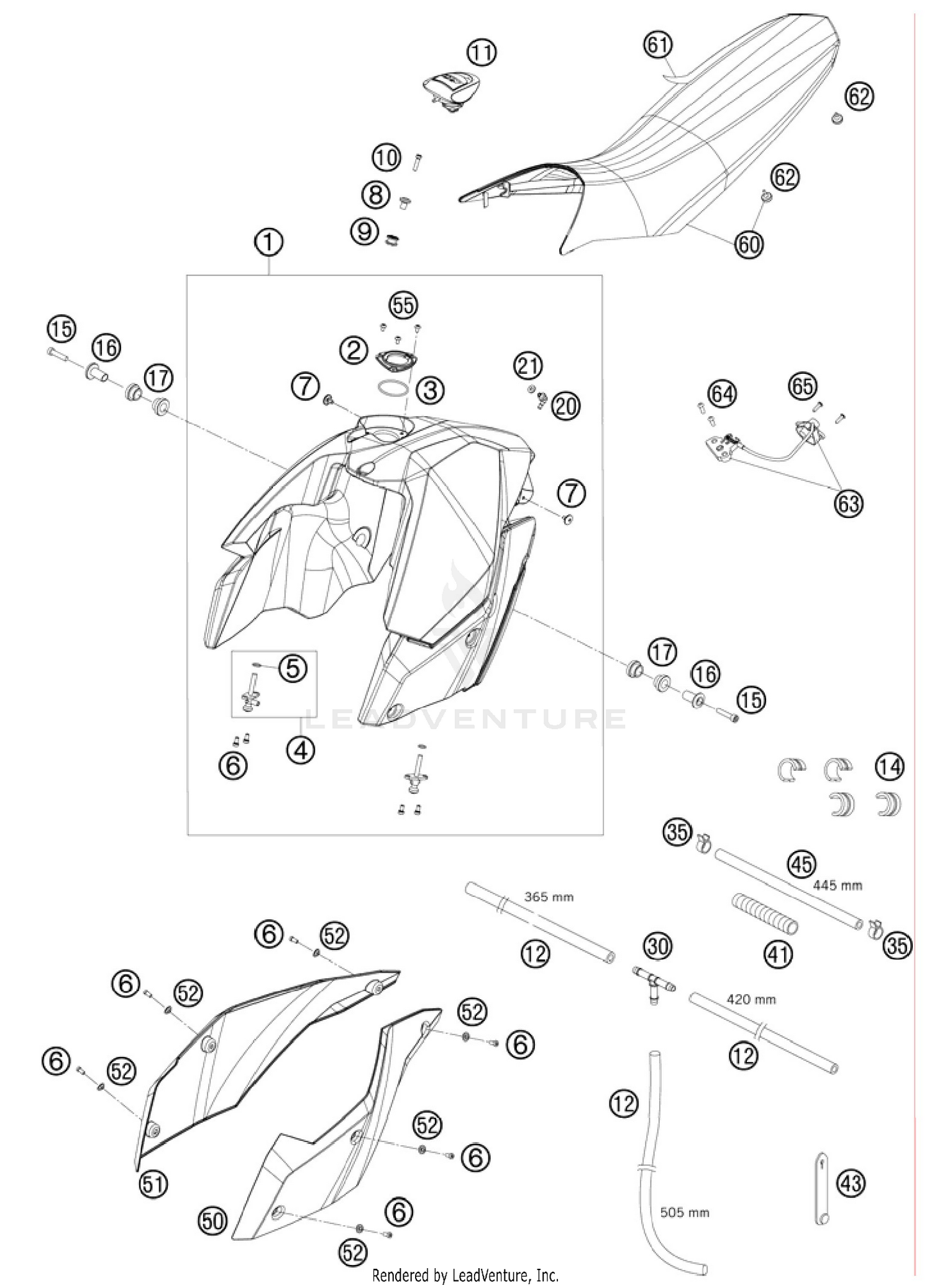

Tank, Seat, Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK CPL. WHITE
6260711304420A
|
$2,027.73 | ||
|
Available to order. Add to View Price |
|||
|
#2
FLANGE TANK CAP
76507008050
Superseded by 76507008150
|
$11.65 | ||
|
Available to order. Add to View Price |
|||
|
#3
O-RING 50,00X3,00 VITON
0770050030
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#4
FUEL COCK CPL.
58507003000
Superseded by 58507003200
|
$31.23 | ||
|
Available to order. Add to View Price |
|||
|
#5
O-RING 1,78x10,82x14,38 2-013
0770020130
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHCS ISO 14580 M6x12
014580060126
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Seat screw M6x11.5 ISA30
58407011100
Superseded by 0900000601200
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING SLEEVE F. TANK 09
62607060000
|
$11.43 | ||
|
Available to order. Add to View Price |
|||
|
#9
rubber grommet, tank mounting
69007027000
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
CYL. SCREW DIN14580 M 6X25
014580060256
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
TANK PLUG
58407008300
|
$337.91 | ||
|
Available to order. Add to View Price |
|||
|
#12
HOSE 5,4X9,4 NBR, METER
60007026001
Superseded by 60007126001
|
$8.35 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPACER FUEL TANK 05
61007014000
|
$7.80 | ||
|
Available to order. Add to View Price |
|||
|
#15
SHCS DIN 912 M8x40
0912080403
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
Bearing sleeve, external
61007060000
Superseded by 6100716000001
|
$11.65 | ||
|
Available to order. Add to View Price |
|||
|
#17
collar bushing, front tank holder
61007065000
|
$9.23 | ||
|
Available to order. Add to View Price |
|||
|
#20
CONNECT.PIECE F.OVERFLOW M7 03
60007024000
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
GASKET FOR CONNECTING PIECE 03
60007024050
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
T-CONNECTOR TS-6 03
60015022000
|
$7.03 | ||
|
Available to order. Add to View Price |
|||
|
#35
CLAMP YDNAC 10128 12MM
58031005000
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#41
THERMAL PROTECTION L=105MM 05
62507016050
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#43
RUBBER CABLE TIE 45MM 03
60011093045
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
HOSE 6X13 L=445 MM 08
60007216445
|
$26.72 | ||
|
Available to order. Add to View Price |
|||
|
#50
SPOILER L/S BLACK BRILL.
6260815000030A
|
$354.30 | ||
|
Available to order. Add to View Price |
|||
|
#51
SPOILER R/S BLACK BRILL.
6260815100030A
|
$354.30 | ||
|
Available to order. Add to View Price |
|||
|
#52
SPECIAL WASHER D=16,5MM 03
60008045000
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#55
SCREW TORX M5X10 05
58605083010
|
$2.99 | ||
|
Unavailable |
|||
|
#60
SEAT BLACK/ORANGE
6260704000004
|
$211.88 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#61
SEAT COVER BLACK/ORANGE
6260704005004
|
$70.94 | ||
|
Available to order. Add to View Price |
|||
|
#62
DISTANCE RUBBER AIRBOX 03
60006001021
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#63
SEAT LOCK
62607050000
|
|||
|
Unavailable |
|||
|
#64
BHCS ISO 7380 M6X18
0738060181
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#65
SCREW FOR PLASTIC K50X18 T20
0081050181
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
