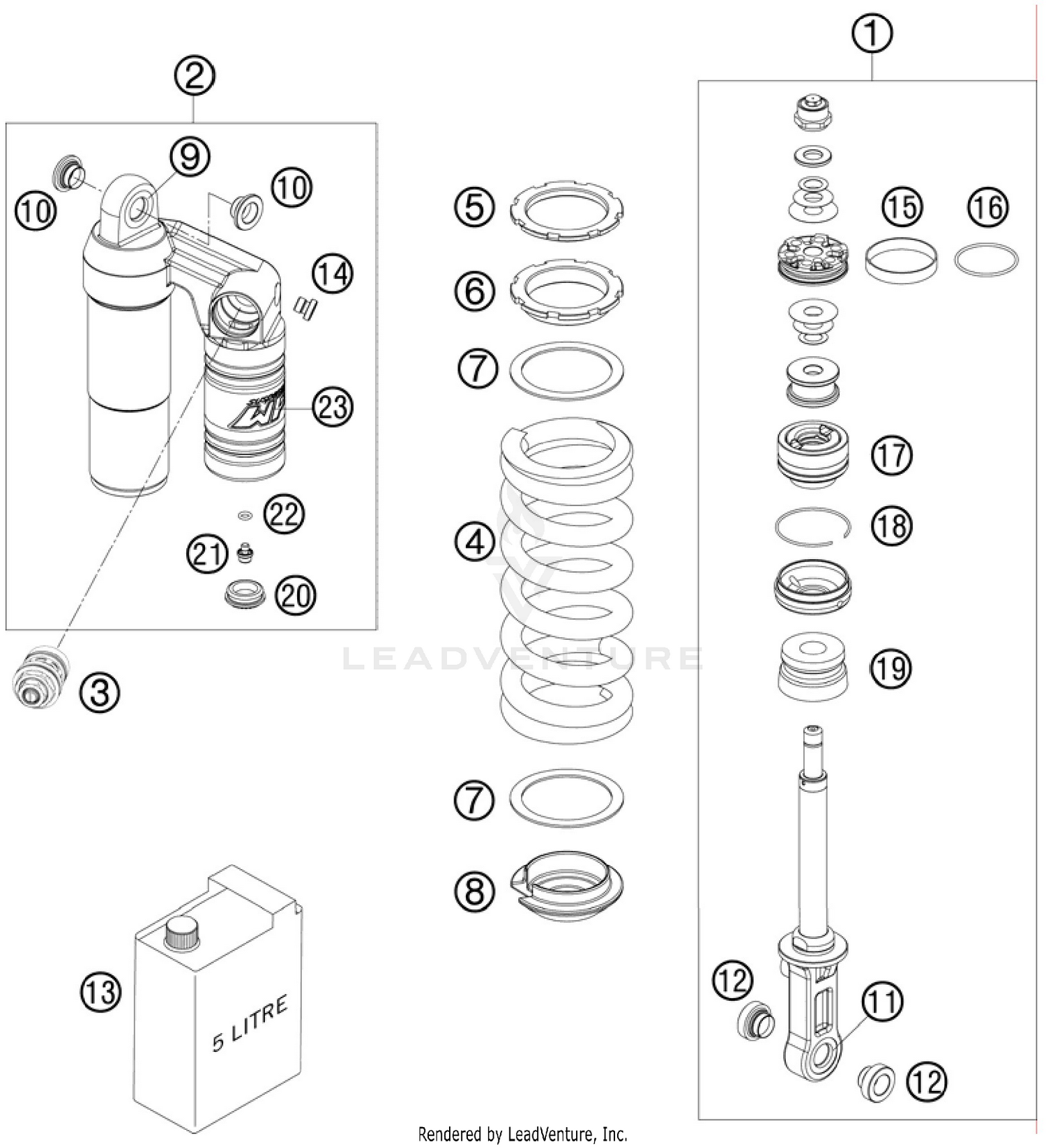

Shock Absorber Disassembled Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHOCK ABS. BOTTOM 990 SM-R
46180654SA9
|
|||
|
Unavailable |
|||
|
#2
SHOCK ABSORBER CASE CPL.
46180834SA
|
|||
|
Unavailable |
|||
|
#3
Compression cpl.
50180213S6
|
$401.61 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING 140-200(59)D13,5 ORANGE
91010301S
|
$190.56 | ||
|
Available to order. Add to View Price |
|||
|
#5
Lock nut shock M54x1,5
46180766
|
$31.56 | ||
|
Available to order. Add to View Price |
|||
|
#6
Adjustment nut shock M54x1,5
46180765
|
$19.83 | ||
|
Available to order. Add to View Price |
|||
|
#7
Washer 58,6x73,6x1,5
50180410
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#8
Spring retainer 28x73x15 black
46180396
Superseded by 46181299
|
$72.26 | ||
|
Available to order. Add to View Price |
|||
|
#9
Ball joint bearing kit top 12mm
R12012
Superseded by R12012T
|
$42.01 | ||
|
Available to order. Add to View Price |
|||
|
#10
Bearing bush 14x15/18/24,5x10,45
50180366
|
$16.79 | ||
|
Available to order. Add to View Price |
|||
|
#11
Ball joint bearing kit top 12mm
R15009
Superseded by R12012T
|
$42.01 | ||
|
Unavailable |
|||
|
#12
Bearing bush 14x15/23,5x14,45 cpl.
46180362
Superseded by 46181307E
|
$15.00 | ||
|
Available to order. Add to View Price |
|||
|
#13
SHOCK ABSORBER FLUID 5 LT
50180342S1
Superseded by 50180751S1
|
$175.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
HS cylinder-head screw R1/8 l8
50180095
|
$2.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
Piston ring 44x46x8
46810361
Superseded by 46812011
|
$4.72 | ||
|
Available to order. Add to View Price |
|||
|
#16
O-ring 37x,82x1,78 Viton70 green
46810035
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#17
Sealholder 46x28 cpl.
46180669S
Superseded by S614620000S0100
|
$83.81 | ||
|
Available to order. Add to View Price |
|||
|
#18
Round-wire snap ring 49x1,8
46810010
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#19
Rubber pad 17,2x45,2x30 black
46180365
|
$66.87 | ||
|
Available to order. Add to View Price |
|||
|
#20
Rubber cap do not open 22x5,5 NBR
46811208
|
$3.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
PLUG SCREW M5X6 CPL.
36120151
Superseded by 36120151ST
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#22
O-ring 5,28x1,78 HNBR70 red
46810893
Superseded by S208600003000FB
|
$0.76 | ||
|
Available to order. Add to View Price |
|||
|
#23
Sticker WP clear 35x55
52000044
Superseded by 52000086
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
